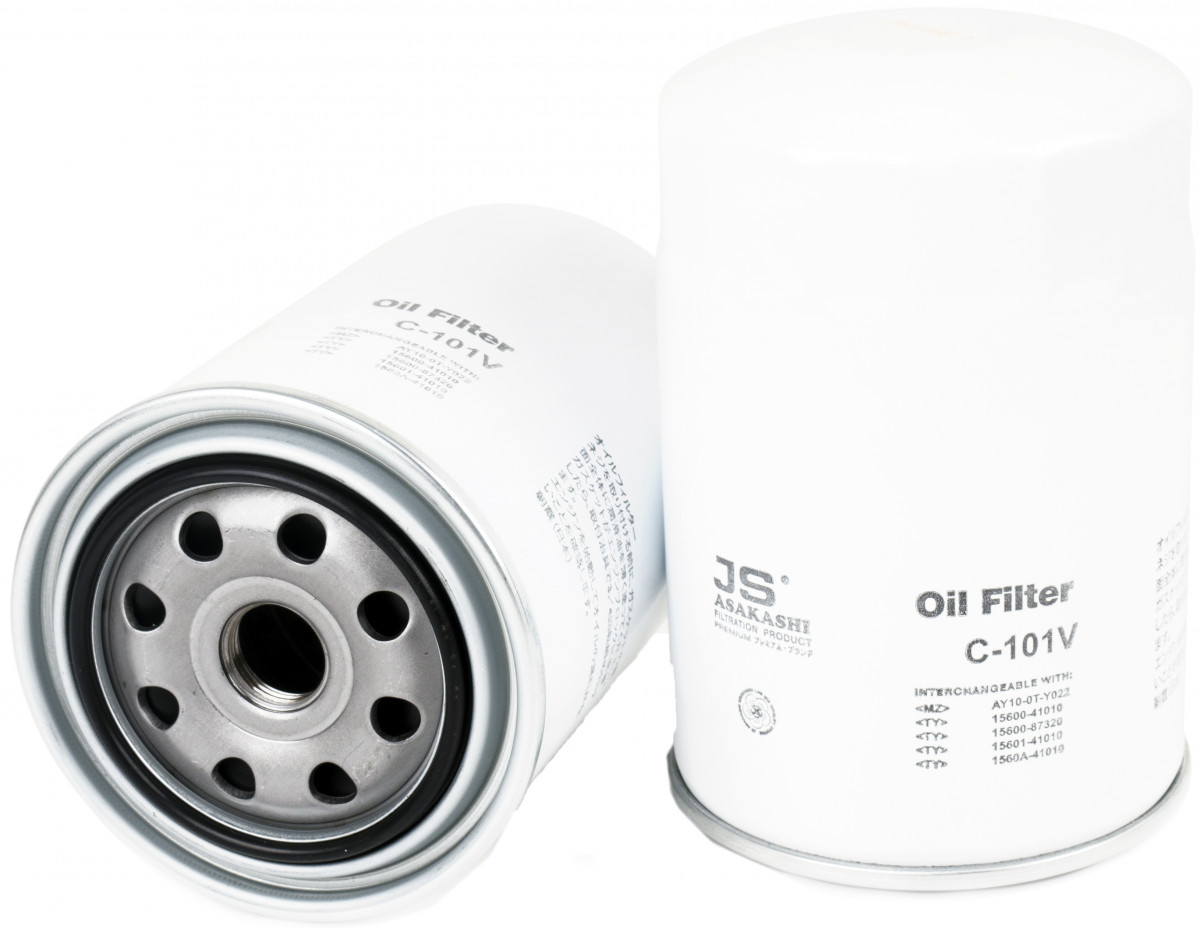

OIL FILTER (SPIN-ON) » C101V

Feedback information
C101V

Specification

Height
133
Ø Out
93
Thread
3/4"x16 UNF
Structure Material
Metal
O-Ring gasket
65x72 rnd
Valves
1.0 bar/1
type
Full Flow

Cross reference

FORD
AFL 1 MC
MAZDA
AY10-0T-Y018
MAZDA
AY10-0T-Y022
TOYOTA
15600-41010
TOYOTA
15600-87320
TOYOTA
15601-41010
TOYOTA
15601-78101-71
TOYOTA
1560A-41010
TOYOTA
1560A-87320
TOYOTA
78520-30200-71
TOYOTA
90080-91158
TOYOTA
90915-TD004
TOYOTA
V91110012
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

DAIHATSU   »   Delta

09.84~05.95 3000 B V98 C101V A136J FC175J
09.84~05.95 3000 B V99 C101V A136J FC175J
09.84~08.88 3400 13B V75 C101V A136J FC175J
09.84~08.88 3400 13B V76 C101V A136J FC175J
09.84~08.88 3400 13B V78 C101V A136J FC175J
09.84~08.88 3400 13B V79 C101V A136J FC175J
05.95~05.99 3400 3B BU105N C101V A136J FC158J
12.05~ 3700 14B V116LHU C101V A136J FC175J
12.05~ 3700 14B V118L LHD C101V A1526 FC175J

FORD   »   Falcon

09.02~09.05 4000 BARRA 182 BA C101V A0477 FS613J AC0210 JT154K

FORD   »   Territory

01.04~12.11 4000   TX C101VC417J A9211A0477 FS613J AC0259 JT154KJT358K

HINO   »   BUS

01.97~07.99 3400 3B BB40M C101V A136J FC158J

HINO   »   RANGER

10.79~05.95 3000 3B HV# C101V A136J FC175J
06.95~05.99 3400 3B BU100 C101V A147J FC158J

TOYOTA   »   4 Runner

01.89~12.95 2800 3L LN130L C101V A154J SF2102PM1001
08.89~11.95 2800 3L LN130R C101V A154J FC158JPM1001SF2102

TOYOTA   »   Blizzard

03.82~05.90 2200 2LT LD21G C115JC101V A154J FC158J
05.84~11.89 2400 2L LD20 C101VC115J A154J FC158JPM1001

TOYOTA   »   Century

10.82~01.97 4000 5V-EU VG40 C101VC114T A141J FS6002U
09.90~01.97 4000 5V-EU VG45 C114TC101V A141J FS6002U

TOYOTA   »   Chaser

08.84~08.88 2400 2L LX70 C115JC101V A149J FC158J
08.84~08.88 2400 2L LX70Y C115JC101V A149J FC158J
08.84~08.88 2400 2L-T LX70 C115JC101V A149J FC158J

TOYOTA   »   Coaster

01.83~08.88 3400 13B BB22 C101V A136J FC158J
02.83~01.93 3400 3B BB21 C101V A136J FC158J
08.84~01.93 3400 3B BB26V C101V A136J FC158J
02.83~01.93 3400 3B BB31 C101V A136J FC158J
08.84~08.88 3400 3B BB36V C101V A136J FC158J
01.93~07.99 3400 3B BB40 C101V A136J SF2103FC158JPM1006
05.95~01.96 3400 3B BB41 C101V A136J FC158J
01.93~07.99 3400 3B BB46V C101V A136J FC158JSF2103

TOYOTA   »   Cresta

08.84~08.88 2400 2L LX70 C115JC101V A149J FC158J
08.84~08.88 2400 2L LX70Y C101VC115J A149J FC158J
08.84~08.88 2400 2L LX76V C101V A149J FC158J
08.84~08.88 2400 2L-T LX70 C115JC101V A149J FC158J

TOYOTA   »   Crown

08.83~08.87 2400 2L LS120 C101V A149J FC158J
08.83~08.87 2400 2L LS126V C101V A149J FC158J
09.87~09.94 2400 2L LS136V C101V A167J FC158J
08.83~08.87 2400 2L-T LS120G C101V A149J FC158J
08.84~08.87 2400 2L-THE LS120G C101V A149J FC158J

TOYOTA   »   Dyna

08.87~05.95 2400 2L LY50 C101V A136J PM1001SF2101FC158J
08.85~08.88 2400 2L LY60 C101V A160J FC158J
10.96~05.99 2800 3L LY101 C101V A136J FC158JSF2101   JT279K
05.95~05.99 2800 3L LY111 C101V A136J SF2101FC158J   JT279K
10.96~05.99 2800 3L LY121 C101V A136J SF2101FC158JPM1001
10.96~05.99 2800 3L LY131 C101V A136J FC158JSF2101PM1001
05.95~05.99 2800 3L LY201 C101V A136J SF2101FC158J
11.85~05.95 2800 3L LY51 C101V A136J FC158JPM1001
01.86~01.96 2800 3L LY61 C101V A136J PM1001FC158J
01.85~08.98 3000 11B BU61 C101V A136JA156J SF2101FC158JFC175JSF2102PM1003
01.85~08.88 3000 11B BU81 C101V A156J FC175J
01.85~08.88 3000 11B BU81R C101V A156J FC175J
08.88~08.98 3000 B BU60 C101V A136J FC158JPM1003
09.84~08.87 3000 B BU63RD C101V A156J FC175J
09.84~06.96 3000 B BU70V C101V A156J PM1001PM1003SF2101
09.84~05.95 3000 B BU70VH C101V A136JA156J FC158JPM1001PM1003SF2101SF2102
09.84~08.88 3000 B BU80 C101V A156J FC158J
08.88~09.93 3000 B BU83 C101V A136J FC158JPM1003SF2101
09.84~08.88 3400 13B BU62 C101V A156J FC175J
09.84~08.88 3400 13B BU62D C101V A156J FC175J
09.84~08.88 3400 13B BU62H C101V A156J FC175J
09.84~08.88 3400 13B BU64 C101V A156J FC175J
09.84~08.88 3400 13B BU64D C101V A156J FC175J
10.85~08.87 3400 13B BU77 C101V A147J FC175J
09.84~08.88 3400 13B BU82 C101V A156J FC175J
09.84~10.89 3400 13B BU85 C101V A136JA147J FC175J
09.84~08.88 3400 13B BU85V C101V A147JA136J FC175JFS130J
03.86~08.88 3400 13B BU93 C101V A136JA147J FC175J
10.85~08.88 3400 13B BU98 C101V A147JA136J FC175J
09.84~10.89 3400 13B-T BU85 C101V A147J FC175J
09.84~10.89 3400 13B-T BU90 C101V A147J FC175J
09.84~10.89 3400 13B-T BU95 C101V A147J FC175J
05.95~05.99 3400 3B BU100 C101V A136J SF2101PM1011FC158J
05.95~05.99 3400 3B BU100A C101V A136J SF2101FC158J
08.97~05.99 3400 3B BU105 C101V A136J PM1011FC158JSF2101
05.95~05.99 3400 3B BU120V C101V A136J FC158JSF2101PM1011
05.95~08.99 3400 3B BU140 C101V A136J SF2101PM1011FC158J

TOYOTA   »   Dyna 150

01.95~01.01 2800 3L LY211R C101V A136J FC158J

TOYOTA   »   DYNA 150/TOYOACE G15

10.96~05.99 2800 3L LY151 C101V A136J SF2101FC158JPM1001
10.96~05.99 2800 3L LY161 C101V A136J FC158JSF2101   JT279K
05.95~05.99 2800 3L LY211 C101V A136J SF2101FC158J

TOYOTA   »   Dyna 200

01.95~12.01 3400 3B BU140L C101V A136J FC158HPM1011
01.95~12.03 3700 14B BU221 C101V A136J PM1009FC158H

TOYOTA   »   Dyna 200 / Toyoace G25

08.97~05.99 3400 3B BU145 C101V A136J PM1011FC158JSF2101

TOYOTA   »   Fortuner

01.05~11.13 3000 5L-E LAN50L C101V A1513 FE193J AC108J
05.06~11.13 3000 5L-E LAN50R C101V A1513 FE193J AC108J

TOYOTA   »   Hiace

08.89~08.93 2400 2L LH102V C101V A170J FC158J   JT278K
01.84~08.89 2400 2L LH51V C101V A137J FC158J
08.86~08.89 2400 2L LH56V C101V A137J FC158J
01.84~08.89 2400 2L LH61B C101V A137J FC158J
01.84~08.89 2400 2L LH61G C115JC101V A137J FC158J
01.84~08.89 2400 2L LH61V C101V A137J FC158J
01.84~08.89 2400 2L LH61VH C101V A137J FC158J
01.84~12.89 2400 2L LH66LV C101V A137J PM1001FC158J
08.86~08.89 2400 2L LH66V C101V A137J FC158J
01.84~08.89 2400 2L LH71V C101V A137J FC158J
08.85~01.97 2400 2L LH80 C101V A136J SF2101FC158J   JT278K
08.87~05.95 2400 2L LH85 C101V A136JA160J SF2101FC158JPM1001
09.91~05.95 2400 2L LH90 C101V A136J PM1001SF2101FC158J   JT278K
09.91~05.95 2400 2L LH95 C101V A136J PM1001SF2101FC158J
01.84~08.89 2400 2L# LH51G C115JC101V A137J PM1001FC158J   JT278K
08.85~08.89 2400 2L-T LH51G C115JC101V A137J FC158J
08.95~08.01 2400 2RZ-E RCH12L C101V A185J FS6001UPI1001FR1007   JT278K
08.93~08.99 2800 3L LH103V C101V A170J FC158JPM1001
08.89~08.98 2800 3L LH113K C101V A170J PM1001FC158J   JT278K
08.89~07.99 2800 3L LH119V C101V A170J FC158J   JT278K
05.95~01.96 2800 3L LY101 C101V A136J FC158JPM1001SF2101   JT279K
01.95~01.96 2800 3L LY111 C101V A136J SF2101PM1001FC158J   JT279K
01.95~10.96 2800 3L LY151 C101V A136J PM1001SF2101FC158J
04.95~10.96 2800 3L LY161 C101V A136J FC158JSF2101PM1001
01.05~01.05 3000 5L-E LH202 C101V A170J FE193J AC109J
01.13~ 3000 5L-E LH212 C101V A1530 FE193J AC109J
01.05~02.19 3000 5L-E LH222R C101V A170J FE193J

TOYOTA   »   Hiace Commuter

01.84~08.89 2200 L LH70V C101V A137J FC158J
08.89~08.04 2400 2L LH102L C101V A170J SF2102PM1001FC158J
01.84~08.89 2400 2L LH71B C101V A137J FC158J
08.89~07.99 2800 3L LH103L C101V A170J FC158J
08.89~01.00 2800 3L LH115B C101V A170J FC158J
08.89~01.00 2800 3L LH115R C101V A170J FC158J

TOYOTA   »   Hiace Regius

08.89~08.99 2800 3L LH109V C101V A170J FC158J
08.89~07.99 2800 3L LH113V C101V A170J FC158J   JT278K
08.86~08.98 2800 3L LH123V C101V A170J FC158J   JT278K
08.89~08.98 2800 3L LH125B C101V A170J PM1001FC158J
08.93~08.98 2800 3L LH129V C101V A170J PM1001FC158J   JT278K

TOYOTA   »   Hiace Van

08.89~02.06 2400 2L LH112R C101V A170J PM1001FC158JSF2102
08.89~02.06 2400 2L LH114R C101V A170J FC158HSF2102PM1001FC158J
08.89~09.05 2800 3L LH113R C101V A170J FC158HSF2102PM1001   JT278K

TOYOTA   »   Hilux

08.85~08.05 2400 2L LN145R C101V A191JA1535 SF2103FC158H
08.85~09.88 2400 2L LN41 C101V A139J FC175J
01.84~12.98 2400 2L LN51 C101V A139J PM1001FC158J
08.83~08.88 2400 2L LN56 C101V A139J FC158J
08.83~03.89 2400 2L LN56L C101V A139J FC158J
11.83~08.88 2400 2L LN60 C101V A139J FC158J
08.85~03.89 2400 2L LN61V C101V A139J FC158J
11.83~08.88 2400 2L LN65 C101V A139JA154J FC175JPM1001FC158J
08.88~06.98 2400 2L LN80 C101V A149J FC158JSF2102PM1001
08.88~09.99 2400 2L LN85 C101V A149J FC158JPM1001SF2102   JT281K
08.88~09.99 2400 2L LN85L C101V A149J PM1001FC158JSF2102   JT281K
08.85~03.89 2400 2L-T LN61V C101V A149J FC158J
09.88~08.94 2800 3L LN100 C101V A149J FC158JSF2102PM1001
09.88~08.97 2800 3L LN106 C115JC101V A149J PM1001SF2102FC158J
08.88~09.99 2800 3L LN106L C101V A154J PM1001FC158JSF2102
08.88~09.99 2800 3L LN106R C101V A154J FC158JSF2102PM1001
08.91~08.97 2800 3L LN107 C101V A149J SF2102PM1001FC158J
08.94~08.97 2800 3L LN109 C115JC101V A149J PM1001FC158J
08.97~03.06 2800 3L LN166L C101V A1535 SF2103FC158H
08.97~03.06 2800 3L LN166R C101V A1535 FC158HPM1008SF2103
08.95~07.98 2800 3L LN57 C101V A154J PM1001FC158J
08.95~07.98 2800 3L LN67 C101V A154J FC158J
08.90~08.97 2800 3L LN81 C101V A149J FC158JSF2102
08.90~06.01 2800 3L LN86 C101V A149J FC158JSF2102PM1001
08.90~06.01 2800 3L LN86R C101V A149J FC158JSF2102PM1001
01.01~12.04 3000 5L LN200L C101V A1535 PM1008FC158H
07.05~12.15 3000 5L-E LAN125L C101V A1531 FE0067 AC108J
08.04~07.11 3000 5L-E LAN15L C101V A1513 FE193J
07.05~12.15 3000 5L-E LAN25L C101V A1513 FE193J AC108J
04.01~10.13 3000 5L-E LAN25R C101V A1513 FE193J AC108J
08.11~10.13 3000 5L-E LAN25R C101V A1513 FE193J AC108J
05.05~10.13 3000 5L-E LAN35R C101V A1513 FE193J AC108J
08.97~09.09 3000 5L-E LN167R C115JC101V A1535A191J PM1008SF2103FC158H
08.97~03.06 3000 5L-E LN172R C101V A191J SF2103FC158HPM1008

TOYOTA   »   Hilux Surf

04.89~08.93 2800 3L LN131V C101V A149J FC158J

TOYOTA   »   Land Cruiser

01.90~12.96 2800 3L LJ79RV C101V A154J FC158JSF2101
01.60~10.86 3000 2B BJ44 C101V A147J FC116J
02.74~02.79 3000 B BJ40 C101V A147J FE103JFC208J
01.60~10.86 3000 B BJ43 C101V A147J FC116J
02.79~10.84 3200 2B BJ41 C101V A147J FC224J
01.60~10.86 3200 2B BJ41V C101V A147J FC208J
10.85~01.90 3400 13B-T BJ71V C101V A147J FC175J
10.85~02.90 3400 13B-T BJ74RV C101V A147J FC175J   JT417K
11.84~02.92 3400 13B-T BJ74V C101V A147J FC175J   JT417K
08.80~10.84 3400 3B BJ42 C101V A147J FC208J
01.79~10.86 3400 3B BJ45 C101V A147J FC208J
01.60~10.86 3400 3B BJ46 C101V A147J FC116J
01.81~12.92 3400 3B BJ60RG C101V A147J FC208J
08.80~12.92 3400 3B BJ60V C101V A147J FC208J
04.84~02.94 3400 3B BJ75 C101V A1526A147J FC158JFC208J
11.84~01.90 3400 3B BJ75LP C101V A1526A147J FC208JFC158J
03.69~09.75 3900 F FJ40 C101V A147J FE101J
01.60~03.92 3900 F FJ43 C101V A147J FC116J
01.60~09.86 3900 F FJ45 C101V A147J FC116J
08.87~01.90 4000 3F FJ62LG C101V A147J FR1023FS6001UPI1004   JT417K
08.80~09.87 4000 3F FJ62V C101V A147J FS9085FS121J   JT417K
01.84~12.92 4000 3F FJ75 C101V A147J FS9085
08.88~01.90 4000 3F-E FJ62G C101V A147J PI1004FR1023FS121JFS6001U   JT417K
01.90~09.92 4000 3F-E FJ80G C101V A147J PI1004FS6001U   JT417K
01.90~09.92 4000 3F-E FJ80L C101V A147J FS6001UPI1004   JT417K
01.90~09.92 4000 3F-E FJ80R C101V A147J FS6001UPI1004   JT417K
10.82~11.84 4200 2F FJ61V C101V A147J FS121J
01.90~07.09 4500 1FZ-F FZJ75LP C101VC114T A147J FS6064PI1005FS9202FR1022
01.90~08.09 4500 1FZ-F# FZJ70 C101V A147J FS9202
01.90~08.09 4500 1FZ-F# FZJ73 C101V A147J FS9202   JT417K
01.92~12.06 4500 1FZ-F# FZJ80L C101VC114T A147J FS9085FR1020FS6064PI1005   JT408KJT434KJT433K
01.92~01.98 4500 1FZ-F# FZJ80R C101VC114T A147J FR1020FS6064PI1005FS9085   JT434KJT433KJT408K
08.99~07.09 4500 1FZ-FE FZJ71L C114TC101V A147J PI1005FR1022FS6205
01.90~07.09 4500 1FZ-FE FZJ74 C101V A147J FS6205
01.90~08.09 4500 1FZ-FE FZJ75 C101V A147J FS9202
01.07~ 4500 1FZ-FE FZJ76 C101V A147J
01.90~07.09 4500 1FZ-FE FZJ78 C101V A147J FS6205
08.98~07.09 4500 1FZ-FE FZJ79L C101V A147J FR1022FS6205PI1005
01.90~01.98 4500 1FZ-FE FZJ80 C101VC114T A147J FS6064FS9085PI1005   JT408K

TOYOTA   »   Land Cruiser 100

01.98~09.07 4500 1FZ-FE FZJ100 C101V A190J FS9120FR1009PI1005
01.98~09.07 4500 1FZ-FE FZJ105L C101V A190J FS9120FR1009PI1005
01.98~09.07 4500 1FZ-FE FZJ105R C101V A190J PI1005FS9120FR1009   JT408K

TOYOTA   »   Land Cruiser Prado

10.85~01.90 2400 2L-T LJ71G C101VC115J A154J FC158JPM1001
04.96~10.02 2800 3L LJ90L C101V A190J PM1014FC158HFC158J
04.96~08.20 2800 3L LJ95 C101V A190J PM1014FC158HFC158J
04.96~09.20 2800 3L LJ95L C101V A190J PM1014FC158JFC158H
11.84~01.90 3400 3B BJ70V C101V A147J FC158J
11.84~01.90 3400 3B BJ73V C101V A147J FC158J

TOYOTA   »   Land Cruiser Prado 120

09.02~08.09 3000 5L-E LJ120L C101V A194J FC158H AC102J
09.02~08.09 3000 5L-E LJ120R C101V A194J FC158H AC102J
09.02~08.09 3000 5L-E LJ125 C101V A194J FC158H AC102J

TOYOTA   »   Land Cruiser Prado 150

08.09~ 3000 5L-E LJ150 C101V A194J FC158H AC108J

TOYOTA   »   Mark II

08.84~08.88 2400 2L LX70 C115JC101V A149J FC158J
08.84~08.88 2400 2L LX70Y C101VC115J A149J FC158J
11.84~09.94 2400 2L LX76V C101V A149J FC158J
08.84~08.88 2400 2L-T LX70 C101VC115J A149J FC158J

TOYOTA   »   Quick Delivery

05.95~05.99 2800 3L LY151 C101V A136J FC158J

TOYOTA   »   Quick Delivery 100-200

05.95~05.99 2800 3L LH81VH C101V A136J FC158J
05.95~08.99 3400 3B BU68VH C101V A136J FC158J

TOYOTA   »   T.U.V.

01.97~12.04 2400 2L LF82 C222VC101VC222J   SF2103FC158H

TOYOTA   »   Townace

11.87~10.91 2400 2L LH85 C101V A136J FC158J

TOYOTA   »   Toyo Ace Truck

10.89~05.95 3400 3B BU68D C101V A136J PM1003FC158JSF2101

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
