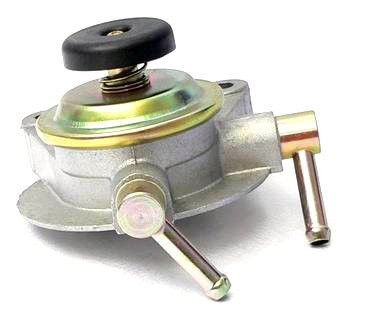

MANUAL DIESEL PUMP » PM1001
Feedback information
Specification
Thread
3/4x16 "
O-Ring gasket
54x70
Outer Diameter [mm]
8
Inner Diameter [mm]
8
Cross reference
TOYOTA
23301-54110
TOYOTA
23301-54140
TOYOTA
23301-54300
TOYOTA
23301-54310
TOYOTA
23301-54330
TOYOTA
23301-54410
TOYOTA
23301-54460
TOYOTA
23301-54560
TOYOTA
23301-64010
TOYOTA
23301-64070
TOYOTA
23301-64130
TOYOTA
23301-67010
TOYOTA
23301-67050
TOYOTA
2330154520
TOYOTA
23380-54790
TOYOTA
23380-67330
TOYOTA
23380-67331
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
DAIHATSU » Delta
TOYOTA » 4 Runner
| 01.89~12.95 | 2800 | 3L | LN130L | C101V | A154J | PM1001SF2102 | ||
| 08.89~11.95 | 2800 | 3L | LN130R | C101V | A154J | PM1001SF2102FC158J |
TOYOTA » Blizzard
TOYOTA » Deliboy
TOYOTA » Dyna
| 08.87~05.95 | 2400 | 2L | LY50 | C101V | A136J | FC158JSF2101PM1001 | ||
| 10.96~05.99 | 2800 | 3L | LY121 | C101V | A136J | FC158JSF2101PM1001 | ||
| 10.96~05.99 | 2800 | 3L | LY131 | C101V | A136J | FC158JPM1001SF2101 | ||
| 11.85~05.95 | 2800 | 3L | LY51 | C101V | A136J | FC158JPM1001 | ||
| 01.86~01.96 | 2800 | 3L | LY61 | C101V | A136J | FC158JPM1001 | ||
| 05.99~07.01 | 3000 | 5L | LY102 | C115J | A136J | SF2101PM1001FC158J | JT279K | |
| 05.99~07.01 | 3000 | 5L | LY112 | C115J | A136J | SF2101PM1001FC158J | JT279K | |
| 05.99~07.01 | 3000 | 5L | LY122 | C115J | A136J | PM1001FC158JSF2101 | ||
| 09.84~06.96 | 3000 | B | BU70V | C101V | A156J | SF2101PM1003PM1001 | ||
| 09.84~05.95 | 3000 | B | BU70VH | C101V | A156JA136J | SF2102SF2101FC158JPM1003PM1001 |
TOYOTA » Dyna 100
TOYOTA » Dyna 150
| 01.86~12.95 | 2400 | 2L | LY60 | PM1001 |
TOYOTA » DYNA 150/TOYOACE G15
TOYOTA » Hiace
| 01.90~12.95 | 2400 | 2L | LH118L | C115J | A170J | FC158JPM1001 | ||
| 01.84~12.89 | 2400 | 2L | LH66LV | C101V | A137J | PM1001FC158J | ||
| 08.87~05.95 | 2400 | 2L | LH85 | C101V | A136JA160J | PM1001FC158JSF2101 | ||
| 09.91~05.95 | 2400 | 2L | LH90 | C101V | A136J | FC158JPM1001SF2101 | JT278K | |
| 09.91~05.95 | 2400 | 2L | LH95 | C101V | A136J | SF2101PM1001FC158J | ||
| 01.84~08.89 | 2400 | 2L# | LH51G | C101VC115J | A137J | PM1001FC158J | JT278K | |
| 08.93~08.99 | 2800 | 3L | LH103V | C101V | A170J | PM1001FC158J | ||
| 08.89~08.98 | 2800 | 3L | LH113K | C101V | A170J | FC158JPM1001 | JT278K | |
| 05.95~01.96 | 2800 | 3L | LY101 | C101V | A136J | PM1001SF2101FC158J | JT279K | |
| 01.95~01.96 | 2800 | 3L | LY111 | C101V | A136J | SF2101FC158JPM1001 | JT279K | |
| 01.95~10.96 | 2800 | 3L | LY151 | C101V | A136J | PM1001SF2101FC158J | ||
| 04.95~10.96 | 2800 | 3L | LY161 | C101V | A136J | SF2101FC158JPM1001 | ||
| 08.95~08.04 | 3000 | 1KZ-TE | KZH132V | C115J | A184J | PM1001SF2102FC158HFC158J | JT420KJT429K | |
| 08.89~08.04 | 3000 | 1KZ-TE | KZH138V | C115J | A184J | SF2102FC158HFC158JPM1001 | JT429KJT420K | |
| 04.95~08.04 | 3000 | 5L-E | LH178V | C115J | A170J | FR1013FC158JSF2102PM1001 | JT278K |
TOYOTA » Hiace Commuter
| 08.89~08.04 | 2400 | 2L | LH102L | C101V | A170J | PM1001SF2102FC158J | ||
| 01.90~12.95 | 2400 | 2L | LH102R | PM1001 | ||||
| 08.89~08.00 | 2800 | 3L | LH125R | PM1001 | ||||
| 08.89~02.06 | 3000 | 5L-E | LH172V | C115J | A170J | PM1001SF2102FC158HFC158J |
TOYOTA » Hiace Regius
| 08.89~08.98 | 2800 | 3L | LH125B | C101V | A170J | PM1001FC158J | ||
| 08.93~08.98 | 2800 | 3L | LH129V | C101V | A170J | FC158JPM1001 | JT278K | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH100G | C115J | A184J | PM1001FC158J | JT429KJT420K | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH106 | C115J | A184J | PM1001FC158J | JT429K | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH110G | C115J | A184J | SF2102PM1001FC158J | JT420KJT429K | |
| 08.95~08.04 | 3000 | 1KZ-TE | KZH110G | C115J | A184J | FC158JPM1001FC158H | JT429KJT420K | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH116G | C115J | A184J | PM1001SF2102FC158H | JT429KJT420K | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH120G | C115J | A184J | FC158JPM1001 | JT420KJT429K | |
| 08.93~08.99 | 3000 | 1KZ-TE | KZH126G | C115J | A184J | FC158JPM1001 | ||
| 08.98~08.04 | 3000 | 5L | LH162V | C115J | A170J | FC158JSF2102PM1001FC158H | JT278K | |
| 04.95~01.05 | 3000 | 5L-E | LH168V | C115J | A170J | FC158JSF2102PM1001 | ||
| 08.98~08.04 | 3000 | 5L-E | LH182K | C115J | A170J | FC158JPM1001 | ||
| 08.98~08.04 | 3000 | 5L-E | LH184B | C115J | A170J | SF2102FC158HPM1001FC158J |
TOYOTA » Hiace Van
| 08.89~02.06 | 2400 | 2L | LH112R | C101V | A170J | FC158JPM1001SF2102 | ||
| 08.89~02.06 | 2400 | 2L | LH114R | C101V | A170J | FC158JPM1001SF2102FC158H | ||
| 08.89~09.05 | 2800 | 3L | LH113R | C101V | A170J | FC158HPM1001SF2102 | JT278K |
TOYOTA » Hilux
| 01.88~12.97 | 2400 | 2L | LN105 | C115J | A149J | PM1001FC158J | ||
| 08.88~08.97 | 2400 | 2L | LN110L | C115J | A149J | PM1001FC158J | ||
| 01.84~12.98 | 2400 | 2L | LN51 | C101V | A139J | FC158JPM1001 | ||
| 11.83~08.88 | 2400 | 2L | LN65 | C101V | A139JA154J | PM1001FC158JFC175J | ||
| 08.88~06.98 | 2400 | 2L | LN80 | C101V | A149J | FC158JSF2102PM1001 | ||
| 08.88~09.99 | 2400 | 2L | LN85 | C101V | A149J | FC158JPM1001SF2102 | JT281K | |
| 08.88~09.99 | 2400 | 2L | LN85L | C101V | A149J | SF2102PM1001FC158J | JT281K | |
| 10.89~06.98 | 2400 | 2L | LN90 | PM1001SF2102 | ||||
| 08.91~08.97 | 2400 | 2L-TE | LN108 | C115J | A149J | PM1001FC158JSF2102 | JT431K | |
| 08.95~08.97 | 2400 | 2L-TE | LN112 | C115J | A149J | FC158JPM1001 | JT431K | |
| 09.88~08.94 | 2800 | 3L | LN100 | C101V | A149J | FC158JSF2102PM1001 | ||
| 09.88~08.97 | 2800 | 3L | LN106 | C115JC101V | A149J | PM1001SF2102FC158J | ||
| 08.88~09.99 | 2800 | 3L | LN106L | C101V | A154J | SF2102PM1001FC158J | ||
| 08.88~09.99 | 2800 | 3L | LN106R | C101V | A154J | SF2102PM1001FC158J | ||
| 08.91~08.97 | 2800 | 3L | LN107 | C101V | A149J | SF2102PM1001FC158J | ||
| 08.94~08.97 | 2800 | 3L | LN109 | C115JC101V | A149J | FC158JPM1001 | ||
| 01.89~12.99 | 2800 | 3L | LN111L | SF2102PM1001 | ||||
| 01.89~12.04 | 2800 | 3L | LN111R | SF2102PM1001 | ||||
| 08.95~07.98 | 2800 | 3L | LN57 | C101V | A154J | FC158JPM1001 | ||
| 08.90~06.01 | 2800 | 3L | LN86 | C101V | A149J | FC158JPM1001SF2102 | ||
| 08.90~06.01 | 2800 | 3L | LN86R | C101V | A149J | SF2102PM1001FC158J | ||
| 08.93~11.95 | 3000 | 1KZ-TE | KZN130W | C115J | A187J | FC158JSF2102PM1001 | JT431K |
TOYOTA » Hilux Surf
| 01.90~08.93 | 2400 | 2L-TE | LN130G | C115J | A149J | PM1001FC158JSF2102 | JT431K | |
| 08.91~08.93 | 2400 | 2L-TE | LN130W | C115J | A149J | PM1001FC158JSF2102 | JT431K | |
| 08.93~11.95 | 3000 | 1KZ-TE | KZN130G | C115J | A187J | PM1001FC158JSF2102 | JT431K |
TOYOTA » Land Cruiser
| 10.85~09.96 | 2400 | 2L-T | LJ73LV | C115J | A154J | PM1001SF2101FC158J | ||
| 01.85~12.96 | 2400 | 2L-T | LJ77L | C115J | A154J | PM1001SF2101FC158J |
TOYOTA » Land Cruiser Prado
| 10.85~01.90 | 2400 | 2L-T | LJ71G | C115JC101V | A154J | PM1001FC158J | ||
| 04.90~05.93 | 2400 | 2L-TE | LJ78G | C115J | A154J | FC158JPM1001SF2101 | JT431K | |
| 01.90~05.96 | 2400 | 2L-TE | LJ78W | C115J | A154J | SF2101FC158JPM1001 | JT431K | |
| 11.84~12.96 | 2400 | 2LT | LJ70 | C115J | A154J | FC158JSF2101PM1001 |
TOYOTA » Lite/Townace
| 10.82~08.85 | 1800 | 1C | CM20V | C103J | A137J | PM1001FC158J | ||
| 01.86~12.98 | 1800 | 1C | CM35LV | C103J | A143J | FC158JPM1001 | ||
| 09.85~08.88 | 1800 | 1C | CM35V | C103JC112J | A143J | PM1001FC158J | ||
| 01.86~09.92 | 2000 | 2C | CM30G | C112JC103J | A143J | FC158JPM1001 | JT281K | |
| 08.88~01.92 | 2000 | 2C | CM31V | C112J | A143J | FC158JPM1001 | JT281K | |
| 10.85~01.92 | 2000 | 2C | CM41V | C103JC112J | A143J | PM1001FC158J | ||
| 11.82~10.96 | 2000 | 2C | CR21G | C103JC112J | A143J | PM1001FC158J | JT281K | |
| 09.84~12.96 | 2000 | 2C | CR27V | C112JC116JC103J | A143JA183J | FC158JPM1001 | JT281K | |
| 01.92~10.96 | 2000 | 2C | CR36V | C116JC112J | A143JA183J | PM1001FC158J | JT281K | |
| 08.85~08.98 | 2000 | 2C-T | CR21G | C112J | A143J | PM1001FC158J | JT278K | |
| 08.87~09.93 | 2000 | 2C-T | CR28G | C112J | A143J | PM1001FC158J | JT278K | |
| 01.92~09.93 | 2000 | 2C-T | CR37G | C112J | A143J | FC158JPM1001 | JT278K | |
| 09.93~10.96 | 2200 | 3C-T | CR22G | C116JC112J | A183J | PM1001FC158J | JT278K | |
| 09.93~10.96 | 2200 | 3C-T | CR29G | C112JC116J | A183J | FC158JPM1001 | JT278K | |
| 09.93~10.96 | 2200 | 3C-T | CR31G | C112J | A183J | FC158JPM1001 | ||
| 09.93~10.96 | 2200 | 3C-T | CR38G | C112JC116J | A183J | PM1001FC158J | JT278K |
TOYOTA » Lite/Townace Truck
| 10.82~08.85 | 1800 | 1C | CM20 | C103J | A143J | PM1001FC158J | ||
| 10.82~08.85 | 1800 | 1C | CM20G | C103J | A137J | PM1001FC158J | ||
| 10.82~09.86 | 1800 | 1C | CM25 | C103J | A143J | PM1001FC158J | ||
| 10.82~09.86 | 2000 | 2C | CM26 | C103J | A143J | PM1001FC158J |
TOYOTA » Liteace
| 01.86~01.92 | 2000 | 2C | CM30LG | C112JC103J | A143J | PM1001FC158J | JT281K | |
| 08.85~01.92 | 2000 | 2C | CM36V | C112JC103J | A143J | PM1001FC158J | JT281K | |
| 10.85~01.92 | 2000 | 2C-T | CM40G | C112J | A143J | FC158JPM1001 | JT278K | |
| 01.92~09.93 | 2000 | 2C-T | CR30G | C112J | A143J | FC158JPM1001 | JT278K | |
| 09.85~09.92 | 2000 | 2CT | CM30G | C112J | A143J | PM1001FC158J | JT281K |
TOYOTA » Liteace Van
TOYOTA » Masterace
| 08.84~01.92 | 2000 | 2C | CR21G | C112JC103J | A143J | FC158JPM1001 | ||
| 08.85~08.87 | 2000 | 2C | CR28G | C103J | A143J | PM1001FC158J | ||
| 08.87~01.92 | 2000 | 2C-T | CR28G | C112J | A143J | PM1001FC158J | ||
| 10.85~01.92 | 2000 | 2C-T | CR30G | C103JC112J | A143J | PM1001FC158J |
