DIESEL FILTER (SPIN-ON) » FC184J

Feedback information
FC184J

Specification

Height
124
Outside diameter
68
Thread Size
3/4"x16 UNF
type
Fuel/Water Separator
Notes

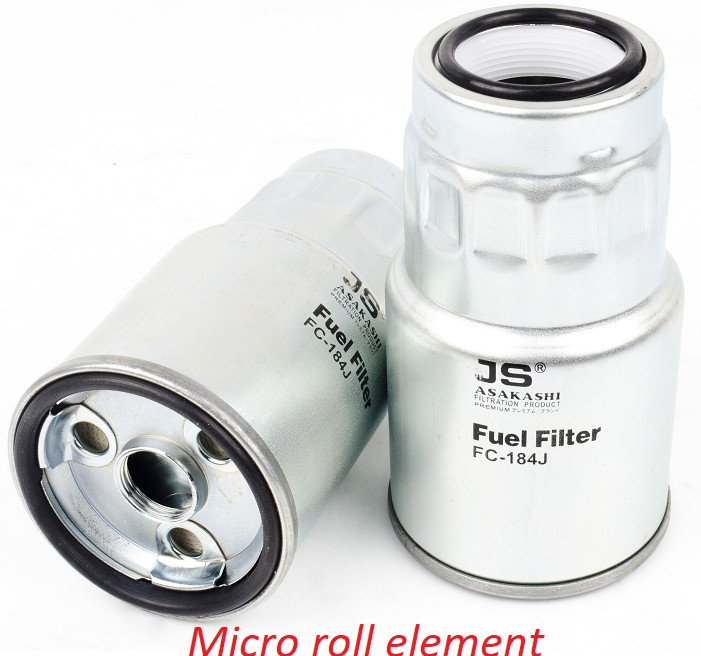

For micro corrugated rolled element is suitable for the Common Rail system.

Couple filter

SF2103[JS]

Cross reference

DAIHATSU
23390-64450-000
DAIHATSU
2339064450
MAZDA
R2L1-13-ZA5A
MAZDA
V9111-4002
MITSUBISHI
MQ901734
NISSAN
16403-HC250
NISSAN
AY500TY002
TOYOTA
23303-64450
TOYOTA
23390-33030
TOYOTA
23390-33060
TOYOTA
23390-64450
TOYOTA
23390-YZZAA
TOYOTA
2339033010
TOYOTA
2339033020
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

DAIHATSU   »   Delta

05.99~06.04 4600 S05C XZU322 C519UC607J A190J SF2103FC158H
05.99~10.06 4900 S05D XZU321U C607J A1009 SF2103FC158HFE0020
05.00~06.04 4900 S05D XZU341 C519U A190J SF2103FC158HFE0020

DAIHATSU   »   Delta Wide

11.96~05.99 2000 2C CR41J C116J A171J FC184J
11.96~05.99 2000 2C CR51J C116J A171J FC184J
12.98~08.02 2200 3C-E CR42J C116J A171J FC184J
12.98~08.02 2200 3C-E CR52J C116J A171J FC184J
11.96~10.01 2200 3C-T CR40N C116J A171J FC184J
11.96~08.02 2200 3C-T# CR50N C116J A171J FC184J

MAZDA   »   323

05.98~05.04 2000 RF-T BJ C307J A458J FC184J AC4501SETAC4504

MAZDA   »   626 Coupe

06.98~11.00 2000 RF-T GF C307J A470J FC184J AC4501SET
06.98~ 2000 RF-T GW C307J A470J FC184J
12.99~10.02 2000 RF-T GW C307J A470J FC184J AC4501SET

MAZDA   »   Bongo

12.03~09.10 2000 RF-T SKF2L C307J A464J FC184J
12.03~09.10 2000 RF-T SKF2M C307J A464J FC184J
12.03~09.10 2000 RF-T SKF2T C307J A464J FC184J
12.03~09.10 2000 RF-T SKF2V C307J A464J FC184J
05.99~03.04 2200 R2 SK22L C412JC307JC506J A464J FC184J
05.99~12.03 2200 R2 SK22M C506JC307J A464J FC184J
05.99~12.03 2200 R2 SK22T C109J A464J FC184J
05.99~12.03 2200 R2 SK22V C109JC306J A464J FC184J
08.93~05.99 2200 R2 SS28V C412J A422JA465J FC326JFC184J

MAZDA   »   Bongo Brawny

09.02~08.07 2000 RF-T SKF6M C307J A464J FC184J
11.04~08.10 2000 RF-T SKF6V C307J A464J FC184J
09.02~08.07 2000 RF-T SKFHM C307J A464J FC184J
09.02~08.07 2000 RF-T SKFHV C307J A464J FC184J
09.87~06.99 2200 R2 SD29M C307JC506J A453J FC184JFC321JFC326J
12.83~06.99 2200 R2 SD29T C307JC412JC304J A453J FC321JFC326JFC184J
05.83~06.99 2200 R2 SD2AT C412JC307J A435JA453J FC326JFC184JFC321J
06.99~09.02 2200 R2 SK24L C307JC506J A465J FC184J
06.99~09.02 2200 R2 SK24T C109J A465J FC184J
04.97~06.99 2500 WL SD59M C109J A453J FC184J
04.97~06.99 2500 WL SD5AM C109J A453J FC184J
04.97~06.99 2500 WL SD5AT C109J A453J FC184J
06.99~09.02 2500 WL SK24T C109J A465J FC184J
06.99~09.02 2500 WL SK26L C307JC506J A465J FC184J
06.99~09.02 2500 WL SK26T C109J A465J FC184J
06.99~11.04 2500 WL SK54# C109J A465J FC184J
06.99~11.04 2500 WL SK56M C109J A465J FC184J   JT306K
06.99~11.04 2500 WL SK56V C109J A465J FC184J   JT306K
06.99~11.04 2500 WL SK5HM C109J A465J FC184J
06.99~11.04 2500 WL SK5HV C109J A465J FC184J
06.99~09.02 2500 WL SKE4T C109J A465J FC184J
04.97~06.99 2500 WL SR59V C109J A465J FC184J
04.97~06.99 2500 WL SR5AM C109J A465J FC184J

MAZDA   »   Capella

07.98~06.02 2000 RF-T GEEP C307J A470J FC184J
06.97~09.99 2000 RF-T GFFP C307J A470J FC184J
10.97~09.99 2000 RF-T GWFW C307J A470J FC184J

MAZDA   »   Familia

06.98~09.00 2000 RF BJEP C307JC506J A458J FC184J

MAZDA   »   J100

04.97~06.99 2500 WL SR5AMF C109J A465J FC184J
04.97~06.99 2500 WL SR5AVF C109J A465J FC184J

MAZDA   »   J80

09.96~05.99 1800 F8 SS88HF C412J A465J FC184J
09.96~05.99 2200 R2 SE28MF C506JC307J A453J FC184J

MAZDA   »   Laser

12.98~06.01 2000 RF BJEPF C506JC307J A458J FC184J

MAZDA   »   Mazda 6

06.02~01.08 2000 RF5 GG C316JC307J A470J FC184J
09.05~01.08 2000 RF7 GG C307J A470J FC158JFC184J

MAZDA   »   Mazda 6 Wagon

02.02~03.05 2000 RF5 GY C307J A470J FC184J AC401J JT132KJT317KJT318K
03.05~11.07 2000 RF7 GY C307J A470J FC158JFC184J AC401J JT317KJT318KJT132K

MAZDA   »   MPV

03.02~01.06 2000 RF LW C901JC304J A470J FC184J AC0171SET

MAZDA   »   Premacy

01.99~06.05 2000 RF# CP19 C304J A458J FC184J AC4504

MAZDA   »   Titan

12.04~08.07 2000 RF-T SYF4L C307J A471J FC184J AC4508
12.04~08.07 2000 RF-T SYF4T C307J A471J FC184J
08.04~08.07 2000 RF-T SYF6L C307J A471J FC184J
08.04~09.07 2000 RF-T SYF6T C307J A471J FC184J AC4508
10.00~01.05 2500 WL SY54L C109J A471J FC184J
10.00~01.05 2500 WL SY54T C109J A471J FC184J
10.00~01.05 2500 WL SY56L C109J A471J FC184J
10.00~01.05 2500 WL SY56T C109J A471J FC184J

MAZDA JAPAN FORD   »   J100

05.97~06.99 2500 WL SR5AMF C306J A465J FC184J
05.97~06.99 2500 WL SR5AVF C306J A465J FC184J

MAZDA JAPAN FORD   »   Laser

06.98~10.00 2000 RF BJEPF C506JC307J A458J FC184J

MITSUBISHI   »   Delica

02.04~07.10 2000 RF-T SKF6M C307J A464J FC184J
02.04~07.10 2000 RF-T SKF6V C307J A464J FC184J
09.99~03.04 2500 WL SK56M C306J A465J FC184J
09.99~03.04 2500 WL SK56V C306JC307J A465J FC184J

MITSUBISHI   »   Delica Truck

12.03~07.10 2000 RF-T SKF2L C307J A464J FC184J
12.03~07.10 2000 RF-T SKF2M C307J A464J FC184J
12.03~07.10 2000 RF-T SKF2T C307J A464J FC184J
12.03~07.10 2000 RF-T SKF2V C307J A464J FC184J
09.99~12.03 2200 R2 SK22L C307J A464J FC184J
09.99~12.03 2200 R2 SK22M C307JC506J A464J FC184J
09.99~12.03 2200 R2 SK22T C307J A464J FC184J
09.99~12.03 2200 R2 SK22V C307J A464J FC184J

NISSAN   »   Vanette

12.03~09.07 2000 RF-T SKF2LN C307JC506J A464J FC184J
12.03~09.10 2000 RF-T SKF2MN C307J A464J FC184J
12.03~08.10 2000 RF-T SKF2TN C307J A464J FC184J
12.03~09.07 2000 RF-T SKF2VN C307JC306J A464J FC184J
04.94~06.99 2200 DIE22 SS28MN C307J A465JA422J FC184JFC326J
04.94~12.03 2200 R2 SE28MN C506JC307J A453J FC326JFC184J
06.99~12.03 2200 R2 SK22LN C307J A464J FC184J
06.99~12.03 2200 R2 SK22MN C307J A464J FC184J
06.99~12.03 2200 R2 SK22TN C306J A464J FC184J
06.99~12.03 2200 R2 SK22VN C306J A464J FC184J
10.96~06.99 2200 R2 SS28HN C412J A465J FC184J
04.94~07.99 2200 R2 SS28VN C412J A422JA465J FC326JFC184J

NISSAN   »   Vanette Truck

04.94~12.03 2200 DIE22 SE28TN C412J A453J FC326JFC184J

TOYOTA   »   Avensis

05.06~11.08 2000 1ADFTV ADT250L OE116J A1516 FC184J
01.97~12.03 2000 1CD-FTV CDT220L C115J   SF2103FC184J AC1502RSET
08.99~01.03 2000 1CD-FTV CDT220R C115J A1511 FC184J
10.08~02.15 2000 2ADFTV ADT271L OE116J A1517 FC158HFC184J AC108J JT394K
11.11~08.15 2000 2ADFTV ADT271R OE116J A1517 FC158HFC184J AC108J JT394K
10.97~12.03 2000 2C-T CT220L C116J A1506 FC184JSF2102PM1012 AC1502SET
10.97~12.03 2000 2C-TE CT220 C116J A1506 SF2103FC184J AC1502SET
06.05~01.08 2200 2AD-FHV ADT225 OE116J A1516 FC184J AC1503
04.05~11.08 2200 2AD-FTV ADT251R OE116J A1516 FC184J AC1503

TOYOTA   »   Avensis Verso

01.01~12.04 2000 1CD-FTV CLM20L C116J A1511 SF2102FC184J

TOYOTA   »   Caldina

05.98~06.02 2200 3C-E CT197V C116J A161J PM1013SF2102FC184J AC1502RSET JT387K
05.98~06.02 2200 3C-E CT199V C116J A161J FC184JSF2102PM1012
08.97~09.02 2200 3C-TE CT216G C116J A181J FC158JFC184J AC1502RSET JT423K

TOYOTA   »   Carina

08.92~08.96 2000 2C CT190 C112JC116J A1506A161J FC184JFC158J AC1502SET
08.96~08.98 2000 2C-T CT210 C116J A181J PM1012SF2102FC184J   JT387K
08.98~12.01 2200 3C-TE CT211 C116J A161J SF2102PM1012FC184J   JT387K
08.98~12.01 2200 3C-TE CT216 C116J A161J PM1012FC184JSF2102   JT387K

TOYOTA   »   Carina E

01.92~12.97 2000 2C-T CT190 C116J A1506 SF2102FC184JPM1012 AC1502SET

TOYOTA   »   Chaser

09.96~08.99 2400 2L-TE LX100 C115J A180J SF2102FC184J AC21001SET JT281K
10.92~09.96 2400 2L-TE LX90 C115J A180J FC184JSF2102FC158J

TOYOTA   »   Coaster

01.93~07.99 3400 3B BB40 C101V A136J PM1006SF2103FC158J
01.93~07.99 3400 3B BB46V C101V A136J FC158JSF2103
01.93~01.05 3700 14B BB42     SF2103
08.04~12.16 4000 N04C XZB40 C607J A188J SF2103
08.04~12.16 4000 N04C XZB46V C607JC608J A188J FC158HSF2103
08.04~12.16 4000 N04C XZB50 C608JC607J A188J FC158HFC0071NSF2103
08.04~12.16 4000 N04C XZB50R     SF2103PM1005
08.04~12.16 4000 N04C XZB51 C607JC608J A188J FC158HSF2103
12.00~01.07 4000 N04C XZB53     SF2103
08.04~12.16 4000 N04C XZB56V C607JC608J A188J FC158HSF2103
09.06~12.16 4000 N04C XZB59     SF2103
07.04~07.07 4000 N04C-T XZB40R C607JC608J A188J FC158HSF2103
12.00~10.03 4100 15B-F BB53L     SF2103
12.00~10.03 4100 15B-F BB54L     SF2103
12.95~07.99 4100 15B-F BB55 C115J A147J FC158JSF2103
05.97~08.04 4100 15B-F BB58 C115J A147J SF2103FC158J
08.04~07.07 4100 15B-F XZB40L     SF2103
12.00~01.07 4100 15B-FT BB53L     SF2103
12.00~01.07 4100 15B-FT BB54L     SF2103
01.93~03.05 4100 15B-FT BB58     SF2103
01.93~08.06 4100 15B-FTE BB50L C115J A188J FC158JSF2103
01.93~08.06 4100 15B-FTE BB50R C115J A188J SF2103FC158J
01.93~03.05 4100 15B-FTE BB58 C115J A147J SF2103FC158J
05.97~08.06 4100 15B-FTE BB59     SF2103
03.02~12.16 4100 1BZ-FPE BZB40 C115J A147JA136J FC158HSF2103
03.02~12.16 4100 1BZ-FPE BZB50 C115J A136J SF2103
01.93~08.08 4200 1H-Z HZB40 C115J A147J SF2103FC158J
01.93~08.04 4200 1H-Z HZB41 C115J A147J FC158JSF2103PM1005
01.93~08.04 4200 1H-Z HZB46V C115J A147J FC158JSF2103
01.93~01.05 4200 1H-Z HZB50L C115J A147J FC158JSF2103PM1005
01.93~12.16 4200 1H-Z HZB50R C115J A147J SF2103FC158H
01.93~08.04 4200 1H-Z HZB56V C115J A147J SF2103PM1005FC158J
01.17~ 4200 1H-Z HZB60R C115J A147J SF2103FC158H
01.17~ 4200 1H-Z HZB70L C115J A147J SF2103FC158H
05.95~05.99 4200 1HD-FT HDB50 C115J A147J FC158JSF2103PM1005
05.95~08.04 4200 1HD-FT HDB51 C115J A147J SF2103PM1005FC158HFC158J
06.99~08.04 4200 1HD-FTE HDB50 C115J A188JA147J FC158JSF2103PM1005
06.99~08.04 4200 1HD-FTE HDB51 C115J A188JA147J FC158JSF2103PM1005
01.93~05.95 4200 1HD-T HDB50 C115J A147J FC158JSF2103PM1005
01.93~08.04 4200 1HD-T HDB51 C115J A147J FC158JSF2103PM1005

TOYOTA   »   Corolla

08.04~02.07 1400 1ND-TV NDE120L SDN EU C111T A1507 FC184J AC1503
08.04~02.07 1400 1ND-TV NDE120L WGN EU C111T A1507 FC184J AC1503
05.14~11.19 1400 1ND-TV NDE170 OE118J A1517 SF2103FC158J AC108C
01.97~06.02 2000 1CD-FTV CDE110 C116J A1511 FC184JSF2103 AC1501
10.01~09.08 2000 1CD-FTV CDE120L C116J A1507 FC184J AC101JAC1503
01.00~01.08 2000 2C CE120 C116J A161J SF2103FC184J

TOYOTA   »   Corolla Altis

10.01~08.08 2000 2C CE120L C116J A161J SF2103FC184J AC403J

TOYOTA   »   Corolla Fielder

08.00~04.04 2200 3C-E CE121G C116J A161J FC158JSF2103 AC101J JT425K

TOYOTA   »   Corolla HB

08.04~02.07 1400 1ND-TV NDE120L HB EU C111T A1507 FC184J AC1503

TOYOTA   »   Corolla Verso

10.01~01.04 2000 1CD-FTV CDE120L C116J A1507 FC184J AC101J
08.05~02.09 2200 2AD-FTV AUR10 OE116J A1516 FC184J AC101J

TOYOTA   »   Corona Premio

01.96~12.01 2000 2C-T CT210 C116J A181J FC184JSF2102PM1012 AC1502RSET JT387K
01.96~12.97 2000 2C-T CT215 C116J A181J FC184J
12.97~12.01 2200 3C-TE CT211 C116J A181J FC184JSF2102PM1012 AC1502RSET JT387K
12.97~12.01 2200 3C-TE CT216 C116J A181J FC184J

TOYOTA   »   Cresta

09.96~08.99 2400 2L-TE LX100 C115J A180J FC184J   JT281K
01.92~09.96 2400 2L-TE LX90 C115J A180J SF2102FC158JFC184J AC21001SET JT281K

TOYOTA   »   Crown

08.93~04.99 2400 2L-TE LS130W C115J A167J FC184J AC1514C JT429K
12.95~09.99 2400 2L-TE LS151 C115J A180J SF2102FC158JFC184J
08.95~09.99 2400 2L-TE LS151H C115J A180J FC158JFC184JSF2102 AC21001SET JT429K

TOYOTA   »   Crown Comfort

01.96~01.98 2400 2L LXS10 C115J A167J SF2102FC184J
01.95~06.07 2400 2L-TE LXS11 C115J A167J FC184J
12.95~08.99 2400 2L-TE LXS11 C115J A167J FC184JSF2102

TOYOTA   »   Dyna

08.04~09.07 2500 2KD-FTV KDY220 C111T A147J FC158HSF2103   JT436K
07.04~09.07 2500 2KD-FTV KDY230 C111T A147J SF2103FC158H
10.01~09.07 2500 2KD-FTV KDY240V C111T A147J SF2103FC158H AC1502RSET
08.04~09.07 2500 2KD-FTV KDY270 C111T A147J FC158HSF2103
08.04~09.07 2500 2KD-FTV KDY280 C111T A147J SF2103FC158H   JT436K
08.04~09.07 2500 2KD-FTV KDY290V C111T A147J FC158HSF2103
09.07~ 3000 1KD-FTV KDY221 C111T A147J SF2103FC158H AC1510AC933J JT436K
09.06~02.15 3000 1KD-FTV KDY221R C111T A147J FC158HSF2103
07.10~ 3000 1KD-FTV KDY231 C111T A147J SF2103FC158H AC933JAC1510 JT436K
09.07~ 3000 1KD-FTV KDY231L C111T A147J SF2103FC158H
09.07~ 3000 1KD-FTV KDY241V C111T A147J FC158HSF2103
01.07~ 3000 1KD-FTV KDY271 C111T A147J SF2103FC158H
01.07~ 3000 1KD-FTV KDY281 C111T A147J SF2103FC158J   JT436K
07.01~08.04 3000 5L LY220 C115J A136J FC158HSF2103   JT279K
06.01~08.04 3000 5L LY230 C115J A136J FC158HSF2103
07.01~08.04 3000 5L LY240V C115J A136J FC158HSF2103
07.01~08.04 3000 5L LY270 C115J A136J FC158HSF2103
07.01~08.04 3000 5L LY280 C115J A136J FC158HSF2103   JT279K
07.01~08.04 3000 5L LY290V C115J A136J SF2103FC158H
09.02~03.08 3700 14B BU303     SF2103
09.02~03.08 3700 14B BU343     SF2103
05.99~06.04 3700 4B BU301 C115J A190J FC158HSF2103
05.99~06.04 3700 4B BU306 C115J A190J SF2103FC158H
05.99~06.04 3700 4B BU306V C115J A190J FC158HSF2103
05.99~06.04 3700 4B BU346 C115J A190J FC158HSF2103
12.02~03.09 4000 N04C XZU347L     SF2103
12.02~03.09 4000 N04CTU XZU337L     SF2103
12.02~01.06 4100 15B-FTE BU300     SF2103
12.02~01.06 4100 15B-FTE BU340R     SF2103
05.99~05.07 4100 15B-FTE BU400 C115J A1004 SF2103FC158J
05.99~06.04 4100 15B-FTE BU410 C115J A1004 SF2103FC158J   JT410K
11.04~01.07 4100 15B-FTE BU410L     SF2103
05.99~06.04 4100 15B-FTE BU420 C115J A1004 SF2103FC158J   JT410K
11.04~01.07 4100 15B-FTE BU420L     SF2103
05.99~06.04 4100 15B-FTE BU430 C115J A1004 FC158HSF2103   JT410K
07.99~10.06 4100 15B-FTE XZU300L     SF2103
07.99~10.06 4100 15B-FTE XZU320L C115J A1004 FC158HSF2103
01.99~10.06 4100 15B-FTE XZU330L     SF2103
07.99~10.06 4100 15B-FTE XZU330L     SF2103
07.99~10.06 4100 15B-FTE XZU340L     SF2103
05.00~06.03 4100 15B-LPG XZU301H     SF2103
05.99~ 4100 15BLPG XZU301A     SF2103
05.00~06.04 4100 15BLPG XZU302     SF2103
05.00~06.03 4100 15BLPG XZU341 C115J A190J SF2103
05.00~ 4100 15BLPG XZU342     SF2103
05.99~06.04 4600 S05C XZU302 C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU302A C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU302D C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU302H C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU307 C519U A190J SF2103FC158H
05.99~06.04 4600 S05C XZU307V C519UC607J A190J SF2103FC158H
05.99~06.04 4600 S05C XZU312D C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU322 C607JC519U A190J SF2103FC158JFC158H
05.99~06.04 4600 S05C XZU322D C607JC519U A190J SF2103FC158H
05.99~06.06 4600 S05C XZU337 C519UC607J A190J SF2103FC158H
05.00~06.04 4600 S05C XZU342 C607JC519U A190J SF2103FC158H
10.00~12.06 4600 S05C XZU342R     SF2103
05.99~06.04 4600 S05C XZU347 C519U A190J SF2103FC158H
05.99~06.04 4600 S05C XZU352D C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU362 C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU362A C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU362D C607JC519U A190J FC158HSF2103
05.99~06.04 4600 S05C XZU372 C519UC607J A190J FC158HSF2103
05.99~06.04 4600 S05C XZU382 C607JC519U A190JA1004 FC158HSF2103
05.99~06.04 4600 S05C XZU402 C519UC607J A1004 SF2103FC158H
05.99~06.04 4600 S05C XZU412 C519U A1004 SF2103FC158H
10.00~10.08 4600 S05C XZU412L     SF2103
12.00~10.06 4600 S05C XZU412R     SF2103
05.99~08.04 4900 S05D XZU301 C607JC519U A190JA1009 SF2103FE0020FC158H
05.00~03.05 4900 S05D XZU301A C607J A190JA1009 SF2103FC158HFE0020
05.99~10.06 4900 S05D XZU301D C607JC519U A1009A190J FE0020SF2103FC158H
05.99~09.02 4900 S05D XZU301H C519U A190J FC158HSF2103
05.99~10.06 4900 S05D XZU306 C519UC607J A1009A190J SF2103FE0020FC158H
05.99~06.02 4900 S05D XZU311A C519U A190J SF2103FC158H
05.99~ 4900 S05D XZU311D C519UC607J A190J SF2103
05.99~06.02 4900 S05D XZU321A C519U A190J SF2103FC158H
05.99~10.06 4900 S05D XZU321D C607J A1009 SF2103FC158HFE0020
05.99~10.06 4900 S05D XZU331 C519UC607J A190JA1009 FC158HFE0020SF2103
05.00~06.04 4900 S05D XZU341 C519U A190J SF2103FE0020FC158H
05.99~10.06 4900 S05D XZU346 C607JC519U A190JA1009 FC158HFE0020SF2103
05.99~10.06 4900 S05D XZU351D C607JC519U A1009A190J FE0020SF2103FC158H
05.99~06.04 4900 S05D XZU371 C607JC519U A190J SF2103FC158H
05.99~10.06 4900 S05D XZU401 C607JC519U A1004 FC158HFE0020SF2103
05.99~10.06 4900 S05D XZU411 C607JC519U A1004 FC158HSF2103
05.99~10.06 4900 S05D XZU421 C519UC607J A1004 SF2103FC158HFE0020

TOYOTA   »   Dyna 150

07.01~ 3000 5L LY230R C115J A136J SF2103FC158H
07.01~ 3000 5L-E LY235L C115J A136J SF2103FC158H

TOYOTA   »   Gaia

01.98~09.04 2200 3C-TE CXM10G C116J A181J FC184JSF2103 AC1502RSET JT387K

TOYOTA   »   Granvia / Grand Hiace

08.96~05.02 3000 1KZ-TE KCH10W C115J A185J FC184JSF2102   JT420K
10.95~05.02 3000 1KZ-TE KCH16W C115J A185J FC184JSF2102   JT420K

TOYOTA   »   Hiace

08.95~08.01 2400 2L-T LXH12L C115J A185J FC184JSF2102   JT278K
08.95~08.01 2400 2RZ-E LXH12R C115J A185J FC184JSF2102

TOYOTA   »   Hiace Regius Touring

04.97~07.99 3000 1KZ-TE KCH40G C115J A185J PM1021FC184JSF2102   JT429K
04.97~05.02 3000 1KZ-TE KCH40W C115J A185J FC184JSF2102PM1021   JT420KJT429K
04.97~09.99 3000 1KZ-TE KCH46G C115J A185J FC184JSF2102PM1021   JT429K
04.97~05.02 3000 1KZ-TE KCH46W C115J A185J SF2102FC184JPM1021   JT429KJT420K
06.97~05.02 3000 5L LXH49V C115J A185J SF2102FC184J   JT278K
04.97~08.04 3000 5L-E LXH43V C115J A185J FC184J   JT278K

TOYOTA   »   Hilux

08.97~03.06 2400 2L LN140     SF2103
08.97~03.06 2400 2L LN145 C115J A1535 FC184JSF2103
08.85~08.05 2400 2L LN145R C101V A1535A191J SF2103FC158H
11.97~08.04 2400 2L LN150     SF2103
08.97~11.05 2400 2L LN155     SF2103
08.97~08.01 2400 2L-T LN165L C115J A1535 FC184JSF2103
08.97~12.03 2400 2L-T LN165R C115J A191J SF2103FC184J
11.97~08.01 2400 2L-T LN170L C115J A191J SF2103FC184J
01.98~12.03 2400 2L-T LN190L     SF2103
08.97~08.99 2400 2L-TE LN165 C115J A191J SF2103FC184J   JT431K
08.97~08.99 2400 2L-TE LN170H C115J A191J FC158JSF2103   JT431K
08.01~08.05 2500 2KD-FTV KDN145 C111T A191J SF2103PM1008FC158H
08.01~08.05 2500 2KD-FTV KDN150     SF2103
06.98~09.04 2500 2KD-FTV KDN155     SF2103
08.85~08.05 2500 2KD-FTV KDN155R     SF2103
08.01~08.05 2500 2KD-FTV KDN165 C111TC222VC222J A191J PM1008SF2103FC158J
08.97~03.06 2500 2KD-FTV KDN190     SF2103
08.97~11.05 2800 3L LN141     SF2103
08.97~11.05 2800 3L LN146     SF2103
08.97~03.06 2800 3L LN166L C101V A1535 SF2103FC158H
08.97~03.06 2800 3L LN166R C101V A1535 SF2103PM1008FC158H
08.97~11.05 2800 3L LN171     SF2103
08.97~11.05 2800 3L LN191L     SF2103
06.98~09.04 3000 1KD-FTV KDN151     SF2103
08.97~03.06 3000 1KD-FTV KDN166     SF2103
08.97~03.06 3000 1KZ-TE KZN165R C115J A1535 FC158JSF2103FC158HPM1008
08.97~03.06 3000 1KZ-TE KZN190 C115J A1535 PM1008FC158HSF2103
08.97~07.04 3000 5L LN167 C115J A191J FC158JSF2103
08.97~03.06 3000 5L-E LN147 C115J A191J FC184JSF2103
08.97~03.06 3000 5L-E LN152     SF2103
08.97~03.06 3000 5L-E LN157     SF2103
08.97~09.09 3000 5L-E LN167R C115JC101V A1535A191J FC158HSF2103PM1008
11.97~07.04 3000 5L-E LN172H C115J A191J SF2103FC158J
08.97~03.06 3000 5L-E LN172R C101V A191J PM1008SF2103FC158H
08.97~03.06 3000 5L-E LN192R     SF2103

TOYOTA   »   Hilux Surf

11.02~08.05 3000 1KD-FTV KDN215W C115J A194J FC158HSF2103 AC102J JT435K

TOYOTA   »   Ipsum

01.96~01.01     CXM10G     SF2103
09.97~05.01 2200 3C-TE CXM10G C116J A181J FC184JSF2103 AC1502SET

TOYOTA   »   iQ

11.08~05.12 1400 1ND-TV NUJ10L OE118J A1520 SF2102FC184J AC1505C

TOYOTA   »   Land Cruiser 100

01.98~09.07 4200 1H-Z HZJ105 C115J A190J SF2103FE153JFC158H
01.98~08.07 4200 1HD-FT HDJ101K C115J A1503 FC158HSF2103   JT437K
01.98~09.07 4200 1HD-FTE HDJ100L C115J A1503A190J FE153JSF2103SF2101FC158H AC1506SET JT437KJT408K
08.00~08.07 4200 1HD-FTE HDJ100R C115J A1503 SF2103FC158H   JT437KJT410K
01.98~08.02 4200 1HD-T HDJ100R C115J A190J SF2101FE153JSF2103FC158H

TOYOTA   »   Land Cruiser Prado 120

08.04~08.09 3000 1KD-FTV KDJ120R C111TC115J A194J FC158HSF2103 AC102J JT437K
11.02~08.09 3000 1KD-FTV KDJ120W C115J A194J FC158HSF2103 AC102J JT437K

TOYOTA   »   Land Cruiser Prado 150

08.13~ 3000 1KD-FTV KDJ150G     FC158HSF2103
08.09~08.17 3000 1KD-FTV KDJ150L C111T A194J SF2103FC158H AC108J JT437K
08.09~08.17 3000 1KD-FTV KDJ150R C115J A194J FC158HSF2103 AC108J JT437K

TOYOTA   »   Lexus IS (Altezza)

09.05~ 2200 2AD-FHV     A1516 FC184J AC108J

TOYOTA   »   Lite/Townace

11.96~12.04 2200 3C-E CR42R C116J A171J FC184JSF2103   JT281K

TOYOTA   »   Lite/Townace Truck

06.99~08.04 2200 3C-E CM70 C116J A183J SF2103FC184J   JT282KJT281K
06.99~08.04 2200 3C-E CM70/CM75 C116J A183J FC184J
06.99~08.04 2200 3C-E CM75 C116J A183J FC184JSF2103   JT281K
06.99~08.04 2200 3C-E CM80 C116J A183J SF2103FC184J
06.99~08.04 2200 3C-E CM85 C116J A183J FC184JSF2103   JT281K

TOYOTA   »   Liteace

11.96~12.01 2000 2C CR41R C116J A171J SF2103FC184J

TOYOTA   »   Liteace Noah

11.96~12.98 2000 2C CR41V C116J A171J FC184JSF2103   JT281K
11.96~12.98 2000 2C CR51V C116J A171J SF2103FC184J   JT281K
12.98~07.04 2200 3C-E CR42V C116J A171J FC184JSF2103   JT282K
12.98~07.04 2200 3C-E CR52V C116J A171J FC184JSF2103   JT282K
10.96~11.01 2200 3C-T CR50G C116J A171J FC184JSF2103   JT278K
10.96~11.01 2200 3C-TE CR40G C116J A171J SF2103FC184J   JT427K

TOYOTA   »   Mark II

09.96~08.99 2400 2L-TE LX100 C115J A180J SF2102FC184J   JT281K
10.92~09.96 2400 2L-TE LX90 C115J A180J FC184JSF2102FC158J AC21001SET JT281K

TOYOTA   »   Megacruiser

01.96~10.01     BXD20V     SF2103SF2101
01.96~10.01 4100 15B-FTE BXD20V C115J A612J SF2101FC158JSF2103   JT408K

TOYOTA   »   Picnic

08.97~05.01 2200 3C-TE CXM10L C116J A181J SF2103FC184J AC1502RSET
01.97~12.01 2200 3C-TE CXM10R     SF2103

TOYOTA   »   Picnic Verso

05.01~01.06 2000 1CD-FTV CLM20L     SF2103
05.01~12.09 2000 3S-FE CLM20L     SF2103
01.01~07.05 2200   CLM20L     SF2103

TOYOTA   »   Previa

05.01~01.06 2000 1CD-FTV CLR30L C116J A1511 FC184JSF2103 AC102J
02.01~01.06 2000 1CD-FTV CLR30R     SF2103

TOYOTA   »   Probox

06.02~08.07 1400 1ND-TV NLP51V C111T A1007 SF2103FC184J AC101J

TOYOTA   »   Qualis

01.99~01.05 2400 2L LF50 C115J A160J FC158HSF2103

TOYOTA   »   Quick Delivery

08.01~07.04 3000 5L LY270 C115J A136J SF2103FC158H
08.01~07.04 3000 5L-E LY228K C115J A136J SF2103FC158H
07.08~ 4000 N04C-T XKU280K C608J A147J SF2103FC158H

TOYOTA   »   RAV 4

12.12~10.15 2000 1AD-FTV ALA40L OE116J A1518 SF2102FC184J AC108JAC108C
01.01~11.05 2000 1CD-FTV CLA20 C116J A1507A1511 FC184J AC101J
05.00~11.05 2000 1CD-FTV CLA21L C116J A1511 FC184J AC101J
11.05~12.12 2200 2AD-FHV ALA30L OE116J A1518 FC184JSF2102 AC108J
11.05~12.12 2200 2AD-FHV ALA30R OE116J A1518 SF2102FC184J AC108J JT394K
12.12~09.19 2200 2AD-FHV ALA49L OE116J A1022 SF2102FC184J AC108JAC108C JT394K
02.09~ 2200 2AD-FHV ZSA30   A1518 FC184J AC108J
08.09~12.12 2200 2AD-FTV ALA35 OE116J A1518 FC184J AC108J
12.12~09.19 2200 2AD-FTV ALA49L OE116J A1022 SF2102FC184J AC108CAC108J JT394K

TOYOTA   »   T.U.V.

01.97~12.04 2400   LF60     SF2103
01.97~12.04 2400   LF80     SF2103
01.99~12.04 2400 2L LF80     SF2103
01.97~12.04 2400 2L LF82 C101VC222VC222J   SF2103FC158H
01.97~12.04 3000 5L-E LF81     SF2103
01.97~12.04 3000 5L-E LF85     SF2103

TOYOTA   »   Townace

06.99~08.04 2200 3C-E CM70/CM75 C116J A183J FC184J

TOYOTA   »   ToyoAce/Dyna Urbannsuporter

08.01~07.04 3000 5L-E LY228K C115J A136J FC158HSF2103

TOYOTA   »   Verso-S

11.10~04.15 1400 1ND-TV NLP121 OE118J A1520 FC184J AC108J
04.09~ 2000 1AD-FTV ZGR2 OE116J A1517 FC184J AC108J
04.09~ 2200 1AD-FTV ZGR2 OE116J   FC184J AC108J
04.09~ 2200 2AD-FHV ZGR2 OE116J A1517 FC184J AC108J

TOYOTA   »   Yaris

10.01~08.05 1400 1ND-TV NLP10     SF2103
11.05~07.11 1400 1ND-TV NLP90 C111T A1520A1028 FC184J

TOYOTA   »   Yaris/Echo Verso

10.01~09.05 1400 1ND-TV NLP20 C111T A1007 FC184JSF2103 AC101J
10.01~09.05 1400 1ND-TV NLP22 C111T A1007 FC184JSF2103 AC101J

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
