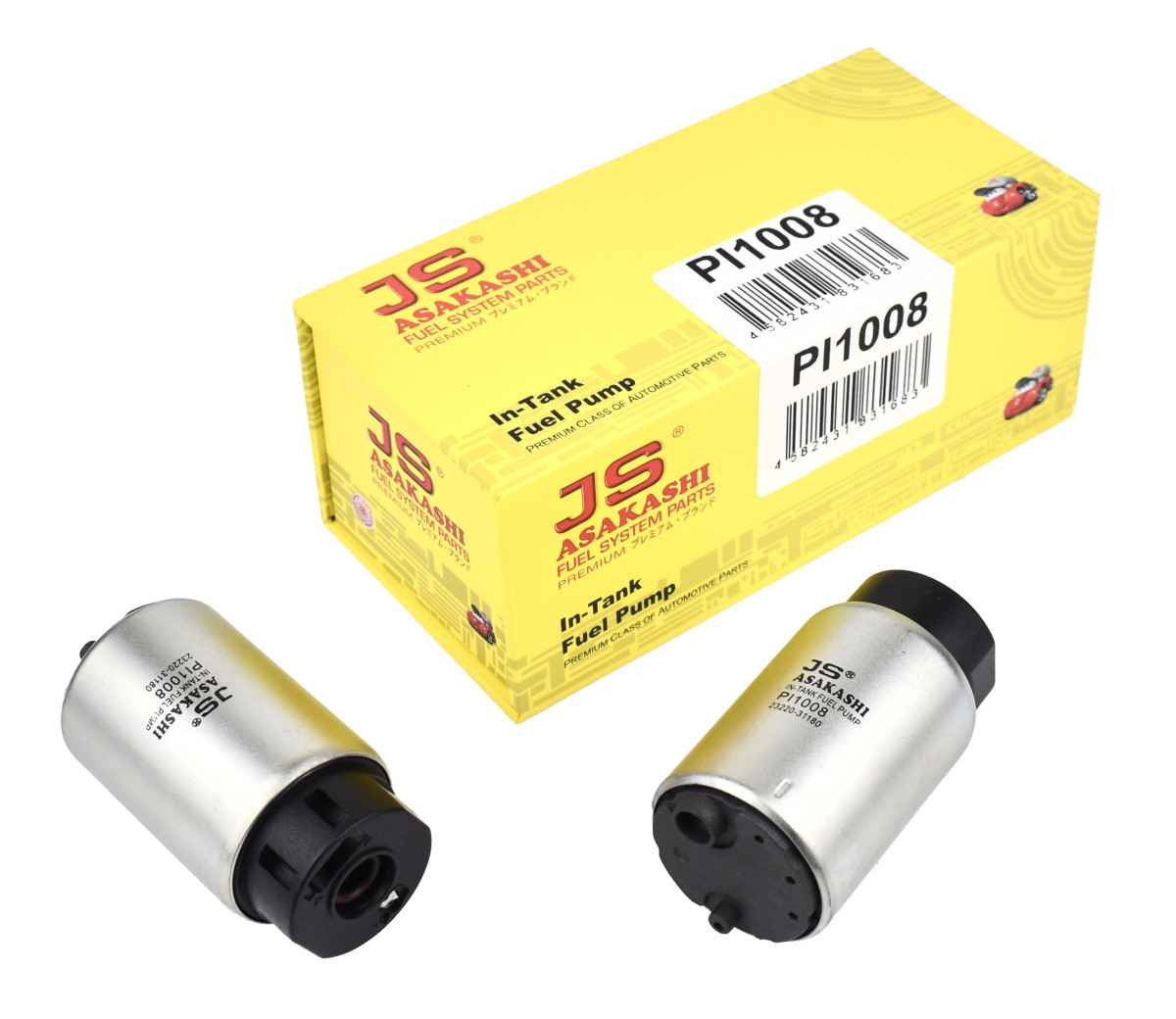

IN-TANK FUEL PUMP » PI1008
Feedback information
Specification
Length 1/ Length 2
73
Diameter 1[mm]
38
Diameter 2[mm]
32
Pressure [Bar]
3
Flow [L/h]
60
Cross reference
DAIHATSU
2322028071
SUZUKI
15100-65841
SUZUKI
15100-65842_P
SUZUKI
15100-65J42
TOYOTA
23220-0C020
TOYOTA
23220-0C050
TOYOTA
23220-0C051
TOYOTA
23220-0C130
TOYOTA
23220-0D170
TOYOTA
23220-0D171
TOYOTA
23220-0D191
TOYOTA
23220-0H071
TOYOTA
23220-0H072
TOYOTA
23220-0H130
TOYOTA
23220-0H131
TOYOTA
23220-0M050
TOYOTA
23220-0M051
TOYOTA
23220-0P010
TOYOTA
23220-0Q030
TOYOTA
23220-0Q031
TOYOTA
23220-0T020
TOYOTA
23220-0T121
TOYOTA
23220-0V020
TOYOTA
23220-0V040
TOYOTA
23220-21131
TOYOTA
23220-21180
TOYOTA
23220-21181
TOYOTA
23220-22120
TOYOTA
23220-28070
TOYOTA
23220-28071
TOYOTA
23220-28090
TOYOTA
23220-28190
TOYOTA
23220-28360
TOYOTA
23220-31030
TOYOTA
23220-31180
TOYOTA
23220-37030
TOYOTA
23220-37050
TOYOTA
23220-37060
TOYOTA
23220-37070
TOYOTA
23220-37071
TOYOTA
23220-37120
TOYOTA
23220-37121
TOYOTA
23220-37170
TOYOTA
23220-37180
TOYOTA
23220-47010
TOYOTA
232200H061
TOYOTA
232200H062
TOYOTA
232200H140
TOYOTA
232200P060
TOYOTA
2322021132
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
LEXUS » RX350
| 01.06~01.09 | 3500 | 2GR-FE | GSU30 | PI1008 | ||||
| 01.06~01.09 | 3500 | 2GR-FE | GSU35 | C111TOE118J | A199J | PI1008FS6313AFS21008 | AC1504AC108J | JT422K |
SUZUKI » Escudo
| 05.05~06.08 | 2000 | J20A | TD54W | C933J | A974J | FS6303AFS2902PPI1008 | AC980J | JT506K |
| 05.05~06.08 | 2700 | H27A | TD94W | C527J | A974J | FS6303AFS2902PPI1008 | AC980J | JT437K |
SUZUKI » Grand Vitara
| 08.08~07.19 | 2000 | J20A | GR NOMADE | C933J | A974J | PI1008FS2902PFS6303A | AC980C | JT506K |
| 09.05~08.08 | 2000 | J20A | JB420W-2 | C933J | A974J | PI1008FS2902PFS6303A | AC980J | JT506K |
| 08.08~07.12 | 2000 | J20A | JB420W-5 | C933J | A974J | PI1008FS6303AFS2902P | AC980C | JT506K |
| 07.12~07.19 | 2000 | J20A | JB420W-8 | C933J | A974J | PI1008FS2902PFS6303A | AC980C | JT506K |
| 06.05~07.16 | 2000 | J20A | JTD54V | C933J | A974J | FS2902PFS6303API1008 | AC980J | JT506K |
| 01.06~01.14 | 2000 | J20A | JTE54V | C933J | A974J | PI1008FS2902PFS6303A | AC980J | JT506K |
| 01.05~12.15 | 2000 | J20A | TD54V | C933J | A974J | PI1008FS2902PFS6303A | AC980J | JT506K |
| 06.01~09.08 | 2700 | H27A | JTD94V | C527J | A974J | FS2902PFS6303API1008 | AC980J | JT437K |
SUZUKI » Grand Vitara (USA)
TOYOTA » Auris
| 10.06~12.08 | 1400 | 4ZZ-FE | ZZE150L | OE117J | A1013 | PI1008FS21001 | AC108J | |
| 10.06~08.12 | 1500 | 1NZ-FE | NZE151H | C110J | A1013 | PI1008FS21001 | AC108J | JT527JT494K |
| 10.06~08.12 | 1500 | 1NZ-FE | NZE154H | C110J | A1013 | FS6303API1008FS21006 | AC108J | JT527JT494K |
| 08.12~05.18 | 1500 | 1NZFE | NZE184H | C110J | A1013 | PI1008FS21006FS6303A | AC108C | JT494KJT527 |
| 10.06~08.12 | 1600 | 1ZR-FE | ZRE151L | OE117J | A1013 | FS21001PI1008 | AC108J | |
| 02.07~10.12 | 1600 | 1ZR-FE | ZRE151R | OE117J | A1013 | PI1008FS21001 | AC108J | |
| 10.06~12.08 | 1800 | 2ZR-FE | ZRE152H | OE117J | A1013 | FS21001PI1008 | AC108J | JT527JT494K |
| 10.06~08.12 | 1800 | 2ZR-FE | ZRE154H | C110J | A1013 | PI1008FS21006FS6303A | AC108J | JT527JT494K |
TOYOTA » Belta
TOYOTA » Blade
TOYOTA » Camry
| 07.07~12.08 | 2400 | 2AZ-FE | ACV40 | C113J | A1019 | FS6305PI1008 | AC108J | JT422K |
| 01.06~09.11 | 2400 | 2AZ-FE | ACV40L | C113J | A1019 | FS6305PI1008 | AC108J | JT422K |
| 01.06~07.12 | 2400 | 2AZ-FE | ACV40R | C113J | A1019 | FS6300FS6305PI1008 | AC108J | JT422K |
| 04.09~09.11 | 2500 | 2AR-FE | ASV40L | OE118J | A1019 | PI1008FS6305 | AC108J | JT21001K |
| 09.11~06.17 | 2500 | 2AR-FE | ASV50L | OE118J | A1019 | FS8005PI1008FS2134 | AC108J | JT21001K |
TOYOTA » Corolla
| 11.06~12.08 | 1400 | 4ZZ-FE | ZZE150R | C110J | A1013 | PI1008FS21001 | AC108J | |
| 08.07~11.13 | 1500 | 1NZ-FE | NZE141R | C110J | A1013 | PI1008FS21006FS6303A | AC108J | JT527JT494KJT425K |
| 07.10~03.14 | 1600 | 1ZR-FE | ZRE141L | OE117J | A1013 | FS6303API1008FS21006 | AC108J | JT425KJT527 |
| 08.10~03.14 | 1600 | 1ZR-FE | ZRE141R | OE117J | A1013 | FS6303API1008FS21006 | AC108J | JT425K |
| 01.09~07.10 | 1600 | 3ZZ-FE | ZZE141L | C110J | A1013 | FS21006FS6303API1008 | AC108J | JT425K |
| 03.08~03.11 | 1800 | 1ZZ-FBE | ZZE142L | C110J | A1013 | PI1008FS21006FS6303A | AC108J | JT425K |
| 03.08~11.14 | 1800 | 1ZZ-FE | ZZE142L | C110J | A1013 | FS6303API1008FS21006 | AC108J | JT425K |
| 01.08~08.13 | 1800 | 2ZR-FE | ZRE142L | OE117J | A1013 | PI1008 | AC108J | JT425K |
| 03.07~02.09 | 1800 | 2ZR-FE | ZRE152R | OE117J | A1013 | FS21001PI1008 | AC108J | JT425K |
TOYOTA » Corolla Altis
| 08.10~11.13 | 1600 | 1ZR-FE | ZRE141L | OE117J | A1013 | FS6303AFS21006PI1008 | AC108J | JT494KJT527 |
| 12.07~07.14 | 1600 | 3ZZ-FE | ZZE141R | C110J | A1013 | FS21006PI1008FS6303A | AC108J | JT425K |
TOYOTA » Corolla Axio
| 09.06~04.12 | 1500 | 1NZ-FE | NZE141 | C110J | A1013 | FS21006FS6303API1008 | AC108J | JT494KJT527 |
| 09.06~04.12 | 1500 | 1NZ-FE | NZE144 | C110J | A1013 | PI1008FS21006FS6303A | AC108J | JT494KJT527 |
| 05.10~04.12 | 1800 | 2ZR-FAE | ZRE142G | OE117J | A1013 | FS6303AFS21006PI1008 | AC108J | JT21003KJT527 |
| 09.06~05.10 | 1800 | 2ZR-FE | ZRE142 | OE117J | A1013 | FS6303AFS21006PI1008 | AC108J | JT527JT494K |
| 09.06~04.12 | 1800 | 2ZR-FE | ZRE144 | OE117J | A1013 | PI1008FS21006FS6303A | AC108J | JT527JT494K |
TOYOTA » Corolla Fielder
| 09.06~04.12 | 1500 | 1NZ-FE | NZE141G | C110J | A1013 | PI1008FS21006FS6303A | AC108J | JT527JT494K |
| 10.06~05.12 | 1500 | 1NZ-FE | NZE144G | C110J | A1013 | FS21006PI1008FS6303A | AC108J | JT494KJT527 |
| 10.06~04.12 | 1800 | 2ZR-FE | ZRE144G | OE117J | A1013 | FS6303API1008FS21006 | AC108J | JT527JT494K |
TOYOTA » Corolla Rumion
| 10.07~12.15 | 1500 | 1NZ-FE | NZE151N | C110J | A1013 | FS21001PI1008 | JT527JT494K | |
| 12.09~12.15 | 1800 | 2ZR-F#E | ZRE152N | OE117J | A1013 | PI1008FS21001 | AC108J | JT494KJT527 |
| 10.07~12.15 | 1800 | 2ZR-F#E | ZRE154N | OE117J | A1013 | PI1008FS21006FS6303A | AC108J | JT527JT494K |
TOYOTA » Fortuner
TOYOTA » Harrier
| 01.06~08.09 | 3500 | 2GR-FE | GSU30W | OE118J | A199J | FS6313API1008FS21008 | AC102JAC1504 | JT422K |
| 01.06~08.09 | 3500 | 2GR-FE | GSU31W | OE118J | A199J | FS6313API1008FS21008 | JT422K | |
| 01.06~12.08 | 3500 | 2GR-FE | GSU35W | OE118J | A199J | FS21008FS6313API1008 | AC102JAC1504 | JT422K |
| 01.06~12.08 | 3500 | 2GR-FE | GSU36W | OE118J | A199J | FS6313API1008FS21008 | AC1504AC102J | JT422K |
TOYOTA » Highlander
| 01.06~01.07 | 3300 | 3MZ-FE | MHU23 | PI1008 | ||||
| 01.07~12.13 | 3500 | 2GR-FE | GSU40L | OE118J | A199J | PI1008FS6313AFS21008 | AC108J | JT422K |
| 07.05~12.15 | 3500 | 2GR-FE | GSU45L | OE118J | A199J | FS6313AFS21008PI1008FS21011AFS21011 | AC108J | JT426K |
TOYOTA » Hilux
| 02.05~12.15 | 2000 | 1TR-FE | TGN15L | C111T | A1513 | FS3213PI1008 | AC108J | |
| 02.05~12.15 | 2000 | 1TR-FE | TGN15R | C111T | A1513 | PI1008FS3213 | AC108J | |
| 10.05~04.15 | 2700 | 2TR-FE | TGN11L | C111T | A1513 | FS3213PI1008 | AC108C | |
| 08.08~07.11 | 2700 | 2TR-FE | TGN16 | C111T | A1513 | FS3213PI1008 | ||
| 07.11~04.15 | 2700 | 2TR-FE | TGN16L | C111T | A1513 | PI1008 | AC108J | JT435K |
| 08.04~12.08 | 2700 | 2TR-FE | TGN26L | C111T | A1513 | PI1008FS3213 | AC108J | JT435K |
| 01.04~01.18 | 2700 | 2TR-FE | TGN36R | C111T | A1513 | PI1008FS3213 | AC108C | JT435K |
| 08.04~07.11 | 4000 | 1GR-FE | GGN15R | C114T | A1011 | FS9094PI1008 | JT437K |
TOYOTA » Innova
TOYOTA » Kluger
| 06.07~ | 3500 | 2GR-FE | GSU40 | PI1008 | ||||
| 12.13~11.16 | 3500 | 2GR-FE | GSU50R | OE118J | A1519 | FS21011API1008FS21011 | AC108CAC108J | JT394K |
TOYOTA » Matrix
| 01.08~06.14 | 1800 | 2ZR-FE | ZRE142L | OE117J | A1013 | PI1008 | AC108J | JT425K |
| 01.08~01.13 | 2400 | 2AZ-FE | AZE141 | C110J | A1015 | PI1008 | AC108J | JT422K |
| 01.08~08.13 | 2400 | 2AZ-FE | AZE144L | C113J | A1015 | PI1008 | AC108J | JT426K |
TOYOTA » Prius
TOYOTA » RAV 4
| 11.05~07.16 | 2400 | 2AZ-FE | ACA31W JPN | C113J | A1015 | FS21002FS6313API1008FS6303AFS21005 | AC108J | JT527JT29001KJT426KJT21004 |
| 01.08~01.13 | 2500 | 2AR-FE | ASA33L | OE118J | A1015 | FS21005FS6303API1008 | AC108J | JT426K |
| 01.05~01.13 | 2500 | 2AR-FE | ASA38L | OE118J | A1015 | PI1008FS21005FS6303A | AC108J | JT426K |
TOYOTA » Scion XB
TOYOTA » Sienna
| 12.06~01.10 | 3500 | 2GR-FE | GSL20L | OE118J | A199J | PI1008FS2121P | AC102J | JT422K |
| 12.06~01.10 | 3500 | 2GR-FE | GSL25L | OE118J | A199J | PI1008FS2121P | AC102J | JT422K |
TOYOTA » Vanguard
| 11.05~11.12 | 2400 | 2AZ-FE | ACA31W | C113J | A1015 | FS6313AFS6303API1008FS21002FS21005 | AC108J | JT29001KJT426KJT527JT21004 |
| 08.08~11.13 | 2400 | 2AZ-FE | ACA38W | C113J | A1015 | FS6303AFS21005PI1008 | AC108J | JT527JT485K |
TOYOTA » Yaris
| 08.05~08.11 | 1000 | 1KR-FE | KSP90L | C110J | A196J | FS21004PI1008FS21003FS2100AFR1013FS6303A | AC108J | |
| 08.05~08.11 | 1000 | 1KR-FE | KSP90R | C110J | A196J | FS21004PI1008FS21003FS2100AFR1013FS6303A | AC108J | |
| 11.05~11.08 | 1300 | 2SZ-FE | SCP90L | C110J | A196J | FS6303API1008FS21004 | AC108J | |
| 11.05~11.08 | 1300 | 2SZ-FE | SCP90R | C110J | A196J | FS21004FS6303API1008 | AC108J |
