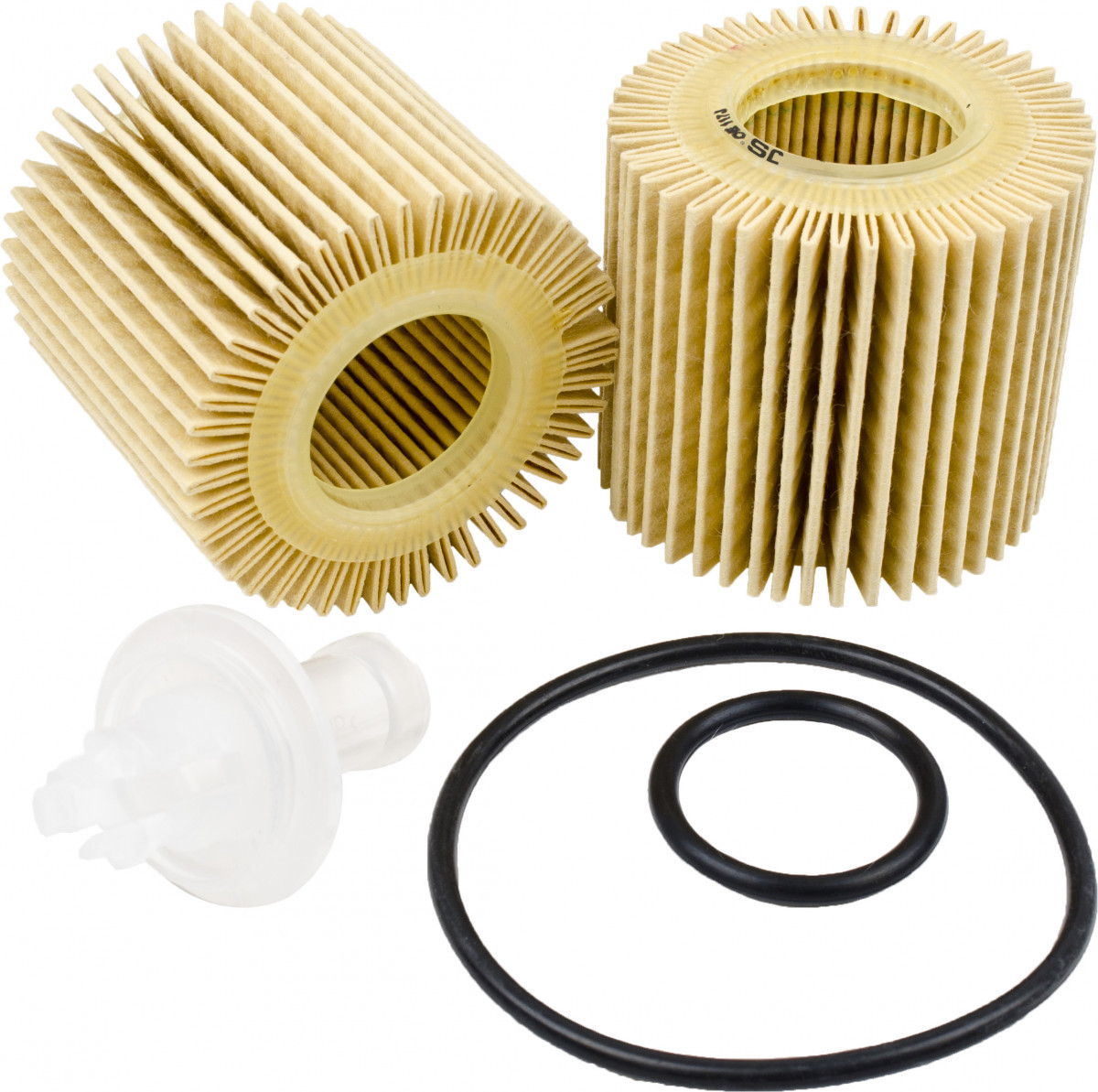

OIL FILTER (ELEMENT) » OE117J

Feedback information
OE117J

Specification

Length
57.3
Outside Diameter
60
Inside Diameter
28
Inside Diameter(D)
28
O-Ring gasket (mm)
69/76/3.5
Structure Material
ECO Filter

Cross reference

DAIHATSU
04152-40060
DAIHATSU
04152-B1010-000
GM
19185485
GM
19258493
HINO
04152-37010
NISSAN
AY110TY003
TOYOTA
04152-37010
TOYOTA
04152-37010-79
TOYOTA
04152-40060
TOYOTA
04152-B1010
TOYOTA
04152-YZZA6
TOYOTA
04152YZZA7
TOYOTA
04152YZZD6
TOYOTA
V9111-3009
TOYOTA
V91113005
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

DAIHATSU   »   Boon

03.06~02.10 900 KJ-VE M312S OE117J A179J FS21010 AC702J
06.04~02.10 1000 1KR-FE M300S OE117J A196J FS21010 AC702J JT462K
05.04~02.10 1000 1KR-FE M310S OE117J A196J FS21010 AC702J JT462K
02.10~04.16 1000 1KR-FE M600S OE117J A196JA21031 FS21010 AC108J JT529
02.10~04.16 1000 1KR-FE M610S OE117J A196J   AC108J
04.16~ 1000 1KR-FE M700S OE117J A21031   AC108J JT529
04.16~ 1000 1KR-FE M710S OE117J A21031   AC108J
02.10~05.12 1300 1NR-FE M601S OE117J A197J FS21010 AC108J JT529
06.04~02.10 1300 K3-VE M301S OE117J A741J FS21010 AC702J JT462K

DAIHATSU   »   Boon Luminas

12.08~03.12 1500 3SZ-VE M502G OE117J A741J   AC108J JT462K
12.08~03.12 1500 3SZ-VE M512G OE117J A741J

DAIHATSU   »   Coo

05.06~02.13 1300 K3-VE M401S OE117J A1016
05.06~02.13 1300 K3-VE M411S OE117J A1016
05.06~02.13 1500 3SZ-VE M402S OE117J A1016

DAIHATSU   »   Materia

05.06~01.13 1300 K3-VE M401L OE117J A1016 FS21010
09.06~08.09 1500 3SZ-VE M402 LHD GCC OE117J A1016 FS21010   JT462K
09.06~08.09 1500 3SZ-VE M402S SG RHD OE117J A1016 FS9207 AC108J

DAIHATSU   »   Mebius

04.13~03.21 1800 2ZR-FXE ZVW41N C110JOE117J A1027   AC108J

DAIHATSU   »   Rocky

11.19~ 1000 1KR-VET A200S OE117JC932J A1549   AC108C JT759K
11.19~ 1000 1KR-VET A210S OE117J A1549   AC108J
08.21~ 1000 1KR-VET A250A C932JOE117J A1549   AC108C JT759K

DAIHATSU   »   Sirion

01.05~10.11 1000 1KR-FE M300 OE117J A196J FS21010
10.04~06.07 1300 K3-VE M301L OE117J A741J FS21010   JT462K
06.07~01.13 1300 K3-VE M301L OE117J A741J FS21010   JT462K
10.04~10.11 1300 K3-VE M301S OE117J A741J FS21010   JT462K
01.05~10.11 1300 K3-VE M311 OE117J A741J FS21010   JT462K
06.07~01.13 1500 3SZ-VE M303 OE117J A741J FS21010 AC702J JT462K
01.05~01.13 1500 3SZ-VE M303S OE117J A741JA1016 FS9207FS21010 AC702J JT462K

DAIHATSU   »   Thor

11.16~ 1000 1KR-## M900S OE117J A1538A21031   AC108C JT529
11.16~ 1000 1KR-## M910S OE117J A21031   AC108JAC108C JT529

LEXUS   »   CT200h

12.10~ 1800 2ZR-FXE ZWA10 OE117J A1027 FS2109 AC108J

LEXUS   »   NX200

10.14~09.21 2000 3ZR-FAE ZGZ10 OE117JC110J A1521A1013 PI1011FS21002FS6313A AC108J JT544K
10.14~09.21 2000 3ZR-FAE ZGZ15 C110JOE117J A1013A1521 FS6313AFS21002PI1011 AC108J JT544K

LEXUS   »   RC350

09.14~ 3500 2GR-FSE GSC15 OE117J A1013   AC108J JT544K
10.15~ 3500 2GR-FSE GSC16 OE117J A1013   AC108J

MITSUOKA   »   NOUERA 6-02

07.07~07.14 1800 2ZR-FE ZRE142 OE117J A1013   AC108J

PONTIAC (GM)   »   VIBE II

01.08~12.10 1800 LAY(2ZRFE) SL26 OE117J A1013   AC108J JT425K

SUBARU   »   DEX

07.08~06.12 1300 K3-VE M401F OE117J A1016   AC108J
07.08~06.12 1300 K3-VE M411F OE117J A1016   AC108J

SUBARU   »   Justy

11.16~ 1000 1KR-## M900F OE117J A21031A1538   AC108C JT529
11.16~ 1000 1KR-## M910F OE117J A21031   AC108CAC108J JT529
09.07~11.11 1000 1KR-FE M300F EU OE117J A196J FS21010 AC702J JT462K

SUBARU   »   Rex

11.22~ 1000 1KR-VET A200A OE117JC932J A1549   AC108C JT759K

SUBARU   »   Trezia

11.10~07.16 1300 1NR-FE NSP120X OE117J A197J FR1025FS2112PPI1024 AC108CAC108J JT21003K

TOYOTA   »   Allion

04.10~03.21 1800 2ZR-FAE ZRT260 OE117J A1013 FS6302 AC108J JT494KJT527
04.10~03.21 1800 2ZR-FAE ZRT265 OE117J A1013 FS6302PI1005FR1019 AC108J JT527JT494K
05.07~10.10 1800 2ZR-FE ZRT260 OE117J A1013 FS6302PI1005FR1019 AC108J JT527JT494K
05.07~04.10 1800 2ZR-FE ZRT265 OE117J A1013 PI1005FR1019FS6302 AC108J JT494KJT527
12.07~12.12 2000 3ZR-FAE ZRT261 OE117J A1013 FS6302PI1005FR1019 AC108J JT527JT485K

TOYOTA   »   Auris

06.07~10.12 1300 1NR-FE NRE150 OE117J A1013   AC108J
10.12~05.15 1300 1NR-FE NRE180 OE117J A1013 PI1011 AC108J
10.06~12.08 1400 4ZZ-FE ZZE150L OE117J A1013 FS21001PI1008 AC108J
09.09~10.12 1600 1ZR-FAE ZRE151L OE117J A1013 FS21001 AC108J JT425K
12.08~10.12 1600 1ZR-FAE ZRE151R OE117J A1013 FS21001 AC108J
01.13~ 1600 1ZR-FAE ZRE181 OE117J A1013   AC108J JT527
10.12~05.15 1600 1ZR-FAE ZRE185 OE117J A1013   AC108J JT527
10.12~ 1600 1ZR-FAE ZRE185L OE117JC110J A1013 PI1011FS6303AFS2107 AC108CAC108J
10.12~ 1600 1ZR-FAE ZRE185R OE117J A1013 FS6303AFS2107 AC108J JT494KJT527
10.06~08.12 1600 1ZR-FE ZRE151L OE117J A1013 PI1008FS21001 AC108J
02.07~10.12 1600 1ZR-FE ZRE151R OE117J A1013 FS21001PI1008 AC108J
08.12~05.18 1800 2ZR-FAE ZRE182R OE117J A1013 FS2109PI1001FR1007 AC108C JT539KJT527JT601K
10.06~12.08 1800 2ZR-FE ZRE152H OE117J A1013 FS21001PI1008 AC108J JT494KJT527
08.12~11.18 1800 2ZR-FE ZRE186H OE117J A1013 FS2109PI1001FR1007 AC108CAC108J JT527
06.10~10.12 1800 2ZR-FXE ZWE150L OE117J A1027 FS6303API1024FS2107PI1011 AC108J
06.13~11.17 1800 2ZR-FXE ZWE186H OE117JC110J A1027 PI1011 AC108J
06.13~11.18 1800 2ZR-FXE ZWE186L C110JOE117J A1027 PI1011 AC108J

TOYOTA   »   Avensis

11.08~07.18 1600 1ZR-FAE ZRT270L OE117J A1013 FS2107PI1011FS6303A AC108J
11.08~07.18 1800 2ZR-FAE ZRT271L OE117J A1013 FS2107FS6303API1011 AC108J JT601KJT539KJT527
11.08~07.18 1800 2ZR-FAE ZRT271R OE117J A1013 FS2107FS6303API1011 AC108J JT527JT601KJT539K
11.08~07.18 2000 3ZR-FAE ZRT272L OE117J A1013 PI1011FS6303AFS2107 AC108J JT426KJT21004
07.11~09.15 2000 3ZR-FAE ZRT272W OE117J A1013 PI1011FS6303AFS2107 AC108J JT485K

TOYOTA   »   bB

01.06~07.16 1300 K3-VE QNC20 OE117J A1016 FS21010FS6300 AC108J JT462K
01.06~09.14 1300 K3-VE QNC25 OE117J A1016 FS21010 AC108J JT462K
01.06~07.16 1500 3SZ-VE QNC21 OE117J A1016 FS21010 AC108J JT462K

TOYOTA   »   Belta

11.05~06.12 1000 1KR-FE KSP92 OE117J A196J FS6303AFS21004PI1011 AC108J JT21003K

TOYOTA   »   C-HR

12.16~ 1800 2ZR-FXE ZYX10 OE117J A21031   AC111C
10.16~ 1800 2ZR-FXE ZYX10L OE117J A21031 FS2132 AC111C
10.16~ 1800 2ZR-FXE ZYX10R OE117J A21031 PI1011 AC111C
03.16~ 2000 3ZR-FAE ZGX10L OE117J A1536   AC9411 JT544K

TOYOTA   »   Corolla

12.08~04.13 1300 1NR-FE NRE150L OE117J A1013   AC108J
12.08~04.13 1300 1NR-FE NRE150R OE117J A1013   AC108J
02.09~01.14 1300 1NR-FE NRE150R S. AFR OE117J A1013   AC108J
06.13~12.19 1300 1NR-FE NRE180 OE117J A1013 FS2107FS6303A AC108C
01.14~12.19 1300 1NR-FE NRE180R OE117J A1013 FS6303API1011FS2107 AC108JAC108C
11.06~04.13 1600 1ZR ZRE151 OE117JC110J A1013   AC108J
11.06~11.19 1600 1ZR ZRE151L C110JOE117J A1013 PI1011FS21001FS2107FS6303A AC108J JT425K
07.10~03.14 1600 1ZR-FE ZRE141L OE117J A1013 PI1008FS21006FS6303A AC108J JT527JT425K
08.10~03.14 1600 1ZR-FE ZRE141R OE117J A1013 PI1008FS21006FS6303A AC108J JT425K
06.13~01.19 1600 1ZR-FE ZRE181L OE117J A1013 FS2107FS6303API1011 AC108J JT601KJT527JT539K
01.13~ 1600 1ZR-FE ZRE181R OE117J A1013 PI1011FS2107FS6303A AC108J JT527
03.11~03.14 1800 2ZR-FBE ZRE142 OE117J A1013   AC108J
01.08~08.13 1800 2ZR-FE ZRE142L OE117J A1013 PI1008 AC108J JT425K
03.07~02.09 1800 2ZR-FE ZRE152R OE117J A1013 FS21001PI1008 AC108J JT425K
08.13~08.16 1800 2ZR-FE ZRE172L OE117J A1013   AC108J JT425K
06.13~ 1800 2ZR-FE ZRE182L OE117J A1013 FS6303AFS2107PI1011 AC108CAC108J JT527JT601K
03.15~ 1800 2ZR-FE ZRE182R OE117J A1013 PI1001FR1007FS2109 AC108J JT527JT539K
10.10~01.14 2000 3ZR-FE ZRE153 OE117J A1013   AC108J

TOYOTA   »   Corolla Altis

08.10~11.13 1600 1ZR-FE ZRE141L OE117J A1013 PI1008FS21006FS6303A AC108J JT527JT494K
08.10~06.14 1600 1ZR-FE ZRE141R OE117J A1013 FS6300 AC108J JT494KJT527
10.13~07.19 1600 1ZR-FE ZRE171L OE117J A1013 FS2116FS6313A AC108J JT425K
12.13~ 1600 1ZR-FE ZRE171R OE117J A1013 FS2116FS6313A AC108J JT539K
07.10~07.14 1800 2ZR-FE ZRE142 OE117J A1013 FS21006FS6303A AC108J JT601K
12.13~ 1800 2ZR-FE ZRE172L VN C110JOE117J A1013 FS2116FS6313A AC108J JT539K
11.08~07.14 2000 3ZR-FE ZRE143L OE117J A1013 FS21006FS6303A AC108J JT485KJT426K
10.13~07.20 2000 3ZR-FE ZRE173L C110JOE117J A1013 FS6313AFS2116 AC108J JT21004JT426K
12.13~07.19 2000 3ZR-FE ZRE173R OE117JC110J A1013 FS6313AFS2116 AC108J JT21004

TOYOTA   »   Corolla Axio

04.12~ 1300 1NR-FE NRE160 OE117J A197J FR1025FS2112P AC108J JT570
01.15~ 1500 2NR-FKE NRE161 OE117J A197J FR1025 AC108J JT527JT21003KJT539K
05.10~04.12 1800 2ZR-FAE ZRE142G OE117J A1013 PI1008FS21006FS6303A AC108J JT527JT21003K
04.12~ 1800 2ZR-FAE ZRE162 OE117J A1013 FS6303AFS21005 AC108J JT494KJT527
09.06~05.10 1800 2ZR-FE ZRE142 OE117J A1013 FS6303API1008FS21006 AC108J JT527JT494K
09.06~04.12 1800 2ZR-FE ZRE144 OE117J A1013 PI1008FS21006FS6303A AC108J JT494KJT527

TOYOTA   »   Corolla Fielder

01.15~ 1500 2NR-FE NRE161G OE117J A197J FR1025 AC108J JT527JT21003KJT539K
05.10~04.12 1800 2ZR-FAE ZRE142G OE117J A1013 FS6303AFS21006 AC108J
05.12~ 1800 2ZR-FAE ZRE162G OE117JC110J A1013 FR1025 AC108J JT494KJT527
10.06~05.10 1800 2ZR-FE ZRE142G OE117J A1013   AC108J JT494K
10.06~04.12 1800 2ZR-FE ZRE144G OE117J A1013 PI1008FS21006FS6303A AC108J JT494KJT527

TOYOTA   »   Corolla Rumion

12.09~12.15 1800 2ZR-F#E ZRE152N OE117J A1013 PI1008FS21001 AC108J JT494KJT527
10.07~12.15 1800 2ZR-F#E ZRE154N OE117J A1013 FS6303AFS21006PI1008 AC108J JT494KJT527

TOYOTA   »   Harrier

01.14~05.20 2000 3ZR-FAE ZSU60W C110JOE117J A1013 FS21002PI1011FS6313A AC108C
12.13~05.20 2000 3ZR-FAE ZSU65W C110JOE117J A1013 PI1011FS6313AFS21002 AC108J

TOYOTA   »   iQ

11.08~03.16 1000 1KR-FE KGJ10 C110JOE117J A1026   AC1505C JT29001K
05.09~03.16 1300 1NR-FE NGJ10 OE117J A1026     JT605K

TOYOTA   »   Isis

09.09~01.18 1800 2ZR-FAE ZGM10G OE117J A1003 FS6302PI1005FR1019 AC101J JT494KJT527
09.09~01.18 1800 2ZR-FAE ZGM15_ OE117J A1003 FS6302PI1005FR1019 AC101J
09.09~01.18 1800 3ZR-FAE ZGM11G OE117J A1003 FS6302PI1005FR1019 AC101J JT485KJT527
09.09~01.18 1800 3ZR-FAE ZGM11W OE117J A1003 FS6302FR1019PI1005 AC101J JT485KJT527

TOYOTA   »   Ist

07.07~08.10 1800 2ZR-FE ZSP110 OE117J A1013 PI1001FR1007FS21003FS2100A AC108J JT425K

TOYOTA   »   Matrix

01.08~06.14 1800 2ZR-FE ZRE142L OE117J A1013 PI1008 AC108J JT425K

TOYOTA   »   NAV1

04.10~12.16 2000 3ZR-FAE ZRR70 OE117J A1013 FS6302 AC108J JT485K
08.08~04.10 2000 3ZR-FE ZRR70 OE117J A1013 FS6302 AC108J JT485K

TOYOTA   »   Noah/Voxy

06.07~04.10 2000 3ZR-FAE ZRR70 OE117J A1013 FS6302PI1005FR1019 AC108J JT485KJT527
06.07~04.14 2000 3ZR-FAE ZRR75 OE117J A1013 FR1019FS6302PI1005 AC108CAC108J JT527JT531K
01.14~12.21 2000 3ZR-FAE ZRR80 OE117JC110J A1013   AC111JAC111C JT544K
01.14~12.21 2000 3ZR-FAE ZRR85 OE117J A1013 FS2100A AC111J JT531KJT544K

TOYOTA   »   Noah/Voxy/Esquire

01.14~12.21 1800 2ZR-FXE ZWR80 OE117J A1027   AC111J
01.14~12.21 2000 3ZR-FAE ZRR80 OE117J A1013   AC111J
01.14~12.21 2000 3ZR-FAE ZRR85 OE117J A1013 FS2100A AC111J JT544K

TOYOTA   »   Passo

06.04~02.10 1000 1KR-FE KGC10 OE117J A196J FS21010 AC107J JT462K
05.04~02.10 1000 1KR-FE KGC15 OE117J A196J FS21010 AC107J JT462K
02.10~04.16 1000 1KR-FE KGC30 OE117J A196J FS21010 AC108J JT529
02.10~04.16 1000 1KR-FE KGC35 OE117J A196J FS21010 AC108J JT529
04.16~ 1000 1KR-FE M700A OE117J A21031   AC108J JT529
04.16~ 1000 1KR-FE M710A OE117J A21031   AC108J JT529
02.10~04.16 1300 1NR-FE NGC30 OE117J A197J FS21010 AC108J JT529
06.04~02.10 1300 K3-VE QNC10 OE117J A741J FS21010 AC702J JT462K
10.08~03.12 1500 3SZ-VE M502E OE117J A741J   AC108J JT462K
10.08~03.12 1500 3SZ-VE M512E OE117J A741J   AC108J JT462K

TOYOTA   »   Porte/Spade

07.12~07.15 1300 1NR-FE NSP140 OE117J A197J PI1024FS2112PFR1025 AC108CAC108J JT570

TOYOTA   »   Prius

04.09~11.15 1800 2ZR-FXE ZVW30 OE117J A1027 FS2107FS6303API1011 AC108JAC108C
04.09~12.15 1800 2ZR-FXE ZVW30L OE117J A1027 PI1008 AC108JAC108C
04.09~11.15 1800 2ZR-FXE ZVW30R OE117J A1027 FS6303AFS2107 AC108JAC108C
11.15~12.18 1800 2ZR-FXE ZVW50 OE117J A21031 PI1024FS2123 AC111J
11.15~12.18 1800 2ZR-FXE ZVW50L OE117J A21031 FS2123 AC111J
11.15~11.22 1800 2ZR-FXE ZVW50R OE117J A21031 FS2123 AC111J
11.15~11.22 1800 2ZR-FXE ZVW51 OE117J A21031 PI1024FS2123 AC111CAC111J
11.15~11.22 1800 2ZR-FXE ZVW55 OE117J A21031 PI1024FS2123 AC111JAC111C

TOYOTA   »   Prius Alpha

03.12~ 1800 2ZR-FXE ZVW40R OE117JC110J A1027 FS2133PI1011 AC108CAC108J
04.11~ 1800 2ZR-FXE ZVW40W OE117JC110J A1027 PI1011PI1024FS2133 AC108JAC108C
04.11~ 1800 2ZR-FXE ZVW41W C110JOE117J A1027 PI1024PI1011FS2133 AC108CAC108J

TOYOTA   »   Prius PHV

01.12~12.16 1800 2ZR-FXE ZVW35 OE117J A1027 FS6303API1011PI1024FS2107 AC108J
12.09~12.16 1800 2ZR-FXE ZVW35L OE117J A1027 FS2107FS6303API1024PI1011 AC108J

TOYOTA   »   Prius Prime

09.16~11.22 1800 2ZR-FXE ZVW52L C110JOE117J A21031   AC111JAC111C

TOYOTA   »   Prius V

03.12~ 1800 2ZR-FXE ZVW40L OE117J A1027 FS2133 AC108CAC108J
03.12~ 1800 2ZR-FXE ZVW40R OE117J A1027 PI1024FS2133 AC108JAC108C
09.11~11.18 1800 2ZR-FXE ZVW41L OE117JC110J A1027 FS2133 AC108JAC108C

TOYOTA   »   Probox

09.14~ 1300 1NR-FE NSP160V OE117J A197J FR1019PI1024FS6301 AC108CAC108J JT570

TOYOTA   »   Ractis

12.08~05.14 1300 1NR-FE NSP120 OE117J A197J FS2112PFR1025PI1024 AC108CAC108J JT570
11.10~ 1300 1NR-FE NSP122 OE117J A197J   AC108J JT570

TOYOTA   »   Raize

11.19~ 1000 1KR-VET A200A OE117JC932J A1549   AC108C JT759K
11.19~ 1000 1KR-VET A210A C932JOE117J A1549   AC108C JT759K
08.21~ 1000 1KR-VET A250L OE117JC932J A1549   AC108C JT759K

TOYOTA   »   RAV 4

12.08~12.12 2000 3ZR-FAE ZSA30L OE117J A1013 FS21002FS6313A AC108J
12.08~12.12 2000 3ZR-FAE ZSA35L OE117J A1013 FS6313AFS21002 AC108J
12.12~ 2000 3ZR-FAE ZSA44L OE117J A1013 FS21002PI1011FS6313A AC108C JT21004JT494K
12.12~10.15 2000 3ZR-FAE ZSA44R OE117J A1013 FS21002FS6313A AC108C JT485K
12.12~09.19 2000 3ZR-FE ZSA42L OE117J A1013 FS21002PI1011FS6313A AC108C JT21004
12.12~12.18 2000 3ZR-FE ZSA42R OE117J A1013 FS6313API1011FS21002 AC108C JT21004
12.12~ 2000 3ZR-FE ZSA44L C110JOE117J A1013 FS6313AFS21002PI1011 AC108C JT544KJT21004

TOYOTA   »   Scion IM

06.15~05.18 1800 2ZR-AE ZRE186L OE117J A1013   AC108JAC108C JT539KJT527

TOYOTA   »   Scion IQ

05.11~06.15 1300 1NR-FE NGJ10L OE117J A1026   AC1505C JT605K

TOYOTA   »   Scion XD

06.07~07.14 1800 2ZR-FE ZSP110L OE117J A1013 PI1001FR1007   JT425K

TOYOTA   »   Sienta

01.15~ 1500 2NR-FKE NSP170 OE117J A1013   AC108C

TOYOTA   »   Spade

07.15~ 1500 2NRFKE NSP141 OE117J A1013 FS2112PPI1024FR1025 AC108JAC108C JT539NK
07.15~12.20 1500 2NRFKE NSP141R OE117J A1013 FS2112PFR1025PI1024 AC108CAC108J JT539NK

TOYOTA   »   Tank/Roomy

11.16~ 1000 1KR-VET M900A OE117J A1538   AC108C JT529
11.16~09.20 1000 1KR-VET M910A OE117J A21031   AC108CAC108J JT529

TOYOTA   »   Townace

06.07~ 2000 3ZR-FE ZRR70G OE117J A1013
06.07~ 2000 3ZR-FE ZRR70W OE117J A1013

TOYOTA   »   Urban Cruiser

01.09~04.16 1300 1NR-FE NSP110 OE117J A197J PI1011 AC108J

TOYOTA   »   Verso

02.09~10.17 1600 1ZRFAE ZGR20L OE117J A1013
02.09~10.17 1600 1ZRFAE ZGR20R OE117J A1013
02.09~10.17 1800 2ZRFAE ZGR21L OE117J A1013 PI1011 AC108J JT601KJT527
02.09~10.17 1800 2ZRFAE ZGR21R OE117J A1013   AC108J JT601KJT527

TOYOTA   »   Verso-S

11.10~04.15 1300 1NR-FE NSP120 OE117J A197J FS2211P
11.10~04.15 1300 1NR-FE NSP120L OE117J A197J PI1024FR1025FS2112P AC108J JT570
11.10~04.15 1300 1NR-FE NSP120R OE117J A197J FS2112PFR1025PI1024 AC108J JT570
04.09~ 1600 1ZR-FAE ZGR20 OE117J A1013   AC108J

TOYOTA   »   Vitz

10.10~04.14 1000 1KR-FE KSP130 OE117J A196J FS2112PFR1025PI1024 AC108J JT21003K
02.05~12.10 1000 1KR-FE KSP90 OE117J A196J FS21003FS2100API1011 AC108J JT21003K
01.10~ 1300 1NR-FE NSP130 OE117J A197J FR1025PI1024FS2112P AC108J JT570
12.10~04.14 1300 1NR-FE NSP135 OE117J A197J FS2111PI1011 AC108JAC108C JT494K

TOYOTA   »   Voxy

04.10~ 2000 3ZR-FAE ZRR70G OE117J A1013     JT527
06.07~04.10 2000 3ZR-FE ZRR70G OE117J A1013     JT527JT531K
06.07~04.10 2000 3ZR-FE ZRR70W OE117J A1013     JT527

TOYOTA   »   Wish

03.09~11.17 1800 2ZR-FAE ZGE20G OE117J A1013 PI1005FR1019FS6302 AC108J JT494KJT527JT539NK
06.10~11.17 1800 2ZR-FAE ZGE20R OE117J A1013 FS6302 AC108J JT527JT494K
03.09~11.17 1800 2ZR-FAE ZGE20W OE117J A1013 PI1005FR1019FS6302 AC108J JT494KJT527JT539NK
03.09~04.12 1800 2ZR-FAE ZGE25G OE117J A1013 FS6302 AC108J JT21003KJT527JT494K
03.09~04.12 1800 2ZR-FAE ZGE25W OE117J A1013 FS6302PI1005FR1019 AC108J JT527JT426K
03.09~04.12 2000 3ZR-FAE ZGE21G OE117J A1013 PI1005FS6302FR1019 AC108J JT527JT426KJT485K
03.09~04.12 2000 3ZR-FAE ZGE21R OE117J A1013 PI1005FR1019FS6302 AC108J JT426KJT527JT485K
03.09~ 2000 3ZR-FAE ZGE22W OE117J A1013 PI1005FR1019FS6302 AC108J JT527JT485K

TOYOTA   »   Yaris

01.20~ 1000 1KR-FE KSP210 OE117J A9404   AC111J JT740K
01.20~ 1000 1KR-FE KSP211 OE117J A9404   AC111J JT740K
07.13~ 1200 3NR-FE NSP152R OE117JC110J A3027 FS2112PFR1025 AC108JAC108C JT570
09.11~ 1300 1NR-FE KSP130 OE117JC110J A197JA196J   AC108J
07.11~07.14 1300 1NR-FE NSP130R OE117J A197J   AC108J

TOYOTA   »   Yaris/Hybrid

07.11~03.17 1300 1NR-FE NSP130L OE117J A197J PI1011FR1025 AC108J JT570
07.11~03.17 1300 1NR-FE NSP130R OE117J A197J   AC108J
03.17~06.20 1500 2NR-FKE NSP131L OE117J A1013 PI1011FR1025 AC108J JT539K
03.17~ 1500 2NR-FKE NSP131R OE117J A197J   AC108J

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
