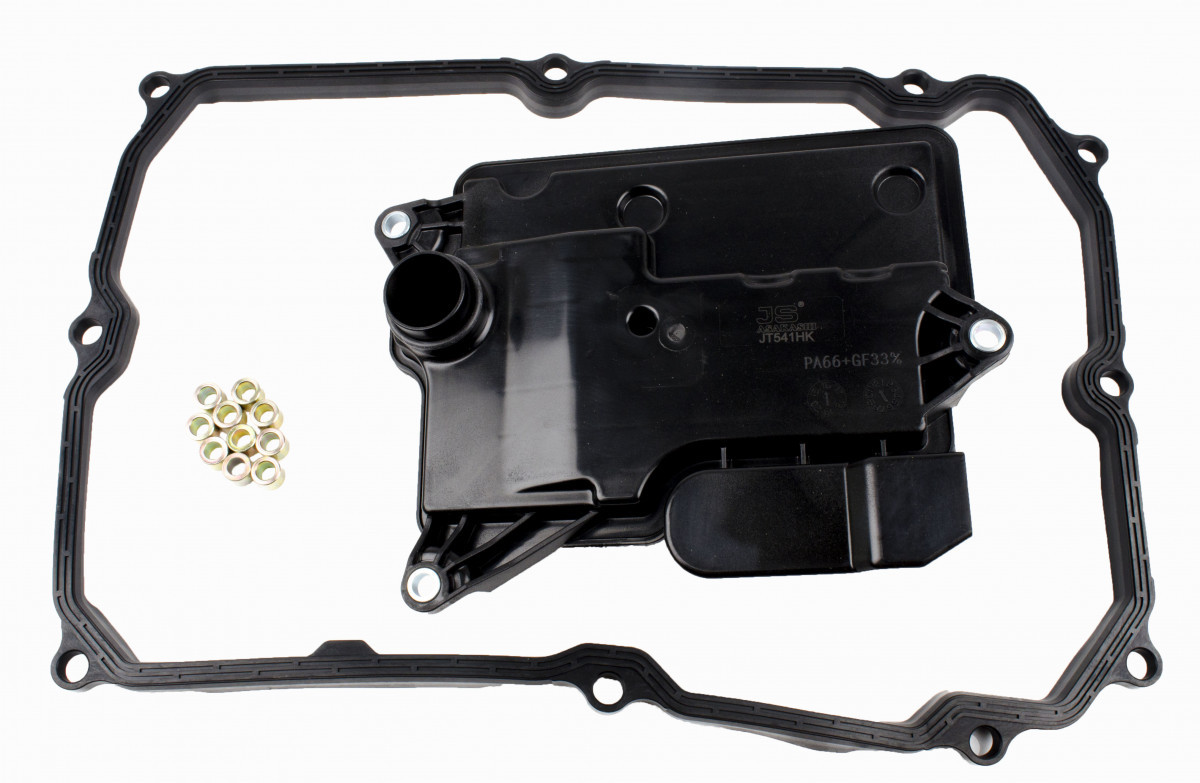

TRANSMISSION FILTER » JT541HK

Feedback information
JT541HK

Specification

Height (mm)
72
Size A
217
Size B
166
Transmission Numbers
AC60F, AC60E, V6AWH
Notes
Transmission Type：AC60F,AC60E,V6AWH 4WD (TUBE HEIGHT: 2.75CM)

Variation

JT541K[JS]

Cross reference

ISUZU
8-98341-789-0
MG
10504867
MITSUBISHI
2804A059
TOYOTA
35330-04010
TOYOTA
35330-0K010
TOYOTA
35330-26010
TOYOTA
35330-71010
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

CHEVROLET (GM)   »   D-Max

06.12~ 2500 4JK1-TCY TFR86 C0076 A9618 FE193J AC3507C JT541HK
06.12~ 2500 4JK1-TCY TFS86 C0076 A9618 FE193J AC3507C JT541HK

ISUZU   »   D-Max

01.16~ 1900 RZ4E-TC TF_87 OE0122 A0622 FE193J AC3507C JT541HK
07.20~ 3000 4JJ3-TCX TFS40 RHD C0076 A9618 FE193J AC3507CAC0302 JT541HK

ISUZU   »   MU-X

11.17~ 1900 RZ4E-TC UCR OE0122 A0622 FE193J AC3507C JT541HK
11.20~ 3000 4JJ1-TCX UCS40 C0076 A9618 FE193J AC0302 JT541HK

ISUZU   »   Pickup TFR

10.18~ 2500 4JK1-TCX TFS86 C0076 A0622 FE193J AC3507C JT541HKJT435K

MAZDA   »   BT-50

06.20~ 3000 4JJ3-TCX MP2TFS40 C0076 A9618 FE193J AC3507CAC0302 JT541HK

MITSUBISHI   »   L200

06.19~ 2200 4N14 KK6T C225J A1519 FE0053FE193J AC3507 JT541HK
06.19~ 2200 4N14 KL6T C225J A1519 FE193JFE0053 AC3507 JT541HK
07.15~05.19 2400 4N15 KL1T C415J A1519 FE0053FE193J AC3507 JT437KJT541HK
06.19~ 2400 4N15 KL1T C225J A1519 FE193JFE0053 AC3507 JT541HK

TOYOTA   »   Dyna

08.21~ 2800 1GD-FTV GDY231R C111T A147J FC158HFE1033 AC933JAC1510 JT541HK

TOYOTA   »   Fortuner

01.16~ 2400 2GD-FTV GUN155R C111T A1531 FE0067 AC111C JT541HK
07.15~04.21 2400 2GD-FTV GUN165R C111T A1531 FE0067 AC111CAC111J JT541HK
07.20~ 2400 2GD-FTV GUN166L C111T A1531 FE0067 AC111C JT541HK
03.16~ 2400 2GD-FTV GUN166R C111T A1531 FE0067 AC111C JT541HK
01.16~ 2700 2TR-FE TGN156L C111T A1531 FS3213 AC111J JT541HK
05.16~ 2700 2TR-FE TGN156R C111T A1531 FS3213 AC111J JT541HK
01.16~ 2700 2TR-FE TGN166L C111T A1531 FS3213 AC111J JT541HK
01.16~ 2700 2TR-FE TGN166R C111T A1531 FS3213 AC111J JT541HK
07.15~ 2800 1GD-FTV GUN156L C111T A1531 FE0067FE1033 AC111C JT541HK
07.15~ 2800 1GD-FTV GUN156R C111T A1531 FE0067 AC111C JT541HK
12.15~ 4000 1GR-FE GGN155L C114T A1531A1513 FS9094 AC111C JT541HK

TOYOTA   »   GranAce

12.19~ 2800 1GD-FTV GDH303W OE116J A1543 FE1033FE0067 AC111C JT541HK

TOYOTA   »   Hiace

01.05~ 2700 2TR-FE TRH223B C111T A170JA1514 FS2128FS2104 AC109J JT541KJT436K
08.04~ 2700 2TR-FE TRH229W OE116J A1530A1514A170J FS2104FS2128 AC108J JT541KJT436K
01.17~ 2800 1GD-FTV GDH201R C111T A1530 FE1033FE0053 AC108J JT541K
02.19~ 2800 1GD-FTV GDH300R C111T A1543 FE0067FE1033 AC111J JT541HK
02.19~ 2800 1GD-FTV GDH301L C111T A1543 FE1033FE0067 AC111JAC111C JT541HK
12.19~ 2800 1GD-FTV GDH303 C111T A1543 FE1033FE0067 AC111CAC111J JT541HK
07.19~ 2800 1GD-FTV GDH306L C111T A1543 FE0067FE1033 AC111CAC111J JT541HK
07.19~ 2800 1GD-FTV GDH306R C111T A1543 FE0067 AC111CAC111J JT541HK
02.19~ 2800 1GD-FTV GDH320R C111T A1543 FE1033FE0067 AC111J JT541HK
03.19~ 2800 1GD-FTV GDH322L C111T A1543 FE0067FE1033 AC111J JT541HK
03.19~ 2800 1GD-FTV GDH322R C111T A1543 FE1033FE0067 AC111J JT541HK
02.19~ 3500 7GRFKS GRH320L OE118J A1543   AC111J JT541HK

TOYOTA   »   Hiace Commuter

01.06~ 2700 2TR-FE TRH223R C111T A170J FS2104 AC109J JT541K

TOYOTA   »   Hiace Regius

09.07~ 2700 2TR-FE TRH211K OE116J A1514A170J FS2104 AC108J JT541KJT436K
08.04~ 2700 2TR-FE TRH214W OE116J A1514A170J FS2104 AC108J JT541KJT436K
09.07~ 2700 2TR-FE TRH216K OE116J A1514A170J FS2104 AC108J JT541KJT436K
01.05~ 2700 2TR-FE TRH221K OE116J A1514A170J FS2104FS2128   JT541KJT436K
01.05~ 2700 2TR-FE TRH224W OE116J A170JA1514A1530 FS2104   JT541KJT436K
01.05~ 2700 2TR-FE TRH226 OE116J A170JA1514A1530 FS2104FS6303A AC108J JT541KJT436K
01.05~ 2700 2TR-FE TRH228B OE116J A170JA1514 FS2104 AC108J JT436KJT541K
12.17~ 2800 1GD-FTV GDH201V- OE116J A1530 FE0053 AC108J JT541K
01.18~ 2800 1GD-FTV GDH206V- OE116J A1530 FE1033FE0053 AC108J JT541K
12.17~ 2800 1GD-FTV GDH211K OE116J A1530 FE0053 AC108J JT541K
12.17~ 2800 1GD-FTV GDH223B OE116J A1530 FE0053 AC108J JT541K

TOYOTA   »   Hilux

09.18~ 2400 2GD-FTV GUN120R C111T A1531 FE0067 AC111CAC111J JT541HK
05.15~ 2400 2GD-FTV GUN122L C111T A1531 FE0067FE1033 AC111JAC111C JT541HK
05.15~ 2400 2GD-FTV GUN122R C111T A1531 FE0067 AC111CAC111J JT541HK
05.17~ 2400 2GD-FTV GUN125 OE116J A1531 FE1033FE0067 AC111J JT541HK
05.15~ 2400 2GD-FTV GUN125L C111T A1531 FE0067FE1033 AC111J JT541HK
05.15~ 2400 2GD-FTV GUN125R C111T A1531 FE1033FE0067 AC111J JT541HK
05.15~ 2400 2GD-FTV GUN135L C111T A1531 FE1033FE0067 AC111JAC111C JT541HK
05.15~ 2400 2GD-FTV GUN135R C111T A1531 FE0067FE1033 AC111CAC111J JT541HK
06.15~ 2700 2TR-FE TGN121L C111T A1531   AC111J JT541HK
06.15~ 2700 2TR-FE TGN121R C111T A1531   AC111J JT541HK
11.15~ 2700 2TR-FE TGN126L C111T A1531 FS3213 AC111JAC111C JT541HK
01.21~ 2700 2TR-FE TGN127L C111T A1531 FS3213 AC111JAC111C JT541HK
07.16~ 2700 2TR-FE TGN128L C111T A1531 FS3213 AC111JAC111C JT541HK
05.15~ 2700 2TR-FE TGN136L C111T A1531 FS3213 AC111J JT541HK
07.16~ 2700 2TR-FE TGN138L C111T A1531 FS618J AC111J JT541HK
05.15~ 2800 1GD-FTV GUN126L C111T A1531 FE0067 AC111C JT541HK
05.15~ 2800 1GD-FTV GUN126R C111T A1531 FE0067 AC111C JT541HK
05.15~ 2800 1GD-FTV GUN136R C111T A1531 FE0067 AC111C JT541HK
05.15~ 3000 1KD-FTV KUN136   A1531 FE0067 AC111C JT541HK
05.15~05.18 4000 1GRFE GGN120R C114T A1531 FS9094 AC111J JT541HK
08.17~ 4000 1GRFE GGN125L C114T A1531 FS9094 AC111JAC111C JT541HK
05.15~ 4000 1GRFE GGN125R C114T A1531 FS9094 AC111CAC111J JT541HK
01.16~ 4000 1GRFE GGN135R C114T A1531 FS9094 AC111JAC111C JT541HK

TOYOTA   »   Hilux Champ

12.23~ 2400 2GD-FTV GUN122L C111T   FE1033FE0067 AC111J JT541HK

TOYOTA   »   Innova

07.16~ 2000 1TR-FE TGN140L C111T A1531 FS3213 AC111C JT541HK
11.15~ 2700 2TR-FE TGN141L C111T A1531 FS3213 AC108J JT541HK
04.16~ 2800 1GD-FTV GUN143L C111T A1531 FE0067 AC111C JT541HK

TOYOTA   »   Land Cruiser 300

04.21~ 4000 1GR-FE GRJ300 OE116J A1550   AC0296CAC0296 JT541HK

TOYOTA   »   Land Cruiser Prado 150

08.09~ 2700 2TR-FE TRJ150W OE116J A194J FR1012FS2125PI1021FS3213FR1009 AC108J JT435KJT541HK
06.15~ 2800 1GD-FTV GDJ150 C111TOE116J A1532 FC158H AC108JAC108C JT541HK
06.15~ 2800 1GD-FTV GDJ151W OE116J A1532 FC158HFE1033 AC108J JT541HK
06.15~ 2800 1GD-FTV GDJ155 C111T A1532 FC158H AC108J JT541HK

TOYOTA   »   Land Cruiser Prado 250

01.24~ 2700 2TR-FE TRJ250 C111T A1523   AC0296AC0296C JT541HK

TOYOTA   »   Tacoma (USA)

09.04~ 2700 2TR-FE TRN245 C111T A21032   AC1515 JT541HKJT435K
09.04~09.19 2700 2TR-FE TRN265L C111T A21032   AC1515 JT435KJT541HK
08.15~ 3500 2GR-FKS GRN305L OE118J A1546   AC1515 JT541HK
08.15~ 3500 2GR-FKS GRN310L OE118J A1546   AC1515 JT541HK
08.15~ 3500 2GR-FKS GRN325L OE118J A1546   AC1515 JT541HK
