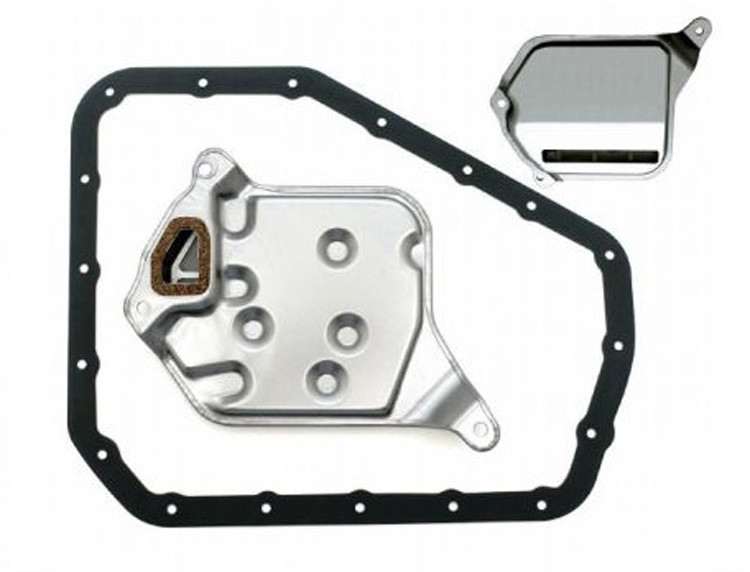

TRANSMISSION FILTER » JT516K
Feedback information
Specification
Size A
210
Size B
180
Height (mm)
38
Transmission Numbers
AW80-40, AW81-40, U440E, U441E
Notes
Transmission Type：AW80-40/AW81-40, U440E, U441E
Cross reference
SUZUKI
26445-79C10
SUZUKI
26445-79C10-000
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
MARUTI SUZUKI » RITZ
| 04.09~09.12 | 1200 | K12M | C706J | A2911 | JT516K | |||
| 09.12~ | 1200 | K12M | C706J | A2907 | JT516K | |||
| 04.09~09.12 | 1300 | D13A | OE0068 | A0465 | JT516K | |||
| 09.12~ | 1300 | D13A | OE0068 | A0465 | JT516K |
MARUTI SUZUKI » SWIFT
| 08.11~02.18 | 1200 | K12M | AZI412 | C706J | A2907 | FS716J | AC2904AC933J | JT516K |
| 08.11~ | 1300 | D13A | OE0068 | A0465 | JT516K |
MARUTI SUZUKI » SWIFT DZIRE
MARUTI SUZUKI » SX4
| 02.11~02.13 | 1300 | D13A | OE0068 | JT516K | ||||
| 05.07~09.09 | 1600 | M16A | JT516K | |||||
| 09.09~02.13 | 1600 | M16A | JT516K | |||||
| 08.10~02.13 | 1600 | M16A | JT516K |
SUZUKI » Aerio
| 11.01~03.07 | 1500 | M15A | RA21S | C933J | A965JA969J | FS29001 | AC403J | JT516K |
| 01.01~06.06 | 1500 | M15A | RB21S | C933J | A969JA965J | FS29001 | AC403J | JT516KJT250K |
| 01.03~03.07 | 1600 | M16A | RC31S JPN | C933J | A969J | AC403J | JT516K | |
| 06.03~12.07 | 1600 | M16A | RH416 | C933J | A969J | FS29001 | AC403J | JT516K |
| 01.03~06.06 | 1800 | M18A | RD51S | C933J | A969J | FS29001 | AC403J | JT516K |
SUZUKI » Alto
SUZUKI » Chevrolet Cruze
| 10.01~11.03 | 1300 | M13A | HR51S | C933J | A967J | PI1006FS7090FR1012 | AC932J | JT516K |
| 11.01~06.08 | 1300 | M13A | HR52S | C933J | A967J | FS7090 | AC932J | JT516K |
| 10.01~11.03 | 1500 | M15A | HR81S | C933J | A967J | PI1006FS7090FR1012 | AC932J | JT516K |
SUZUKI » Chevrolet MW
SUZUKI » Dzire
SUZUKI » Ignis
SUZUKI » Liana
SUZUKI » Solio
SUZUKI » Splash
SUZUKI » Swift
| 08.11~02.20 | 1200 | K12M | SDN LHD | C706J | A2916 | AC2515 | JT516K | |
| 06.03~11.04 | 1500 | M15A | HT81S | C933J | A9507 | PI1006FS7090FR1012 | AC932J | JT516K |
| 09.10~01.17 | 1600 | M16A | ZC32S JPN | C933J | A243PU | FS7091 | AC29001 | JT516K |
SUZUKI » Swift III
| 11.04~12.10 | 1300 | M13A | EZC11S RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 03.04~04.08 | 1300 | M13A | RS413-3 RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 03.08~01.11 | 1300 | M13A | RS413-4 | C933J | A971J | FS7091 | AC933J | JT516K |
| 11.04~12.10 | 1300 | M13A | ZC11S JPN | C933J | A971J | FS7091 | AC933J | JT516K |
| 11.04~09.10 | 1300 | M13A | ZD11S | C933J | A971J | FS7091 | AC933J | JT516K |
| 01.04~03.08 | 1500 | M15A | RS415-1 LHD | C933J | A9505A971J | FS7091 | AC933J | JT516K |
| 01.04~03.08 | 1500 | M15A | RS415-3 LHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 03.08~01.11 | 1500 | M15A | RS415-4 LHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 11.04~09.10 | 1500 | M15A | ZC21S | C933J | A971J | FS7091 | AC933J | JT516K |
| 01.03~12.07 | 1500 | M15A | ZC21S RS415-1 RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 12.07~01.11 | 1500 | M15A | ZC21S RS415-3.4 RHD | C933J | A971J | FS7091 | AC933J | JT516K |
| 01.05~09.10 | 1600 | M16A | EZC31S | C933J | A971J | FS7091 | AC933J | JT516K |
| 09.05~09.10 | 1600 | M16A | ZC31S JPN | C933J | A971J | FS7091 | AC933J | JT516K |
SUZUKI » Swift IV
| 08.11~02.18 | 1200 | K12M | AZI412 SDN | C706J | A2907 | FS716J | AC933J | JT516K |
| 08.11~02.18 | 1200 | K12MN | ZC62S HB RHD | C706J | A2907 | FS716J | AC933JAC2904 | JT516K |
| 08.11~02.18 | 1200 | K12MN | ZC62S HB RHD | C706J | A2907 | FS716J | AC2904AC933J | JT516K |
| 08.11~01.15 | 1200 | K12MN | ZF62S SDN RHD | C706J | A2907 | FS716J | AC933J | JT516K |
| 12.12~ | 1400 | K14 | AZF414 | C932J | A29001 | JT516K | ||
| 03.10~ | 1400 | K14B | AZG414 | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 03.10~ | 1400 | K14B | ZC82S LHD | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 03.10~03.13 | 1400 | K14B | ZC82S RHD | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 03.13~02.17 | 1400 | K14B | ZC82S RHD | C932J | A29001 | FS7091 | AC29001 | JT516K |
| 12.11~ | 1600 | M16A | EZC32S | C933J | A243PU | FS7091 | AC29001 | JT516K |
| 10.09~02.13 | 1600 | M16A | ZA32S LHD | C933J | A243PU | AC933J | JT516K | |
| 10.09~02.13 | 1600 | M16A | ZC32S LHD PR | C933J | A243PU | AC933J | JT516K | |
| 12.11~ | 1600 | M16A | ZC3B | C933J | A243PU | FS7091 | AC29001 | JT516K |
SUZUKI » SX-4
| 05.06~ | 1500 | M15A | YA11S | C933J | A243PUA991J | FS2902PFS6303A | AC982J | JT516K |
| 05.06~10.14 | 1500 | M15A | YB11S | C933J | A991J | FS6303AFS2902P | AC982J | JT516K |
| 06.07~ | 1500 | M15A | YC11S | C933J | A243PUA991J | FS2902PFS6303A | AC982J | JT516K |
| 06.06~12.15 | 1600 | 9HX | YY5 | OE0077 | A0331 | FS1028 | AC933J | JT516K |
| 07.06~03.16 | 1600 | M16A | GYA21S | C933J | A991J | FS2902PFS6303A | AC982J | JT516KJT621K |
| 06.06~12.15 | 1600 | M16A | GYC21S SDN | C933J | A991JA243PU | FS6303AFS2902P | AC982J | JT516K |
| 06.06~12.11 | 1600 | M16A | RW416 MAGYAR | C933J | A991J | AC933J | JT516K | |
| 02.08~11.11 | 1600 | M16A | RW416-4,5 HB RHD | C933J | A243PU | FS2902PFS6303A | AC982J | JT516K |
| 11.11~12.15 | 1600 | M16A | RW416-6 RHD | C933J | A243PU | FS2902PFS6303A | AC982J | JT621KJT516K |
| 07.09~01.16 | 2000 | D20AA | GY | OE0078 | A0493 | FE1020 | AC933J | JT516K |
