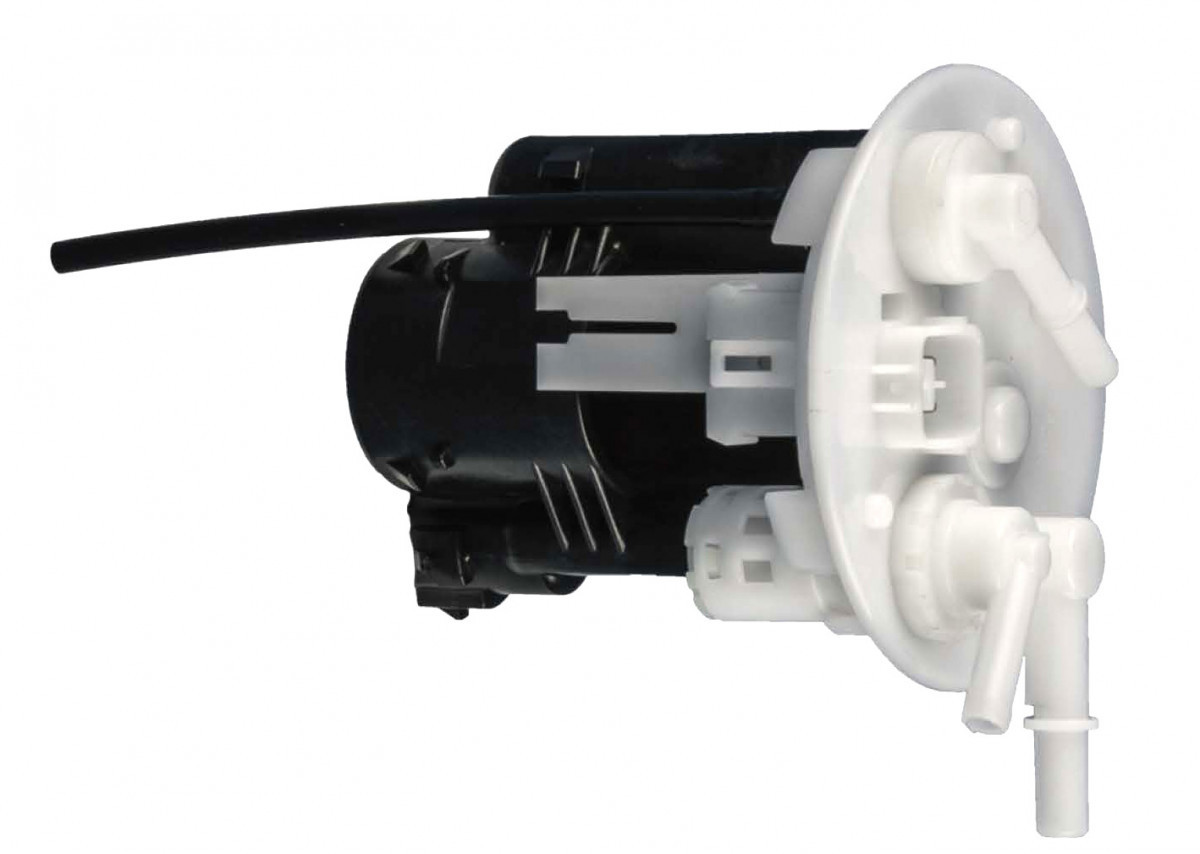

FUEL FILTER (IN-TANK) » FS29001

Feedback information

Specification

Length 1/ Length 2
144
Outer Diameter 1/ Outer Diameter 2
135
Diameter 1/ Diameter 2 [mm]
112

Couple filter

FS7004[JS]

Cross reference

SUZUKI
15310-54G00
SUZUKI
15310-54G00-000
SUZUKI
15310-54G01
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

MARUTI SUZUKI   »   ZEN

01.93~01.03 1000 G10B   C932J A959J FS7004   JT147K
06.04~03.06 1000 G10B   C932J A959J FS7004   JT147K
01.93~01.03 1600 TUD5       FS7004   JT147K

MARUTI SUZUKI   »   ZEN CLASSIC

08.99~01.03 1000 G10B   C932J A959J FS7004   JT147K

MAZDA   »   AZ - Wagon

04.97~10.98 660 K6A# CY51S C932J A948J FS7004

SUZUKI   »   Aerio

11.01~03.07 1500 M15A RA21S C933J A965JA969J FS29001 AC403J JT516K
01.01~06.06 1500 M15A RB21S C933J A965JA969J FS29001 AC403J JT516KJT250K
06.03~12.07 1600 M16A RH416 C933J A969J FS29001 AC403J JT516K
01.03~03.07 1800 M18A RC51S C933J A969J FS29001 AC403J JT250K
01.03~06.06 1800 M18A RD51S C933J A969J FS29001 AC403J JT516K
01.02~12.07 2000 J20A RC#1H C933J A969J FS29001   JT250K
11.03~01.08 2300 J23A RA62S SDN LHD C933J A969J FR1009FS29001
01.02~01.08 2300 J23A RH423 C933J A969J FS29001   JT250K

SUZUKI   »   Alto

03.94~05.02 1000 G10B EFB11S C932J A959J FS7004
06.02~04.04 1100 F10D FF21 C932J A961J FS7004

SUZUKI   »   Liana

03.01~12.07 1300 M13A ERA11S SDN C933J A969J FS29001 AC403J
03.01~12.07 1300 M13A ERC11S HB C933J A965J FS29001FS7004 AC403J JT250K
08.04~01.08 1600 M16A 2RC31S HB LHD C933J A969J FS29001 AC403J JT516K
01.01~01.08 1600 M16A ERC31S HB C933J A971J FS29001 AC403J JT516K
01.01~01.08 1800 M18A RH418 C933J A969J FS29001

SUZUKI   »   Wagon R

09.93~10.98 660 F6A# CT21S C932J A948J FS7296FC946JFS7004
09.93~10.98 660 F6A# CV21S C932J A948J FS7004FS7296FC946J
04.97~10.98 660 K6A# CT51S C932J A948J FS7296FC946JFS7004
04.97~10.98 660 K6A# CV51S C932J A948J FS7296FC946JFS7004

SUZUKI   »   Wagon R+

06.97~06.00 1000 K10A SR410 C527JC932J A961J FS7004FS29002

Exemption from liability: the catalog data is advisory and can be used for reference only
