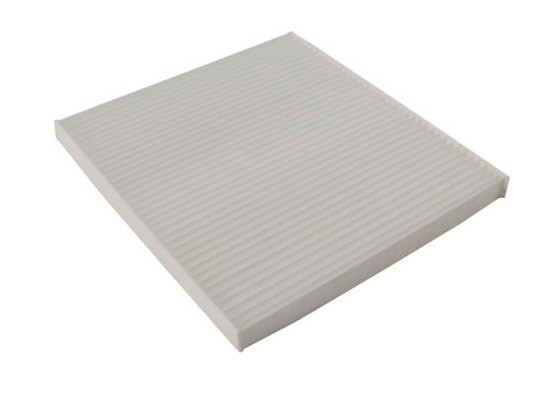

CABIN FILTER » AC9312

Feedback information
AC9312

Specification

Length
225
Width
201
Structure Material
Synthetic Fiber
Thickness
17

Variation

AC9312C[JS] AC9312B[JS]

Cross reference

HYUNDAI
2SF79 AQ000
HYUNDAI
97133-1S000
HYUNDAI
97133-2E010
HYUNDAI
97133-2E200
HYUNDAI
97133-2E210
JAC
8114010U8520
JAC
8126100U1910-F011
JAC
8126100U8510-25
KIA
08790-2E200A
KIA
97133-2E200
KIA
97133-2E210
KIA
P87901F200
KIA
P87901F200A
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

HYUNDAI   »   Accent 11

10.10~10.14 1400 G4FA PSB11 SDN LHD C304J A9614 PI1023FS11004 AC9312 JT472K
10.10~10.14 1400 G4FA PSB11 SDN RHD C304J A9614 PI1023FS11004 AC9312 JT472K
11.11~09.14 1400 G4FA SB HB C304J A9614 FS11004PI1023 AC9312
09.11~05.14 1400 G4LC CT41 LHD C901J A9614 PI1023FR1015FS11004 AC9312 JT582
09.11~05.14 1400 G4LC CT41 RHD C901J A9614 PI1023FS11004 AC9312 JT582
11.10~12.14 1600 D4FB PSB11 SDN DOM OE0073 A9614 FC9304 AC9312 JT472K
01.11~12.14 1600 D4FB SB OE0073 A9614 FC9304 AC9312 JT472K
09.11~05.14 1600 G4FC PSB11 HB C304J A9614 PI1023FS11004 AC9312 JT472K
09.11~05.14 1600 G4FC PSB11 HB LHD PR C304J A9614 PI1023FS11004 AC9312 JT472K
09.11~05.14 1600 G4FC PSB11 SDN C304J A9614 PI1023FS11004 AC9312 JT472K
09.11~05.14 1600 G4FD SB C304J A9614 FS11001FS9311 AC9312 JT493

HYUNDAI   »   Accent 15

01.14~01.19 1400 G4LC CT41 RHD C901J A9614 FS9312 AC9312 JT582JT582H
01.14~01.20 1400 G4LC CT41 SDN LHD C901J A9614 FS9312 AC9312 JT582
01.14~01.19 1400 G4LC CT51 C901J A9614 FS9312 AC9312 JT582H
01.14~01.19 1400 G4LC CU41 SDN RHD C901J A9614 FS9312 AC9312 JT582H
09.14~02.20 1600 D4FB PSB15 LHD OE0073 A9614 FC9304 AC9312
05.14~11.17 1600 G4FC PSB15 SDN C304J A9614 FS9312 AC9312

HYUNDAI   »   Genesis Coupe

11.08~03.12 2000 G4KF DK08 C304J A0498 FS0081 AC9312
03.12~12.16 2000 G4KF DK12 US C304J A0558 FS11004 AC9312 JT657
11.08~03.12 3800 G6DA DK08 GNRL OE0073 A0498 FS0081 AC9312
11.08~03.12 3800 G6DA DK08 US OE0073   FS0081 AC9312
03.12~08.14 3800 G6DA DK12 OE0073 A0559   AC9312 JT657

HYUNDAI   »   HB 20

09.19~ 1000 F3LC BR2 C901J A9331   AC9312 JT581JT732

HYUNDAI   »   HB 20S

09.19~ 1600 F4FA BR2 C304J A9331   AC9312 JT581JT732

HYUNDAI   »   i20

12.14~08.20 1200 G4LA BL51 5DR RHD C901J A9329 FS9312 AC9312
11.14~06.18 1200 G4LA PC715 RHD C901J A9329 FS9312 AC9312 JT472K
11.14~06.18 1400 D4FC PC715 RHD OE0073 A9329 FC9304 AC9312
11.14~06.18 1400 G4LC PC715 RHD C901J A9329 FS9312 AC9312 JT472K
06.18~08.20 1400 G4LC PC718 LHD C901J A9329 FS9312 AC9312 JT472K
06.18~08.20 1400 G4LC PC718 RHD C901J A9329 FS9312 AC9312 JT472K

HYUNDAI   »   i40

01.18~ 1600 D4FE PDF18 OE0155 A9323 FC9303 AC9312
01.15~01.18 1600 G4FD PDF15 SDN LHD C307J A9323 FS9317FR1012 AC9312
01.18~ 1600 G4FD PDF18 C307J A9323 FS11001 AC9312
02.11~09.17 1600 G4FD VF C307J A9323 FS11001 AC9312
02.11~06.15 1700 D4FD DF OE0073 A9323 FC9303 AC9312 JT493
02.11~06.15 1700 D4FD LC81 WGN LHD EU OE0073 A9323 FC9303 AC9312 JT493
02.11~06.15 1700 D4FD LC81 WGN LHD KDOM OE0073 A9323 FC9303 AC9312 JT493
01.15~01.18 1700 D4FD PDF15 SDN LHD OE0073 A9323 FC9303 AC9312
01.15~01.18 1700 D4FD PDF15 SDN RHD OE0073 A9323 FC9303 AC9312
02.11~06.15 2000 G4NA PDF12 SDN LHD C304J A9323 FR1012PI1021FS11001FR1009 AC9312 JT493
02.11~06.15 2000 G4NA PDF12 WGN LHD C304J A9323 FS11001FR1009FR1012PI1021 AC9312 JT493
02.11~06.15 2000 G4NA PDF12 WGN RHD C304J A9323 FR1009FR1012PI1021FS11001 AC9312 JT493
01.15~01.18 2000 G4NA PDF15 SDN LHD C304J A9323 FS11001FR1009FR1012PI1021 AC9312 JT493
02.11~06.15 2000 G4NC LC81 C304J A9323 FS11001 AC9312 JT493

HYUNDAI   »   iX 35

05.13~01.16 2000 D4HA PTM14 RHD OE0076 A9323 FC9304 AC9312
10.09~08.13 2000 D4HA TM10 AUS OE0076 A9323 FC9304 AC9312 JT11001
11.09~06.15 2000 G4KD LM C304J A9323 FS9219 AC9312 JT493
11.09~08.13 2000 G4KD TM10 LHD C304J A9323 FS9219PI1023 AC9312 JT493
11.09~08.13 2000 G4KD TM10 RHD C304J A9323 PI1023FS9219 AC9312 JT493
11.10~12.15 2400 G4KE LM C304J A9323 FS9219 AC9407CAC9312

HYUNDAI   »   Solaris 11

11.10~05.14 1600 G4FC SBR11 RUS C304J A9614 FS11004 AC9312 JT472K

HYUNDAI   »   Tucson 04

10.06~12.09 2000 D4EA JM04 LHD OE9304OE9301 A2517 FC9304 AC9312 JT214K
10.06~12.09 2000 D4EA JM04 RHD C0064 A2517 FC9304 AC9312AC9320SET JT214K
04.04~10.06 2000 D4EA PA04 C0064 A2517 FC9304 AC11001SETAC9312 JT214K
07.04~10.06 2000 D4EA PA04 LHD DOM C0064 A2517 FC9304 AC9312 JT214K
10.06~12.09 2000 G4GC JM04 LHD EU C304J A2517 FS9301PI1023 AC9312AC9407C JT214K
04.04~10.06 2000 G4GC PA04 RUS C304J A2517 PI1023FS9301 AC9312
10.06~12.09 2700 G6BA JM04 C304J A2517 FS9301 AC9312 JT214K
04.04~10.06 2700 G6BA PA04 C304J A2517 FS9301 AC9312 JT214K

HYUNDAI   »   Tucson 10

10.09~08.13 2000 D4HA TM10 LHD OE0076 A9323 FC9304 AC9312 JT11001
10.09~08.13 2000 D4HA TM10 RHD OE0076 A9323 FC9304 AC9312 JT11001
11.09~08.13 2000 G4KD TM10 LHD C304J A9323 PI1023FS9219 AC9312 JT493
11.09~08.13 2000 G4KD TM10 RHD C304J A9323 PI1023FS9219FS11004 AC9312 JT11001JT493
10.09~08.13 2400 G4KE TM10 LHD GL C304J A9323 PI1023FS9219 AC9312 JT493
10.09~08.13 2400 G4KE TM10 LHD US C304J A9323 PI1023FS9219 AC9312 JT493
10.09~08.13 2400 G4KE TM10 RHD C304J A9323 PI1023FS9219 AC9312 JT493

HYUNDAI   »   Tucson 14

08.13~05.15 2000 D4HA PTM14 LHD OE0076 A9323 FC9304 AC9312AC9407C JT11001
08.13~06.15 2000 G4NA PTM14 LHD C304J A9323 PI1023FS11004 AC9312 JT493
08.13~05.15 2000 G4NA PTM14 RHD C304J A9323 PI1023FS11004 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 LHD C304J A9323 PI1023FS11004 AC9312 JT493
08.13~06.15 2400 G4KE PTM14 RHD C304J A9323 FS11004PI1023 AC9312 JT493
08.13~06.15 2400 G4KJ PTM14 US C304J A9323 FS11004 AC9312 JT493

HYUNDAI   »   Veloster

01.12~01.15 1600 G4FD TC61D C307J A9614 FS11001 AC9312
01.15~02.18 1600 G4FD TC6AD C304J A9614 FS9311FR1012 AC9312
03.11~01.15 1600 G4FD TE61D C304J A9614 FR1012FS9311 AC9312
01.12~01.15 1600 G4FG TC61C C304J A9614 FS11001 AC9312 JT493
03.11~01.15 1600 G4FJ PGS11 RHD SG C304J A9614 FS9311 AC9312 JT493
03.11~01.15 1600 G4FJ PGS11 US C304J A9614 FS9311FR1012 AC9312 JT493
01.15~01.18 1600 G4FJ PGS15 RHD SG C304J A9614 FS9311 AC9312
01.15~02.18 1600 G4FJ PGS15 US C304J A9614 FS9311 AC9312

JAC   »   J7

07.20~ 1500 HFC4GB2.4E J7 C225J A0887   AC9312 JT571K

JAC   »   JS4

06.20~ 1500 HFC4GB2.4E   C225J A0887 FS9644 AC9312 JT571K

JAC   »   S2

08.15~ 1500 HFC4GB2.3D   C415J A0879 FS9644 AC9312

JAC   »   S3

09.16~ 1600 HFC4GB3-3D S3 C415J A0844 FS3208 AC9312 JT571K

KIA   »   Carens

06.10~12.12 1600 D4FB UN OE0073 A9321 FC9303 AC9312
08.09~12.12 1600 G4FC UN C304J A0244 FS9308 AC9312
10.06~12.12 2000 D4EA FG OE9304 A9321 FC9303 AC9312 JT214K
01.06~11.06 2000 G4KA BK C304J A0244 FS9308 AC9312 JT214K
10.06~12.12 2000 G4KA FG LHD C304J A0244 PI1023FS9308 AC9312 JT214K
10.06~12.12 2000 G4KA FG RHD C304J A0244 PI1023FS9308 AC9312 JT214K

KIA   »   Cerato

01.08~04.13 1600 G4FC FS41 SDN C304J A9320 FS9308PI1023 AC9312AC9320SET JT472K
01.08~04.13 1600 G4FC FU41 SDN LHD C304J A9320 PI1023FS9308 AC9312 JT472K
01.08~04.13 1600 G4FC FW41 SDN LHD C304J A9320 PI1023FS9308 AC9312 JT493JT472K
01.08~04.13 1600 G4FC FW61 COUPE LHD C304J A9320 PI1023FS9308 AC9312 JT472K
01.08~04.13 1600 G4FC FW61 COUPE RHD C304J A9320 FS9308 AC9312AC9320SET JT472K
01.09~04.13 2000 G4KD FW41 SDN C304J A9320 FS9308 AC9320SETAC9312 JT472K

KIA   »   Forte

05.08~09.13 1600 G4FC TD08 SDN KDOM C304J A9320 PI1023FS9308 AC9312AC9320SET JT472K
05.08~09.13 2000 G4KD TD08 SDN C304J A9320 FS9308PI1023 AC9312 JT472K

KIA   »   Rio 05

11.05~09.11 1400 G4EE DE22 C304J A9608 FS9307 AC9312 JT195K1
01.05~09.11 1400 G4EE DE24 C304J A9608 FS9307 AC9312
03.05~01.12 1400 G4EE DF41 SDN LHD C304J A9608 FS9307 AC9312 JT195K1
09.09~08.11 1400 G4EE DG41 SDN RHD C304J A9608 FS9307 AC9312 JT195K1
09.06~10.10 1400 G4EE DH41 SDN RHD C304J A9608 FS9307 AC9312 JT195K1
03.05~01.12 1400 G4EE DH51 HB RHD C304J A9608 FS9307 AC9312
03.05~01.12 1400 G4EE HB LHD C304J A9608 FS9307 AC9312
09.09~08.11 1500 D4FA EX OE0073 A9608 FC9303 AC9312
03.05~09.09 1500 D4FA TC05 HB LHD OE9302OE0073 A9608 FC0005FC9303 AC9312
11.05~09.11 1600 G4ED DE22 C304J A9608 FS9307 AC9312 JT195K1
01.05~09.11 1600 G4ED DE24 C304J A9608 FS9307 AC9312 JT195K1

KIA   »   Rio 12

03.11~05.15 1200 G4LA DN511 5DR HB RHD C901J A13001 FR1015PI1023FS11004 AC9312
03.11~05.15 1200 G4LA PIH12 4DR SDN RHD C901J A13001 FS11004PI1023 AC9312
09.11~ 1400 D4FC UB OE0073 A9614 FC9304 AC9312
01.11~01.14 1400 G4FA PIH12 3DR HB C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 4DR SDN LHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 4DR SDN RHD C304J A9614 FS11004PI1023FR1015 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 5DR HB LHD C304J A9614 PI1023FR1015FS11004 AC9312 JT472K
03.11~05.15 1400 G4FA PIH12 5DR HB RHD C304J A9614 FR1015FS11004PI1023 AC9312 JT472K

KIA   »   Rio 15

01.15~04.17 1200 G4LA DN511 5DR HB RHD C901J A13001 FS9312 AC9312
07.15~03.17 1200 G4LA PIH15 5DR HB LHD C901J A13001 FS9312 AC9312
07.15~03.17 1200 G4LA PIH15 SDN LHD C901J A13001 FS9312 AC9312
09.14~ 1400 D4FC DN51 OE0073 A9614 FC9304 AC9312
11.14~06.17 1400 G4FA PIH15 5DR HB C304J A9614 FS9312 AC9312 JT472K
01.15~06.17 1400 G4FA PIH15 SDN C304J A9614 FS9312 AC9312 JT472K
01.15~06.17 1600 G4FD PIH15 SDN C304J A9614 FS9311 AC9312 JT493

KIA   »   Rondo

04.08~12.12 2000 G4KA HG RHD AUS C304J A0244 PI1023FS9308 AC9312 JT214K
06.06~01.12 2400 G4KE UN06 C304J A0244 PI1023FS9308 AC9312 JT214K
06.06~01.12 2700 G6EA UN06 C304J A0244 FS9308 AC9312

KIA   »   Soluto

01.18~ 1400 G4LC PH718 LHD C901J A9319 FS11004PI1023 AC9312 JT472K
01.18~ 1400 G4LC PH718 RHD C901J A9319 PI1023FS11004 AC9312 JT472K

KIA   »   Sportage

03.06~08.10 2000 D4EA FQ OE9304C0064OE9301 A2517 FC9304 AC9320SETAC9312 JT214K
06.04~09.06 2000 D4EA JE5 C0064 A2517 FC9304 AC9312 JT214K
08.10~04.14 2000 D4HA PSL10 LHD KDOM OE0076 A9323 FC9304 AC9312 JT11001
09.09~04.14 2000 D4HA PSL10 RHD OE0076 A9323 FC9304 AC9312 JT11001
05.93~03.06 2000 FE FM C413JC415J A9402 FS9059PI1012FS9201FS6002U AC9312AC9320SET JT279K
09.06~07.10 2000 G4GC FQ LHD C304J A2517 FS9301PI1023 AC9312 JT214K
03.06~08.10 2000 G4GC FQ04 US C304J A2517 PI1023FS9301 AC9312 JT214K
03.06~04.08 2000 G4GC K1F C304J A2517 FS9301 AC9312 JT214K
08.10~04.14 2000 G4KD PSL10 RHD C304J A9323 PI1023FS9219 AC9312 JT493
08.10~10.15 2000 G4KD SL10 LHD C304J A9323 PI1023FS9219 AC9312 JT493
08.10~04.14 2400 G4KE PSL10 LHD C304J A9323 FS9219PI1023 AC9312 JT493
12.04~09.08 2700 G6BA FQ C304J A2517 FS9301 AC9312
03.06~04.08 2700 G6BA FQ C304J A2517 FS9301 AC9312

KIA   »   Sportage 14

01.14~03.16 2000 D4HA SL14 OE0076 A9323 FC9304 AC9312 JT11001
04.14~03.16 2000 G4KH PSL14 LHD KDOM C304J   FS9320 AC9312 JT11001
01.14~03.16 2000 G4NA PSL14 RHD C304J A9323 PI1023FS11004 AC9312 JT493
01.14~03.16 2400 G4KE SL14 C304J A9323 PI1023FS11004 AC9312 JT493

KIA   »   Stonic

09.20~ 1400 G4LC AU19 C901J A9319 FS11004 AC9312 JT581

MOSKVICH (AZLK)   »   3

11.22~ 1500 HFC4GB2.4E   C225J A0887 FS9644 AC9312 JT571K
