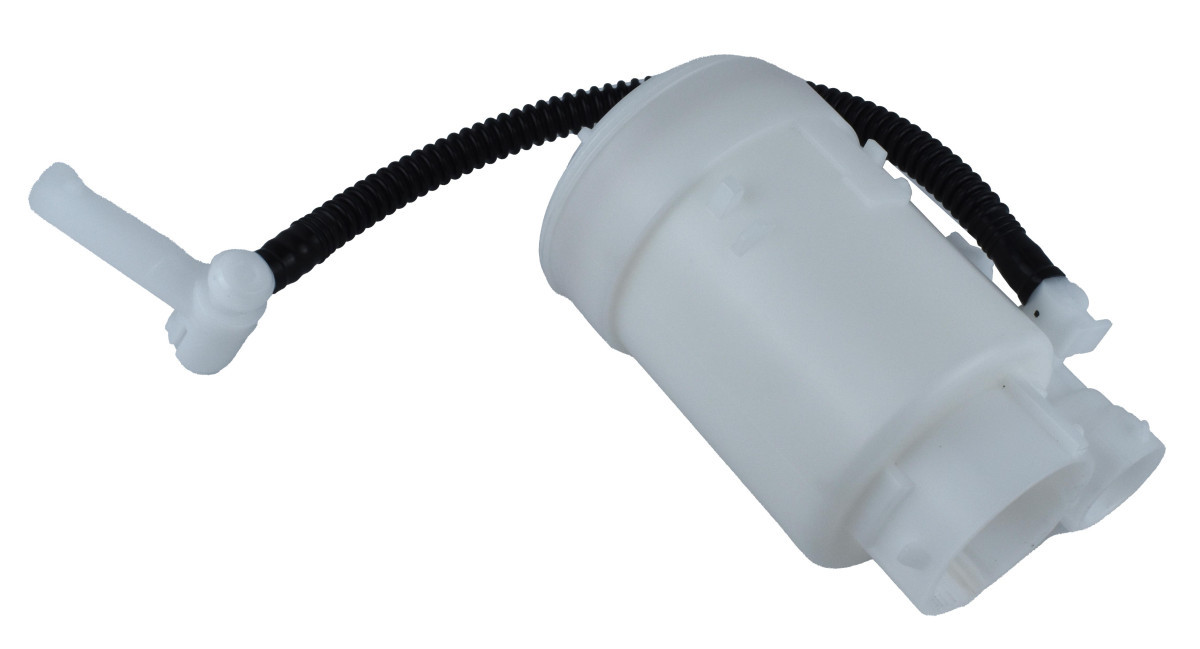

FUEL FILTER (IN-TANK) » FS11001
Feedback information
Specification
Length 1/ Length 2
280/117
Outer Diameter 1/ Outer Diameter 2
69
Inner Diameter[mm]
39.5
Cross reference
HYUNDAI
31112-3R000
KIA
31112-3R000
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
HYUNDAI » Accent 11
HYUNDAI » Avante / Elantra 11
| 01.10~12.13 | 1600 | G4FG | PSD11 LHD | C304J | A9326 | FS9311FR1009FS11001FR1012PI1021 | AC0222 | JT493 |
| 01.10~01.15 | 1600 | G4FG | PSD11 RHD | C304J | A9326 | FS11001FS9311FR1009FR1012PI1021 | AC0222 | JT493 |
HYUNDAI » Azera
HYUNDAI » Grandeur HG
HYUNDAI » i40
| 01.18~ | 1600 | G4FD | PDF18 | C307J | A9323 | FS11001 | AC9312 | |
| 02.11~09.17 | 1600 | G4FD | VF | C307J | A9323 | FS11001 | AC9312 | |
| 02.11~06.15 | 2000 | G4NA | PDF12 SDN LHD | C304J | A9323 | FR1009FR1012PI1021FS11001 | AC9312 | JT493 |
| 02.11~06.15 | 2000 | G4NA | PDF12 WGN LHD | C304J | A9323 | FR1012PI1021FS11001FR1009 | AC9312 | JT493 |
| 02.11~06.15 | 2000 | G4NA | PDF12 WGN RHD | C304J | A9323 | FR1009FR1012PI1021FS11001 | AC9312 | JT493 |
| 01.15~01.18 | 2000 | G4NA | PDF15 SDN LHD | C304J | A9323 | FR1009FR1012PI1021FS11001 | AC9312 | JT493 |
| 02.11~06.15 | 2000 | G4NC | LC81 | C304J | A9323 | FS11001 | AC9312 | JT493 |
HYUNDAI » i45
| 08.10~08.12 | 2000 | G4KD | EC41 | C304J | A9422 | FS11001 | AC9324 | JT493 |
| 08.12~ | 2000 | G4NA | EC41 SG RHD | C304J | A0508 | FS11001 | AC9324 | JT493 |
| 08.10~08.12 | 2400 | G4KE | EC41 | C304J | A9422 | FS11001 | AC9324 | JT493 |
| 01.10~04.14 | 2400 | G4KJ | EC41 ARL | C304J | A9422 | FS11001 | AC9324 | JT493 |
HYUNDAI » Sonata
HYUNDAI » Sonata 10
| 09.09~07.12 | 2000 | G4KD | PGF10 KDOM | C304J | A9422 | FR1009FS11001PI1021FR1012 | AC9324 | JT493 |
| 09.09~04.14 | 2000 | G4KD | YF | C304JC307J | A9422 | FS11001 | AC9324 | JT493 |
| 09.09~04.14 | 2000 | G4NA | GF | C304J | A0508 | FR1009FR1012PI1021FS11001 | AC9324 | JT493 |
| 07.12~01.15 | 2000 | G4ND | PGF10 LHD | C304J | A0508 | FR1012PI1021FS11001FR1009 | AC9324 | JT493 |
| 07.12~04.14 | 2000 | G4NE | YF | C304J | A9422 | PI1021FR1009FS11001FR1012 | AC9324 | JT579 |
| 08.10~08.14 | 2400 | G4KE | PGF10 LHD EU | C304J | A9422 | FR1012PI1021FS11001FR1009 | AC9324 | JT493 |
| 08.10~10.12 | 2400 | G4KE | PGF10 LHD GEN | C304J | A9422 | FS11001FR1009FR1012PI1021 | AC9324 | JT493 |
| 11.10~07.12 | 2400 | G4KK | PGFE11 US | C304J | A9422 | PI1021FS11001FR1009FR1012 | AC9324 | JT579 |
HYUNDAI » Veloster
| 01.12~01.15 | 1600 | G4FD | TC61D | C307J | A9614 | FS11001 | AC9312 | |
| 01.12~01.15 | 1600 | G4FG | TC61C | C304J | A9614 | FS11001 | AC9312 | JT493 |
KIA » Cadenza
KIA » K5
| 05.10~06.13 | 2000 | G4KD | PTF11 | C304J | A9422 | PI1021FS11001FR1009FR1012 | AC9324 | JT493 |
| 05.10~06.13 | 2000 | G4NA | PTF11 | C304J | A0508 | FR1012PI1021FS11001FR1009 | AC9324 | JT493 |
| 01.10~ | 2400 | G4KE | TF | C304J | A9422 | FS11001 | AC9324 | |
| 05.10~06.13 | 2400 | G4KJ | PTF11 | C304J | A9422 | FS11001 | AC9324 | JT493 |
KIA » K7
KIA » Optima
| 03.10~03.13 | 2000 | G4KD | PTF11 LHD | C304J | A9422 | FR1012PI1021FS11001FR1009 | AC9324 | JT493 |
| 01.10~01.13 | 2000 | G4KD | PTF11 RHD | C304J | A9422 | FR1009FS11001PI1021FR1012 | AC9324 | JT493 |
| 08.13~02.16 | 2000 | G4NA | GM41 | C304J | A0508 | PI1021FS11001FR1009FR1012 | AC9324 | JT493 |
| 08.13~02.16 | 2000 | G4NA | GN41 | C304J | A0508 | FR1009FR1012PI1021FS11001 | AC9324 | JT493 |
| 08.13~02.16 | 2000 | G4ND | GN | C304J | A0508 | FR1009FR1012FS11001PI1021 | AC9324 | JT493 |
| 02.12~08.13 | 2000 | G4ND | PTF11 RHD | C304J | A0508 | FS11001FR1009PI1021FR1012 | AC9324 | JT493 |
| 03.10~03.14 | 2000 | G4NE | PTFE11 | C304J | A9422 | PI1021FS11001FR1009FR1012 | AC9324 | JT579 |
| 03.14~03.16 | 2000 | G4NE | PTFE14 | C304J | A9422 | FR1009FR1012PI1021FS11001 | AC9324 | |
| 03.10~09.13 | 2400 | G4KE | PTF11 LHD | C304J | A9422 | FR1012PI1021FS11001FR1009 | AC9324 | JT493 |
| 03.10~09.13 | 2400 | G4KE | PTF11 RHD | C304J | A9422 | FR1009FR1012PI1021FS11001 | AC9324 | JT493 |
| 04.13~03.16 | 2400 | G4KE | PTF14 LHD | C304J | A9422 | FR1012PI1021FS11001FR1009 | AC9324 | JT493 |
| 04.13~03.16 | 2400 | G4KE | PTF14 RHD | C304J | A9422 | FS11001FR1012PI1021FR1009 | AC9324 | JT493 |
KIA » Optima (USA)
| 04.13~02.16 | 2400 | G4KK | PTFE14 | C304J | A9422 | PI1021FS11001FR1009FR1012 | AC9324 | JT579 |
| 03.10~09.13 | 2400 | G4KK | TF | C304J | A9422 | PI1021FR1009FS11001FR1012 | AC9324 | JT579 |
