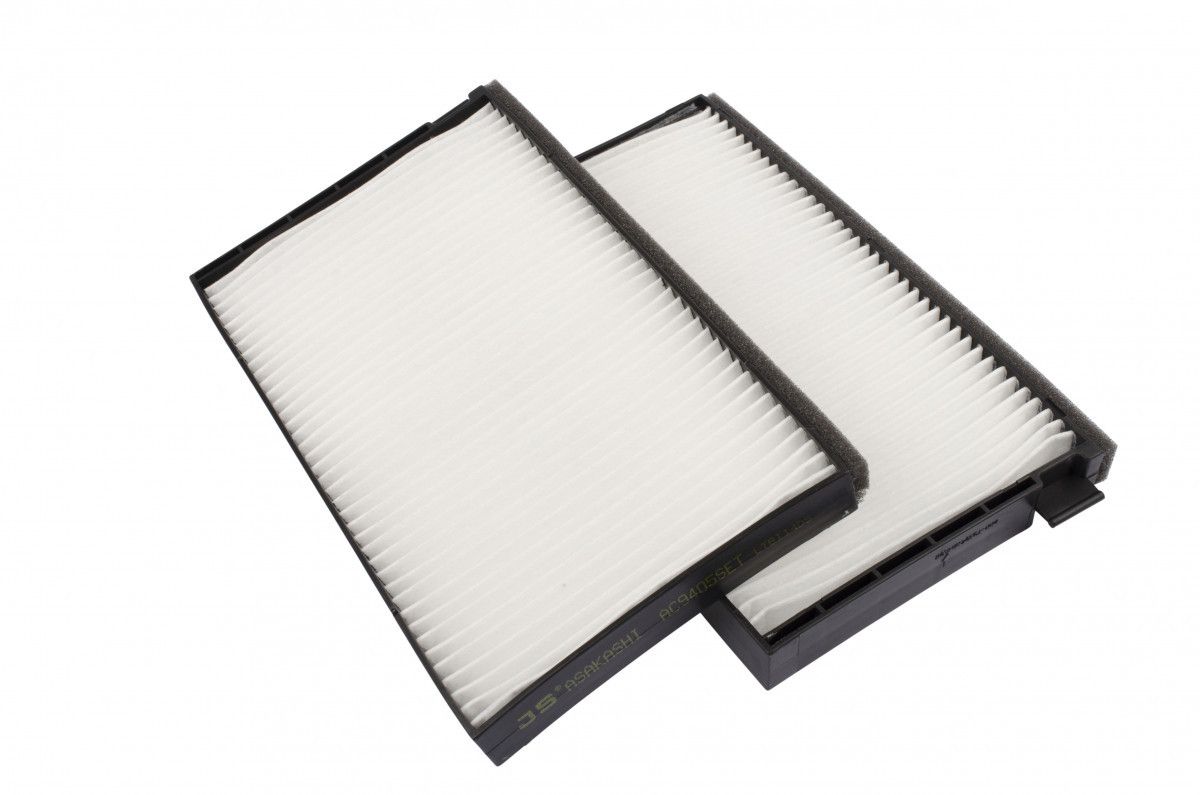

CABIN FILTER » AC9405SET
Feedback information
Specification
Length
209/201
Width
122/117
Thickness
20
Structure Material
Plastic
Media Material
Synthetic Fiber
Length2
209/201
Width2
122/117
Thickness2
20
Notes
HYUND - H-1 Bus (KMF) - 2.5 CRDi-2008- HYUND - H-1 Box - 2.5 CRDi-2007-
Variation
Cross reference
HYUNDAI
11Q6-90510
HYUNDAI
97617-4H000
HYUNDAI
97617-4H900
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
HYUNDAI » Grand Starex
| 05.07~ | 2400 | G4KG | TQ07 | C304J | A9613 | FS9327FS9308 | AC9405SET | |
| 05.07~08.15 | 2500 | D4CB A2 | TQ07 | C109J | A9613 | FC9304 | AC9405SET | JT305K |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 11P | C109J | A9613 | FC9304 | AC9405SET | JT305K |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P LHD | C109J | A9613 | FC9304 | AC9405SET | JT305K |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P RHD | C109J | A9613 | FC9304 | AC9405SET | JT305K |
HYUNDAI » H1 Starex
| 05.07~08.15 | 2400 | G4KG | VAN LONG - 3P LHD | C304J | A9613 | PI1023FS9308 | AC9405SET | |
| 05.07~08.15 | 2400 | G4KG | VAN LONG - 3P RHD | C304J | A9613 | PI1023FS9308 | AC9405SET | |
| 08.15~05.18 | 2500 | D4CB A2 | VAN LONG - 3P | C109J | A9613 | FC9304 | AC9405SET | JT305K |
| 05.18~ | 2500 | D4CB A2 | VAN LONG - 3P | C109J | A9613 | FC9304 | AC9405SET | |
| 12.17~ | 2500 | D4CB A2 | WAGON LONG - 12P | C109J | A9613 | FC9304 | AC9405SET | JT305K |
| 12.17~ | 2500 | D4CB A2 | WAGON LONG - 8P | C109J | A9613 | FC9304 | AC9405SET |
HYUNDAI » H1 Starex [H1 Cargo] 07
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P LHD | C304J | A9613 | FS9308PI1023 | AC9405SET | JT436K |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P RHD | C304J | A9613 | PI1023FS9308 | AC9405SET | JT436K |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 9P LHD | C304J | A9613 | PI1023FS9308 | AC9405SET | JT436K |
| 05.07~08.15 | 2500 | 4D56 | WAGON LONG - 12P | C109J | A9613 | FC9304 | AC9405SET | |
| 05.07~08.15 | 2500 | 4D56 | WAGON LONG - 9P | C109J | A9613 | FC9304 | AC9405SET | |
| 05.07~08.15 | 2500 | D4BH (4D56) | VAN LONG - 3P | C109J | A9613 | FC9304 | AC9405SET | |
| 05.07~08.15 | 2500 | D4CB A2 | VAN LONG - 3P | C109J | A9613 | FC9304SF1101 | AC9405SET | JT305K |
| 08.15~05.18 | 2500 | D4CB A2 | VAN LONG - 6P | C109J | A9613 | FC9304 | AC9405SET | JT305K |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 12P | C109J | A9613 | FC9304 | AC9405SET | JT305K |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 8P | C109J | A9613 | FC9304SF1101 | AC9405SET | JT305K |
| 08.15~05.18 | 2500 | D4CB A2 | WAGON LONG - 8P | C109J | A9613 | FC9304 | AC9405SET | JT305K |
