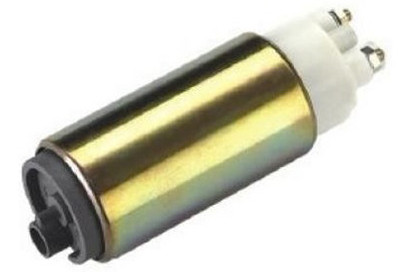

IN-TANK FUEL PUMP » PI1019
Feedback information
Specification
Length 1/ Length 2
115
Diameter 1[mm]
38
Diameter 2[mm]
32
Contact Group(mm)
2x6mm
Pressure [Bar]
3
Flow [L/h]
110
Cross reference
MITSUBISHI
1760A030
MITSUBISHI
MR968071
SUZUKI
15100-50G00
SUZUKI
15100-52D10
SUZUKI
15100-52D60
SUZUKI
15100-57B20
SUZUKI
15100-58B00
SUZUKI
15100-60G20
SUZUKI
15100-61A10
SUZUKI
15100-61AA0
SUZUKI
15100-65D00
SUZUKI
15100-65D01
SUZUKI
15100-65D02
SUZUKI
15100-65D22
SUZUKI
15100-65D31
SUZUKI
15100-77E00
| Year | ENG VOL | ENG NO | BODY NO |  OIL |
 AIR |
 FUEL |
 CABIN |
 TRANS |
|---|
MAZDA » Proceed Levante
| 01.95~10.96 | 2000 | H20A | TJ11W | C527J | A956J | PI1019FS6001U | ||
| 11.97~09.99 | 2000 | J20A | TJ52W | C933J | A956J | PI1019FS9090 | AC981SET | JT279K |
MITSUBISHI » Airtrek
| 05.02~09.05 | 2000 | 4G63-T | CU2W | C304J | A3011 | FS6507PI1019 | JT215K | |
| 03.01~10.05 | 2400 | 4G64 | CU4W | C304J | A3011 | FS6507PI1019 | JT206K |
MITSUBISHI » Airtrek/Outlander
MITSUBISHI » Outlander
SUZUKI » Escudo
| 11.97~11.00 | 1600 | G16A | TA02W | C933J | A956J | FS9090PI1019 | AC981SET | JT506K |
| 11.97~04.00 | 1600 | G16A | TD02W | C933J | A956J | FS9090PI1019 | AC981SET | |
| 11.94~12.96 | 2000 | H20A | TA11W | C527J | A956J | PI1019FS6001U | ||
| 11.94~10.96 | 2000 | H20A | TD11W | C527J | A956J | FS6001UPI1019 | ||
| 10.96~11.97 | 2000 | J20A | TA51W | C933J | A956J | PI1019FS6001U | ||
| 11.97~09.02 | 2000 | J20A | TA52W | C933J | A956J | PI1019FS9090 | AC981SET | |
| 10.96~01.98 | 2000 | J20A | TD51W | C933J | A956J | FS6001UPI1019 | ||
| 11.97~04.00 | 2000 | J20A | TD52W | C933J | A956J | PI1019FS9090 | AC981SET | |
| 10.96~02.98 | 2500 | H25A | TD61W | C527J | A956J | FS6001UPI1019 | ||
| 11.00~05.05 | 2700 | H27A | TX92W | C527J | A956J | PI1019FS9102 | AC981SET | JT437K |
SUZUKI » Grand Vitara
| 01.98~09.05 | 1600 | G16B | TD02V | C933J | A956J | FS9090PI1019 | AC984J | JT279K |
| 01.98~12.05 | 2500 | H25A | TD62V RHD | C527J | A956J | FS9090PI1019 | AC981SET | JT279K |
SUZUKI » Grand Vitara XL-7
| 05.01~08.03 | 2700 | H27A | TX92V LHD | C527J | A956J | PI1019FS9102 | AC984JAC981SET | |
| 08.03~01.07 | 2700 | H27A | TX92V LHD | C527J | A992J | PI1019FS9102 | AC984J | JT437K |
