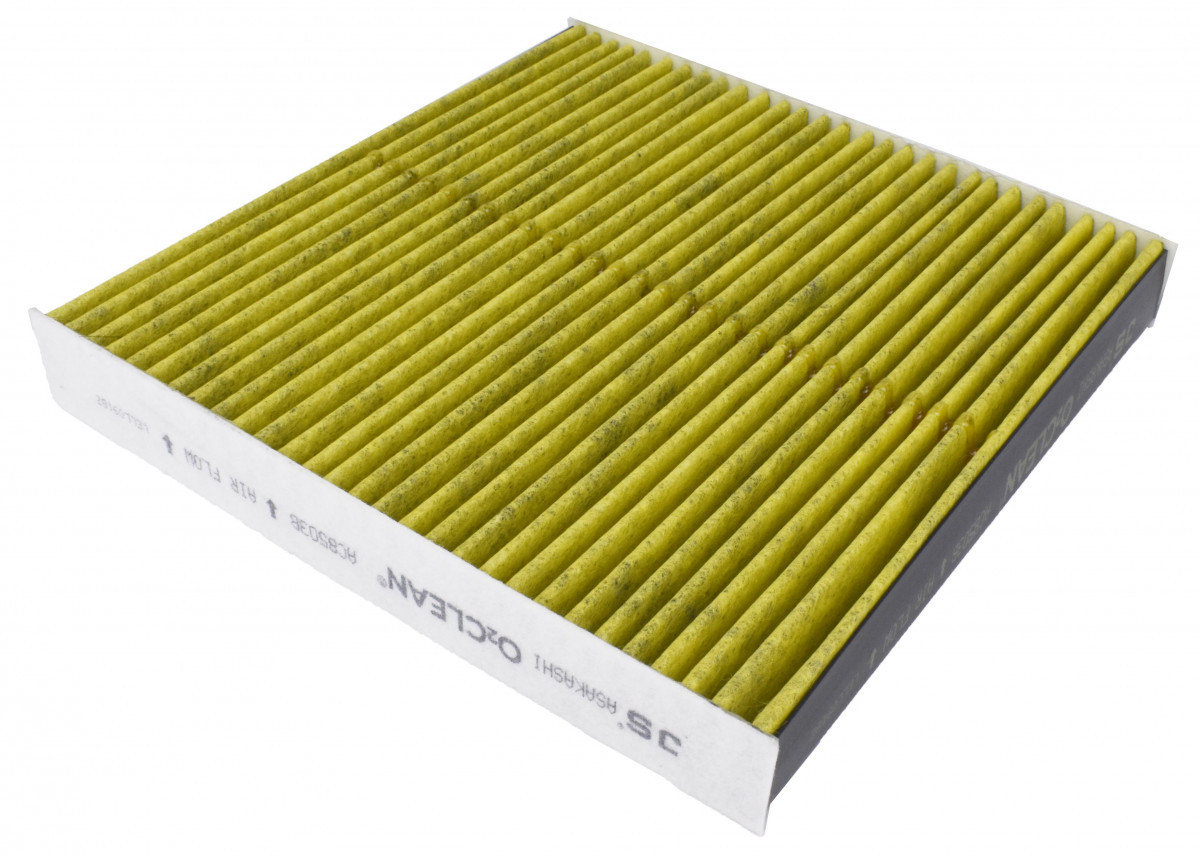

CABIN FILTER BIOFUNCTIONAL » AC8503B

Feedback information
AC8503B

Specification

Length
210
Width
205
Thickness
30
Structure Material
PPanel
Medium Material
BIO

Variation

AC8503[JS] AC8503C[JS]

Cross reference

HONDA
08R79-TF0-700A
HONDA
80291-T5R-A01
HONDA
80291-T5R-P01
HONDA
80291-T7M-H01
HONDA
80291-T9A-T01
HONDA
80291-TF0-003
HONDA
80291-TF0-941
HONDA
80291-TF0-E01
HONDA
80291-TF0-J01
HONDA
80291-TF0-U01
HONDA
80291-TF3-E01
HONDA
80291-TME-T51
HONDA
80292-T5R-A01
HONDA
80292-TBA-A11
HONDA
80292-TF0-G01
HONDA
80292-TG0-Q02
HONDA
80292-TG0-T01
HONDA
80292-TGL-E01
HONDA
80292-TJA-H01
HONDA
80292-TJA-H010-M1
HONDA
80292-TZA-J01
Year ENG VOL ENG NO BODY NO OIL AIR FUEL CABIN TRANS

ACURA   »   CDX

05.16~ 1500 L15B9 RH4 C809J A2820   AC8503C JT383JT663
04.18~ 2000 LFA11   C225J     AC8503

ACURA   »   Integra

06.22~ 1500 L15CA DE4 C809J A2836   AC8503 JT584KJT381K
01.23~ 2000 K20C DE5 C809J     AC8503

ACURA   »   MDX

12.21~ 3000 J30A YD8 C809J     AC8503C JT381K
10.21~ 3500 J35Y5 YD9 C809J A2840   AC8503C JT381K
10.21~ 3500 J35Y5 YE1 C809J A2840   AC8503C JT381K

ACURA   »   RDX

05.18~ 2000 K20C4 TC2 C809J A2827   AC8503 JT381K

ACURA   »   TLX

08.20~ 2000 K20C6 UB5,UB6 C809J A2815   AC8503 JT381K
06.21~ 3000 J30AC UB7 C809J     AC8503 JT381K

HONDA   »   Accord

09.22~ 1500 L15BE CY1 C809J A2836   AC8503 JT584KJT381K
09.22~ 2000 LFC5 CY2 US C809J A2838   AC8503

HONDA   »   Amaze

02.18~ 1200 L12B4 DF5 C809J A8528   AC8503 JT565JT381K

HONDA   »   Ballade

09.11~01.14 1500 L15A7 GM2 C809J A8503 FS7308 AC8503C
01.14~06.17 1500 L15Z1 GM6 C809J A8528 FS7318 AC8503
06.20~ 1500 L15ZD GN2 C809J A28013 FS7318 AC8503 JT381KJT565

HONDA   »   BR-V

02.16~ 1500 L15Z1 DG1 C809J A8528   AC8503 JT381KJT565
12.21~ 1500 L15ZF DG3 C809J A28013   AC8503 JT381KJT565

HONDA   »   Brio

05.18~ 1200 L12B3 DD1 C809J A8503   AC8503 JT381KJT565

HONDA   »   City

09.08~09.13 1300 L13Z1 GM1 C809J A8503 FS7308 AC8503 JT458JT495
10.19~ 1500 L15# GN2 RHD C809J A28013 FS7318 AC8503 JT381KJT565
10.19~ 1500 L15# GN2 VTN C809J A28013 FS7318 AC8503 JT565JT381K
12.16~09.20 1500 L15A GM6 C809J A8528 FS7318 AC8503 JT565JT381K
09.08~09.11 1500 L15A7 GM2 LHD C809J A8503 FS7308 AC8503 JT495JT458
09.11~01.14 1500 L15A7 GM2 LHD C809J A8503 FS7308 AC8503 JT458JT495
09.08~09.11 1500 L15A7 GM2 RHD C809J A8503 FS7308 AC8503AC8503C JT458JT495
09.11~01.14 1500 L15A7 GM2 RHD C809J A8503 FS7308 AC8503AC8503C JT458JT495
01.14~01.17 1500 L15Z1 GM6 LHD C809J A8528 FS7318 AC8503 JT565JT381K
01.14~01.17 1500 L15Z1 GM6 RHD C809J A8528A2823 FS7318 AC8503CAC8503 JT565JT381K
12.16~09.20 1500 L15Z1 GM6 RHD C809J A2823A8528 FS7318 AC8503CAC8503 JT565JT381K
12.16~09.20 1500 L15Z1/A7 GM6 LHD C809J A2823A8528 FS7318 AC8503CAC8503 JT565JT381K
01.17~ 1500 LEB-H1 GM7 C809J A28013 FS7317 AC8503

HONDA   »   Civic

05.17~ 1000 P10A2 FK6 C809J A2835   AC8503 JT583K
05.16~ 1500 L15B FC1 JPN C809J A2806   AC8503C JT583KJT381K
05.16~08.19 1500 L15B FC1 LHD C809J A2806   AC8503 JT583KJT381K
05.16~08.19 1500 L15B FC1 RHD C809J A2806   AC8503 JT583KJT381K
08.19~03.21 1500 L15B FC1 RHD C809J A2806   AC8503 JT583KJT381K
05.16~03.21 1500 L15B7 FK7 RHD C809J A2806   AC8503 JT583KJT381K
03.21~ 1500 L15BG FE1 C809J A2836   AC8503 JT381KJT565
05.16~03.21 1500 L15BY FK4 RHD C809J A2806   AC8503 JT583KJT381K
01.17~03.21 1500 L15C FK7 JPN C809J A2806   AC8503 JT583K
03.16~07.19 1500 L15C FK7 US C809J A2806   AC8503 JT583KJT381K
03.21~ 1500 L15C FL1 C809J A2836   AC8503 JT583KJT381K
09.21~ 1500 L15C8 FE1 SDN CHINA C809J A2836   AC8503 JT381KJT584K
05.17~03.21 1600 N16A1 FC8 C0001 A2837 FS0103 AC8503
01.18~ 1600 N16A1 FK9 C0001 A2837 FS0103 AC8503
05.16~03.21 1600 R16B FC5 C809J A2807   AC8503 JT565JT381K
09.15~03.21 1600 R16B1 FC5 LHD C809J A2807   AC8503 JT565JT381K
09.15~03.21 1600 R16B1 FC5 LHD C809J A2807   AC8503 JT565JT381K
05.16~03.21 1800 R18Z1 FC2 C809J A2807   AC8503
05.16~08.18 1800 R18Z1 FC6 C809J A2807   AC8503
08.18~03.21 1800 R18Z1 FC6 RHD SDN C809J A2807   AC8503 JT381KJT565
01.17~03.21 1800 R18Z1 FK5 C809J A2807   AC8503 JT565JT381K
09.15~09.18 2000 K20C2 FC2 GL C809J A2807   AC8503C JT381KJT565
03.21~ 2000 K20C2 FL2 C809J A2807   AC8503 JT381KJT565
07.22~ 2000 LFC1 FL4 C809J A2838   AC8503 JT627

HONDA   »   Civic (USA)

09.15~09.18 1500 L15B FC1 C809J A2806   AC8503 JT583KJT381K
09.18~06.21 1500 L15B FC1 C809J A2806   AC8503 JT583KJT381K
11.20~ 1500 L15C FE1 C809J A2836   AC8503 JT381KJT584K
11.20~ 1500 L15C FL1 C809J A2836   AC8503 JT584KJT381K
11.20~ 2000 K20C FE2 C809J A2807   AC8503 JT381KJT565
11.20~ 2000 K20C FL2 C809J A2807   AC8503 JT381KJT565
09.15~09.18 2000 K20C2 FC2 US C809J A2807   AC8503 JT381KJT565
09.18~06.21 2000 K20C2 FC2 US C809J A2807   AC8503 JT565JT381K

HONDA   »   Civic Type R

06.17~07.21 2000 K20C FK8 JPN C809J A2825   AC8503
01.17~01.20 2000 K20C FK8 RHD C809J A2825   AC8503
01.20~ 2000 K20C FK8 RHD C809J A2825   AC8503
06.22~ 2000 K20C1 FL5 C809J     AC8503

HONDA   »   Clarity

03.16~09.21   MCF4 ZC4       AC8503C
07.18~ 1500 LEB ZC5 C809J     AC8503C JT627

HONDA   »   CR-V

08.18~ 1500 L15B RW1 JPN C809J A2806 FS7321 AC8503C JT381KJT584K
08.18~ 1500 L15B RW2 JPN C809J A2806 FS7321 AC8503C JT381KJT584K
10.16~09.19 1500 L15B# RW1 VTN C809J A2806   AC8503 JT583KJT381K
10.16~ 1500 L15BG HRW18 LHD C809J A2806 FS7321 AC8503 JT381KJT583K
09.19~03.22 1500 L15BL RW2 KH LHD C809J A2806 FS7321 AC8503 JT584KJT381K
10.16~09.19 1500 L15BY HRW18 RHD C809J A2806 FS7321 AC8503 JT583KJT381K
09.19~ 1500 L15BY HRW18 RHD C809J A2806 FS7321 AC8503 JT583KJT381K
10.16~ 1500 L15BY HRW28 RHD C809J A2806 FS7321 AC8503 JT583KJT381K
09.22~ 1500 L15BZ RS4 CH C809J A2836 FS7321 AC8503 JT381KJT584K
10.16~ 1500 L15Y RW1 RHD C809J A2806 FS7321 AC8503 JT381KJT583K
12.18~ 2000 LFB RT5 JPN C809J A2817 FS7321 AC8503 JT627
12.18~ 2000 LFB RT6 C809J A2817 FS7321 AC8503 JT627
10.16~09.19 2000 R20A HRW38 RHD C809J A2824 FS7321 AC8503 JT583KJT381K
09.19~ 2000 R20A9 HRW38 RHD C809J A2824 FS7321 AC8503 JT583KJT381K
08.17~12.20 2000 R20A9 RW4 LHD C809J A2824 FS7321 AC8503 JT583KJT381K
10.16~ 2400 K24W9 RW5 C809J A2824 FS7321 AC8503 JT583KJT381K
10.16~ 2400 K24W9 RW6 C809J A2824 FS7321 AC8503 JT381KJT583K
01.16~ 2400 K24Z RW3 C809J A2824 FS7321 AC8503 JT381KJT583K

HONDA   »   CR-V (USA)

10.16~09.19 1500 L15B7 RW1 KA C809J A2806   AC8503 JT583KJT381K
09.19~02.23 1500 L15B7 RW1 KK C809J A2806 FS7321 AC8503 JT381KJT583K
09.19~ 1500 L15B7 RW2 US/CND C809J A2806   AC8503 JT381KJT584K
09.22~ 1500 L15BE RS4 C809J A2836   AC8503 JT381KJT584K
09.22~ 2000 LFC3 RS5 C809J A2838   AC8503
09.22~ 2000 LFC3 RS6 C809J A2838   AC8503

HONDA   »   CR-Z

02.10~09.12 1500 LEA-MF6 ZF1 C809J A893J   AC8503 JT492
09.12~01.17 1500 LEA-MF6 ZF2 C809J A893J   AC8503 JT495JT492

HONDA   »   E Advance

01.20~   MCF5 ZC7       AC8503

HONDA   »   E:NY1

03.23~   MCF62 RS1       AC8503

HONDA   »   Elevate

06.23~ 1500 L15ZD DG5 C809J A28013 FS7318 AC8503 JT381KJT565

HONDA   »   Fit

10.07~08.13 1300 L13A GE6 C809J A8503 FS7304FS7304A AC8503 JT626JT383
10.07~08.13 1300 L13A GE7 C809J A8503 FS7304AFS7304 AC8503 JT495JT458
09.13~01.20 1300 L13B GK3 JPN C809J A28013 FS7304FS7304A AC8503C JT381KJT565
09.13~06.17 1300 L13B GK3 RHD C809J A28013 FS7317 AC8503C JT565JT381K
09.13~01.20 1300 L13B GK4 C809J A28013   AC8503 JT565JT381K
10.19~ 1300 L13B GR1 C809J A28013 FS7317 AC8503 JT381KJT565
10.19~ 1300 L13B GR2 C809J A28013   AC8503 JT565JT381K
10.19~ 1300 L13B GR5 C809J A28013   AC8503 JT381KJT565
10.19~ 1300 L13B GR7 C809J A28013   AC8503 JT381KJT565
10.10~09.13 1300 LDA GP1 C809J A892J FS7322FS7304AFS7304 AC8503 JT495JT492
10.07~03.14 1400 L13Z GE6 LHD C809J A8503 PI1018FS7304FS7304A AC8503 JT458JT495
10.07~08.13 1500 L15A GE8 C809J A8503 FS7304FS7304A AC8503 JT383JT626
10.07~08.13 1500 L15A GE9 C809J A8503 FS7304AFS7304 AC8503 JT458
09.13~01.20 1500 L15B GK5 JPN C809J A28013 FS7317 AC8503CAC8503 JT565JT381K
01.14~06.17 1500 L15B GK5 US/CND LHD C809J A28013   AC8503 JT381KJT565
09.13~01.20 1500 L15B GK6 C809J A28013A2823   AC8503C JT381KJT565
10.19~ 1500 L15Z GS4 RHD C809J A28013 FS7317 AC8503 JT565JT381K
05.12~09.13 1500 LEA-MF6 GP4 C809J A892JA28013 FS7322 AC8503AC8503C JT492
10.19~ 1500 LEB GR3 JPN C809J A2834 FS7317 AC8503
10.19~ 1500 LEB GR3 RHD C809J A2834 FS7317 AC8503
10.19~ 1500 LEB GR4 JPN C809J A2834 FS7317 AC8503
10.19~ 1500 LEB GR6 JPN C809J A2834 FS7317 AC8503
10.19~ 1500 LEB GR8 JPN C809J A2834 FS7317 AC8503
09.13~01.20 1500 LEB-H1 GP5 C809J A28013 FS7317 AC8503C
09.13~01.20 1500 LEB-H1 GP6 C809J A28013   AC8503C

HONDA   »   Fit Shuttle

06.11~03.15 1300 LDA GP2 C809J A892J FS7304AFS7304 AC8503 JT492
06.11~03.15 1500 L15A GG7 C809J A8503 FS7322 AC8503 JT626JT383

HONDA   »   Freed

05.08~08.16 1500 L15A GB3 JPN C809J A8503 FS7306AFS28002 AC8503 JT458
05.08~08.16 1500 L15A GB4 C809J A8503   AC8503 JT458JT495
05.08~08.16 1500 L15A7 GB3 SG C809J A8503 FS28002FS7306A AC8503 JT495JT458
09.16~ 1500 L15B GB5 JPN C809J A28013   AC8503CAC8503 JT381KJT565
08.19~ 1500 L15B GB5 RHD C809J A28013   AC8503 JT565JT381K
09.16~ 1500 L15B GB6 C809J A28013   AC8503C JT381KJT565
10.11~09.16 1500 LEA-MF6 GP3 C809J A892J FS28002FS7306A AC8503 JT492
09.16~ 1500 LEB GB8 C809J A28013   AC8503C
09.16~ 1500 LEB-H1 GB7 C809J A28013   AC8503C

HONDA   »   Freed Spike

10.11~09.16 1500 LEA-MF6 GP3 C809J A892J FS7306AFS28002 AC8503 JT492

HONDA   »   Grace

09.15~08.20 1500 L15B GM6 C809J A28013 FS7317 AC8503CAC8503 JT565JT381K
09.15~07.20 1500 L15B GM9 C809J A28013   AC8503CAC8503 JT381KJT565
12.14~07.20 1500 LEB-H1 GM4 C809J A28013 FS7317 AC8503AC8503C
12.14~07.20 1500 LEB-H1 GM5 C809J A28013   AC8503AC8503C

HONDA   »   HR-V

01.15~01.18 1500 L15 JHMRU1 RHD C809J A28013 FS7317 AC8503 JT565JT381K
01.18~ 1500 L15 JHMRU1 RHD C809J A28013 FS7317 AC8503 JT565JT381K
11.14~09.18 1500 L15 RU1(LHD) C809J A28013   AC8503 JT565JT381K
09.18~ 1500 L15BY JHMRU1 LHD C809J A2820   AC8503
01.15~01.18 1500 L15Z RU1 RHD C809J A28013A8528 FS7317 AC8503AC8503C JT381KJT565
01.18~08.21 1500 L15Z RU1 RHD C809J A8528 FS7317 AC8503 JT565JT381K
05.22~ 1500 L15ZB RV3 RHD SG C809J A28013   AC8503 JT381KJT565
09.21~ 1500 LEC3 RV5 C809J A2834   AC8503
05.15~ 1600 N16A3 RU8 RHD C0001 A2812 FS0103 AC8503CAC8503
08.18~ 1800 R18Z7 RU5 LHD PR C809J A2808   AC8503 JT381KJT565
08.18~ 1800 R18Z9 RU5 LHD C809J A2808   AC8503 JT565JT381K
11.14~09.18 1800 R18Z9 RU6 LHD US C809J A2808   AC8503 JT381KJT565
09.18~05.22 1800 R18Z9 RU6 LHD US C809J A2808   AC8503 JT381KJT565
08.18~ 1800 R18ZF RU5 C809J A2808   AC8503 JT381KJT565
01.14~09.18 1800 R18ZF RU5 RHD C809J A2808   AC8503 JT381KJT565
11.14~09.18 1800 R18ZG RU5 LHD US C809J A2808   AC8503 JT381KJT565
01.14~09.18 1800 R18ZG RU5 RHD C809J A2808   AC8503 JT565JT381K
09.18~05.22 1800 R18ZG RU5 RHD C809J A2808   AC8503 JT565JT381K
08.22~ 2000 K20C2 RZ1 C809J A2807   AC8503 JT565JT381K
08.22~ 2000 K20C2 RZ2 C809J A2807   AC8503 JT381KJT565

HONDA   »   Insight

02.09~03.14 1300 LDA ZE2 JPN C809J A892J   AC8503 JT492
01.10~03.14 1300 LDA3 ZE2 C809J A892J   AC8503 JT492
04.09~ 1300 LDA3 ZE28 C809J A2833   AC8503C JT627
11.11~04.14 1500 LEA ZE3 C809J A892J   AC8503 JT492
01.18~ 1500 LEB ZE4 C809J A2833   AC8503C JT627

HONDA   »   Jazz

11.08~09.15 1200 L12B GE1 C809J A8503   AC8503
07.08~10.13 1200 L12B1 GG1 C809J A8503 FS7304FS7304A AC8503
01.14~02.20 1200 L12B4 GK7 RHD C809J A8528 FS7317 AC8503 JT565JT381K
12.14~09.17 1300 L13B GK3 C809J A28013 FS7317 AC8503C JT565JT381K
09.17~02.20 1300 L13B GK3 C809J A28013 FS7317 AC8503 JT565JT381K
01.14~02.20 1300 L13B GK3 LHD C809J A28013 FS7317 AC8503 JT565JT381K
01.08~04.11 1300 L13Z GE6 C809J A8503 FS7304AFS7304 AC8503 JT495JT458
04.11~09.15 1300 L13Z1 GE6 C809J A8503 FS7304FS7304API1018 AC8503 JT458JT495
07.08~04.11 1300 L13Z1 GG6 C809J A8503 FS7304AFS7304 AC8503
04.11~10.13 1300 L13Z1 GG6 C809J A8503 FS7304FS7304A AC8503 JT626JT458
01.11~01.14 1300 LDA3 GP1 C809J A892J FS7304FS7304A AC8503CAC8503 JT492JT495
01.14~ 1500 L15A GK6 C809J A28013 FS7317 AC8503 JT565
07.08~04.11 1500 L15A7 GE8 C809J A8503 FS7304AFS7304 AC8503 JT458JT495
04.11~08.15 1500 L15A7 GE8 C809J A8503 FS7304AFS7304FS7308PI1018 AC8503 JT495JT458
01.12~03.14 1500 L15A7 GE9 C809J A8503 FS7308 AC8503
01.14~02.20 1500 L15B GK5 SG C809J A28013 FS7317 AC8503C JT565
01.14~02.20 1500 L15Z2 GK5 GR C809J A8528 FS7317 AC8503 JT565JT381K
01.14~02.20 1500 L15Z2 MAKGK5 SA C809J A8528 FS7317 AC8503 JT565JT381K
01.15~ 1500 LEB-H1 GP# C809J A28013 FS7317 AC8503
02.20~ 1500 LEB8 GR3 C809J A2834   AC8503

HONDA   »   Odyssey

04.17~ 3500 J35Y7 RL6 US C809J A2815   AC8503 JT381K

HONDA   »   Shuttle

05.15~ 1500 L15B GK8 C809J A28013 FS7322 AC8503 JT381KJT565
05.15~ 1500 L15B GK9 C809J A28013   AC8503C JT565JT381K
05.15~ 1500 LEB GP7 C809J A28013 FS7317 AC8503C
05.15~ 1500 LEB GP8 C809J A28013   AC8503C

HONDA   »   Stepwgn

04.15~10.21 1500 L15B RP1 C809J A2816   AC8503C JT381KJT584K
04.15~10.21 1500 L15B RP2 C809J A2816   AC8503C JT381KJT584K
05.22~ 1500 L15C RP6 C809J A2839   AC8503 JT381KJT584K
05.22~ 1500 L15C RP7 C809J A2839   AC8503 JT584KJT381K
05.22~ 2000 LFA RP8 C809J A2818   AC8503 JT627

HONDA   »   Stepwgn Spada

04.15~10.21 1500 L15B RP3 JPN C809J A2816   AC8503C JT381KJT584K
04.15~10.21 1500 L15B RP3 RHD C809J A2816   AC8503 JT584KJT381K
04.15~10.21 1500 L15B RP4 C809J A2816   AC8503C JT381KJT584K
09.17~10.21 2000 LFA RP5 C809J A2818   AC8503C JT627

HONDA   »   UR-V

06.20~05.23 2000 K20C3 TG6 C809J A2827 FS7321 AC8503

HONDA   »   Vezel

03.13~03.21 1500 L15B RU1 C809J A28013 FS7317 AC8503C JT565JT383
03.13~03.21 1500 L15B RU2 C809J A28013 FS7317 AC8503C JT565
11.22~ 1500 L15CC RV3 LHD C809J A28013   AC8503 JT381KJT565
04.21~ 1500 L15Z RV3 RHD C809J A28013   AC8503 JT565JT381K
04.21~ 1500 L15Z RV4 C809J A28013   AC8503 JT381KJT565
03.13~03.21 1500 LEB-H1 RU3 C809J A28013 FS7317 AC8503C
03.13~03.21 1500 LEB-H1 RU4 C809J A28013 FS7317 AC8503C
04.21~ 1500 LEC RV5 C809J A2834   AC8503
04.21~ 1500 LEC RV6 C809J A2834   AC8503

HONDA   »   WR-V

08.19~ 1200 L12B4 GL1 C809J A2823 FS7317 AC8503
01.17~ 1500 L15A   C809J A2823 FS7317 AC8503

HONDA   »   ZR-V

04.23~ 1500 L15BY RZ3 ME C809J A2836 FS7321 AC8503 JT381KJT583K
07.22~ 1500 L15CD RZ3 CH C809J A2836 FS7321 AC8503 JT584KJT381K
04.23~ 2000 LFB17 RZ4 CH C809J A2838 FS7321 AC8503 JT627
04.23~ 2000 LFCH4 RZ4 JP C809J A2838 FS7321 AC8503 JT627
04.23~ 2000 LFCH4 RZ6 JP C809J A2838 FS7321 AC8503 JT627

Copyright © 2024

Asakashi Research Laboratories (Japan)

Exemption from liability: the catalog data is advisory and can be used for reference only

EN JA ES VI MS IN
EN JA ES VI MS IN
Back
